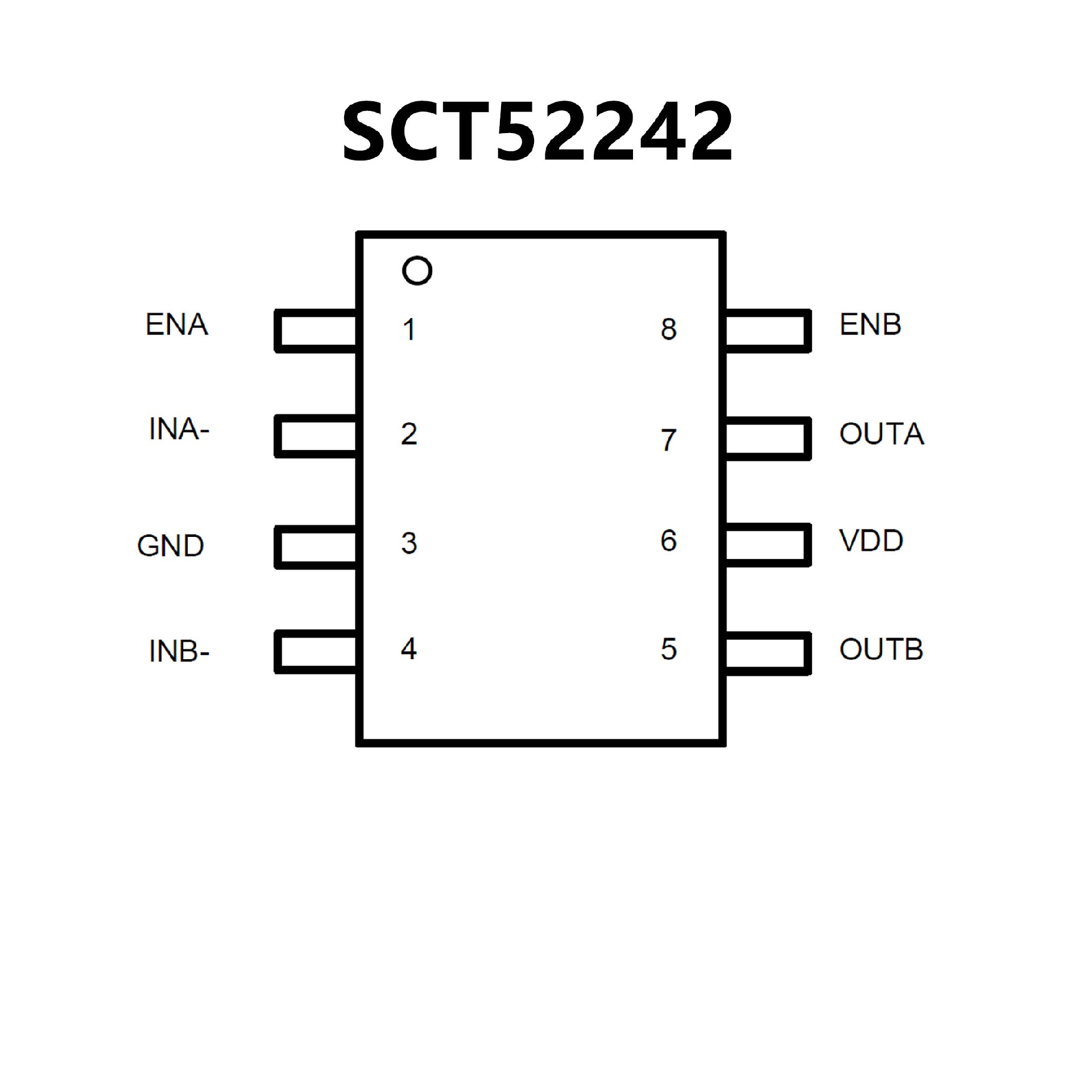

SCT52242.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak SinkCurrent
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

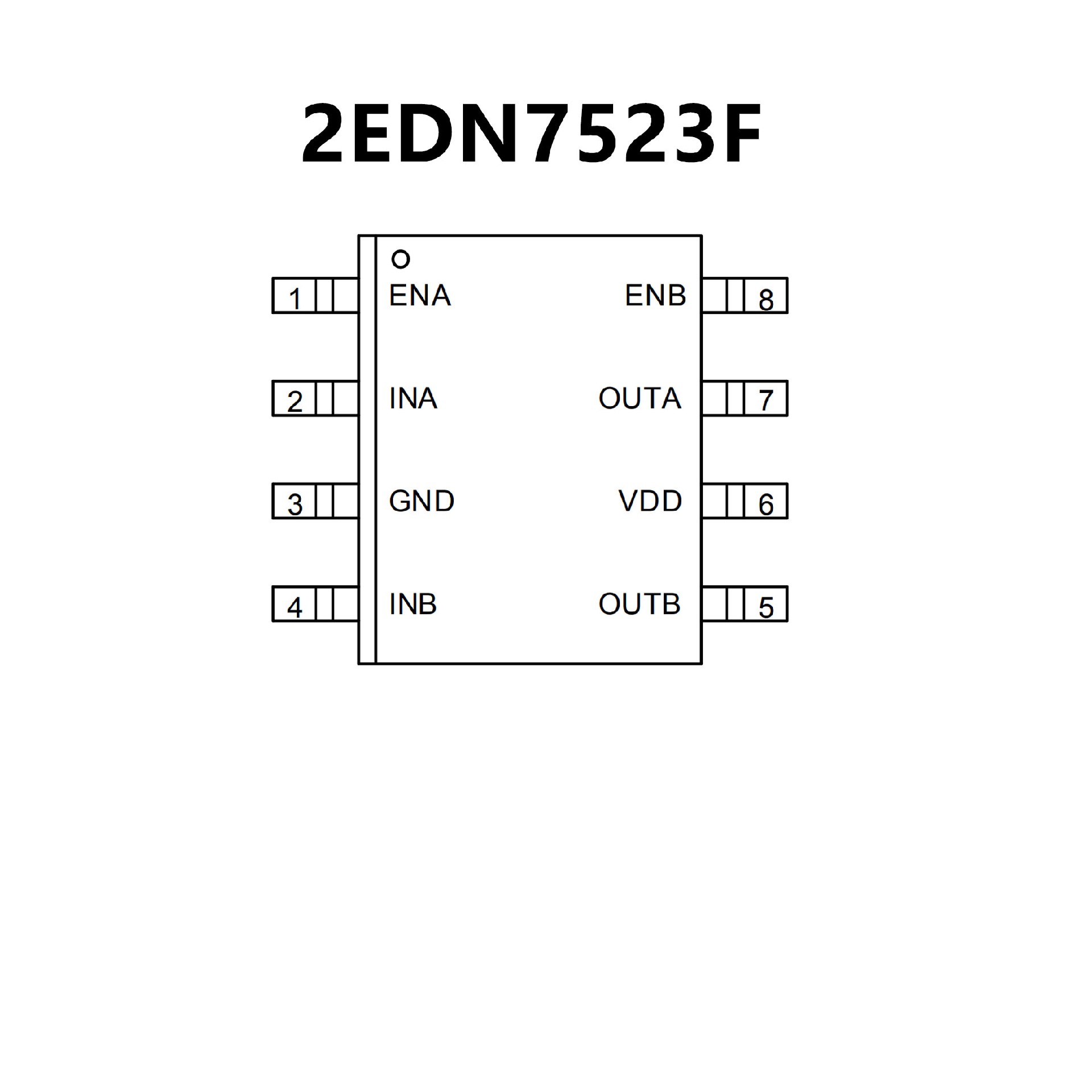

? Highly efficient SMPS enabled by 5 ns fast
slew rates and 17 ns propagation delay
precision for fast MOSFETand GaN switching
? 1 ns channel-to-channel propagation
delay accuracy enables safe use of
two channels in parallel
? Two independent 5 A channels
enable numerous deployment options
? Industry standard packages and
pinout ease system-design upgrades
