SCT52241.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink Current
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package
? High Current Drive Capability ±5 A
? TTL/CMOS Compatible Inputs
Independent of Supply Voltage

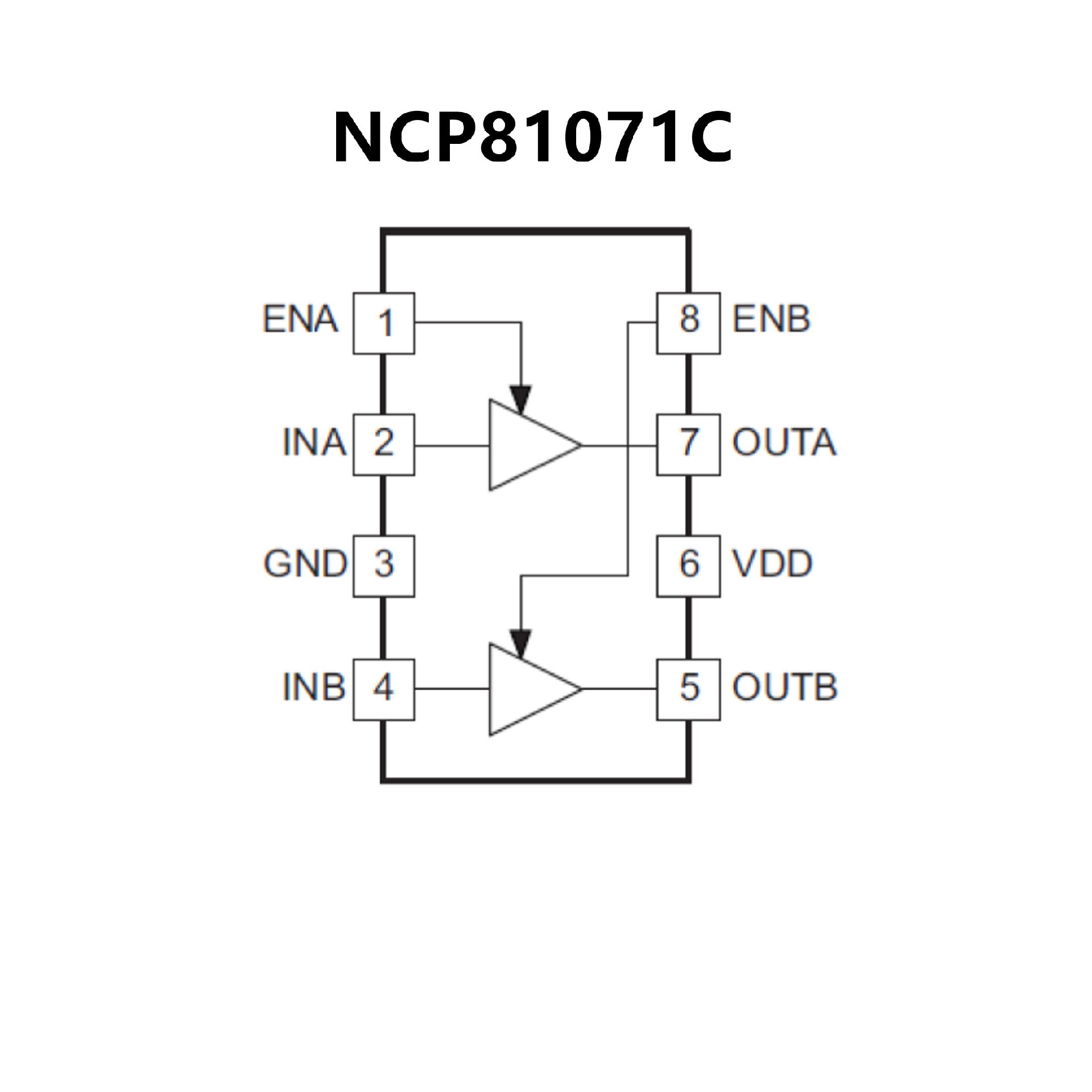

? Industry Standard Pin?out
? High Reverse Current Capability (6 A) Peak
? Enable Functions for Each Driver
? 8 ns Typical Rise and 8 ns Typical
Fall Times with 1.8 nF Load
? Typical Propagation Delay Times of
20 ns with Input Falling and20
ns with Input Rising
? Input Voltage from 4.5 V to 20 V
? Dual Outputs can be Paralleled
for Higher Drive Current
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHSCompliant
