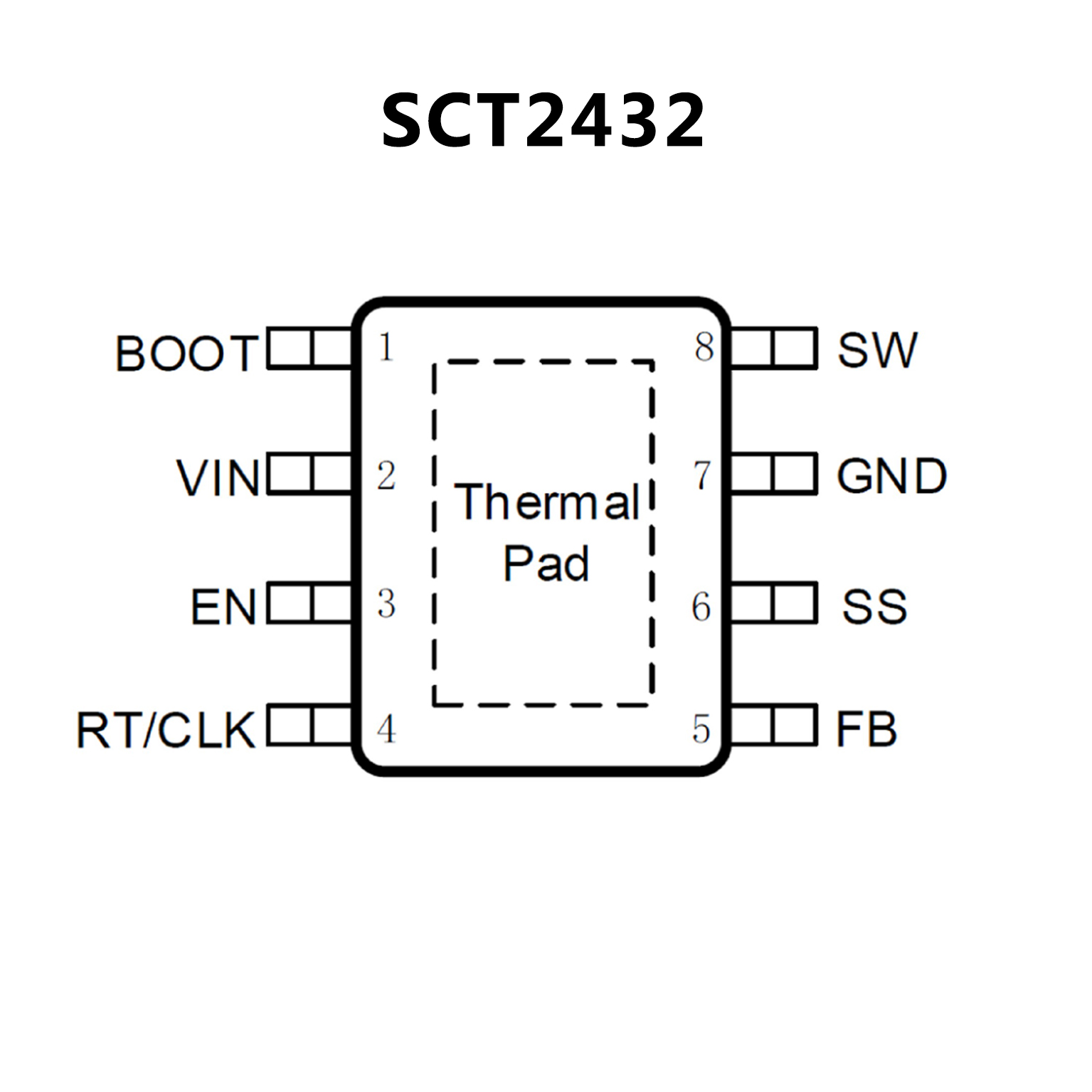

SCT2432.pdf? Wide Input Range: 3.8V-40V
? Up to 3.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80mΩ High-Side and 50mΩ Low-Side Power MOSFETs
? Pulse Skipping Mode (PSM)
? 25uA Quiescent Current in Sleep Mode
? 100ns Minimum On-time
? Programmable Soft-start Time
? Adjustable Frequency 300KHz to 2.2MHz
? External Clock Synchronization
? Frequency Spread Spectrum (FSS) Modulation for EMI Reduction
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator

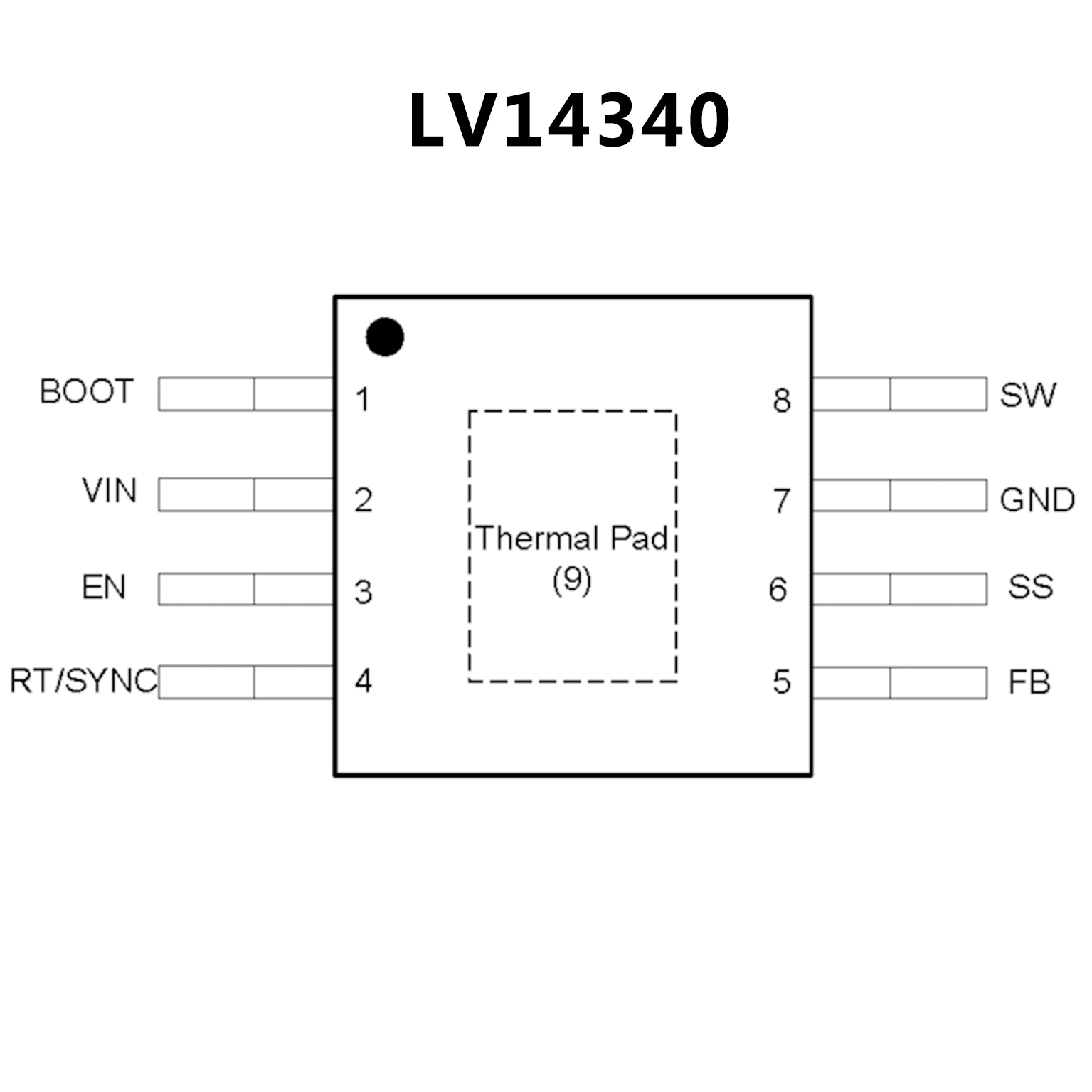

? 4V to 40V Input Range
? 3.5 A Continuous Output Current
? 100 mΩ High-Side MOSFET
? Minimum On Time: 100ns
? Current Mode Control
? Adjustable Switching Frequency from 200 kHz to 2MHz
? Frequency Synchronization to External Clock
? Internal Compensation for Ease of Use
? High Duty Cycle Operation Supported
? Precision Enable Input
? 1 μA Shutdown Current
? External Soft-start dissipation
? Thermal, Overvoltage and Short Protection
? 8-Pin SOIC with PowerPAD? Package
