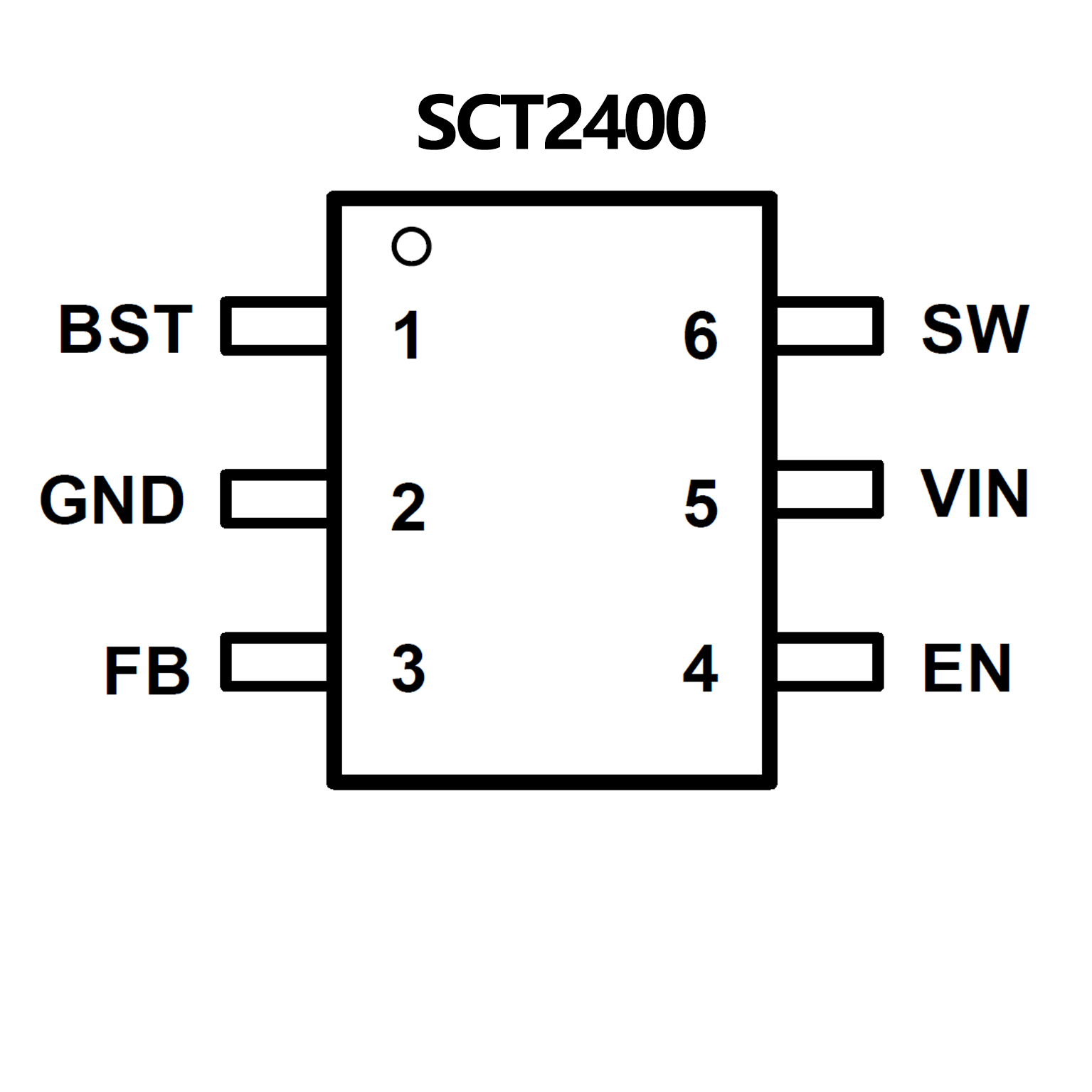

SCT2400.pdf? Wide Input Range: 4.5V-40V
? Up to 600mA Continuous Output Current
? Less than 0.1% Output Ripple at 12V Output
? 0.81V ± 2.5% Feedback Reference Voltage
? Integrated 600mΩ High-Side and 300mΩ Low-
Side Power MOSFETs
? Fixed Frequency 2MHz
? Pulse Skipping Mode (PSM) at Light Load
? 90uA Quiescent Current in Sleep Mode
? 80ns Minimum On-time
? 1ms Internal Soft-start Time
? Over-Temperature Protection
? Available in an TSOT23-6L Package

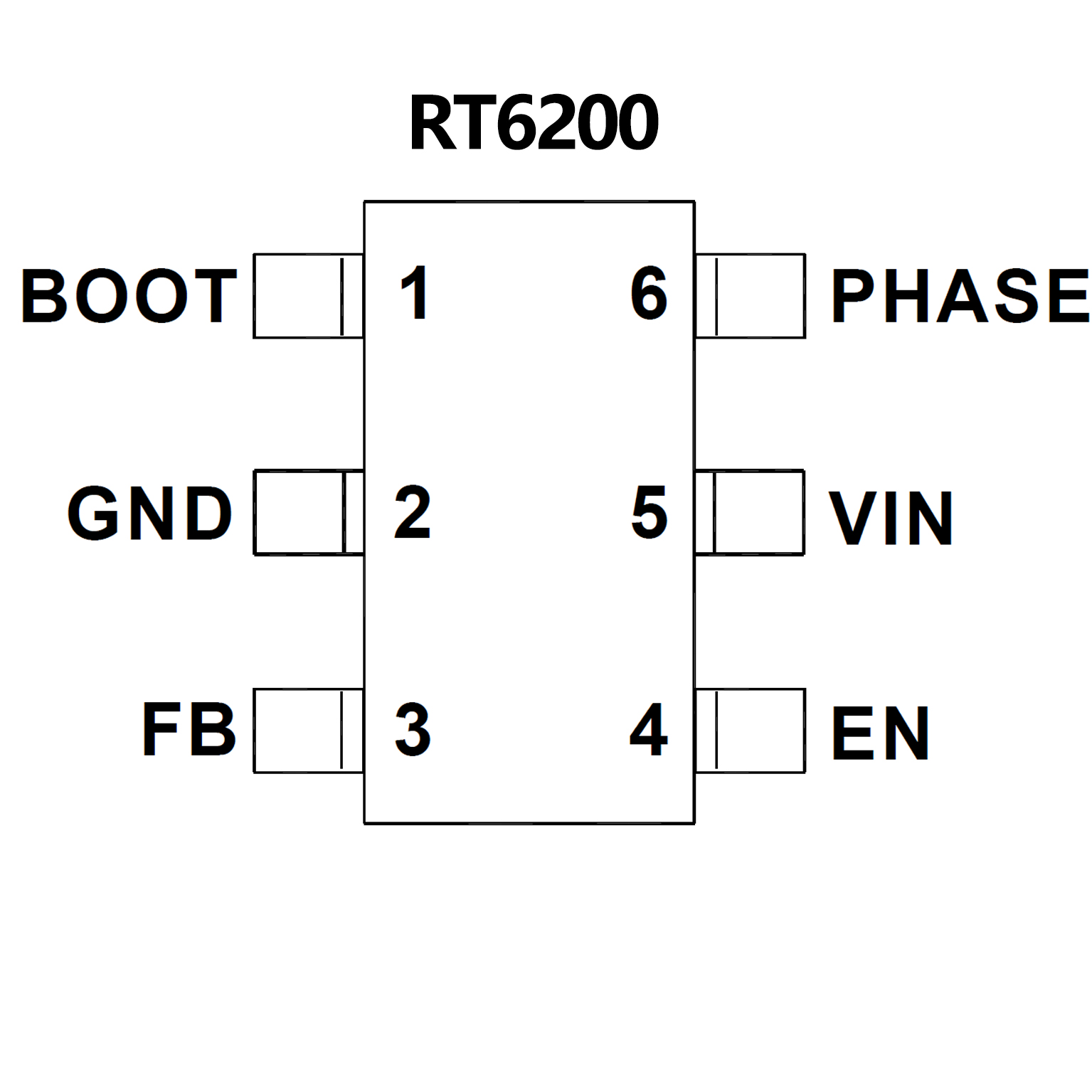

? Wide Operating Input Voltage Range : 4.5V to 36V
? Adjustable Output Voltage Range : 0.8V to 15V
? 0.6A Output Current
? 0.35Ω Internal Power MOSFET Switch
? High Efficiency up to 95%
? 1.2MHz Fixed Switching Frequency (Duty <90%)
? Support duty up to 95%
? Stable with Low ESR Output Ceramic Capacitors
? Thermal Shutdown
? Cycle-By-Cycle Over-Current Protection
