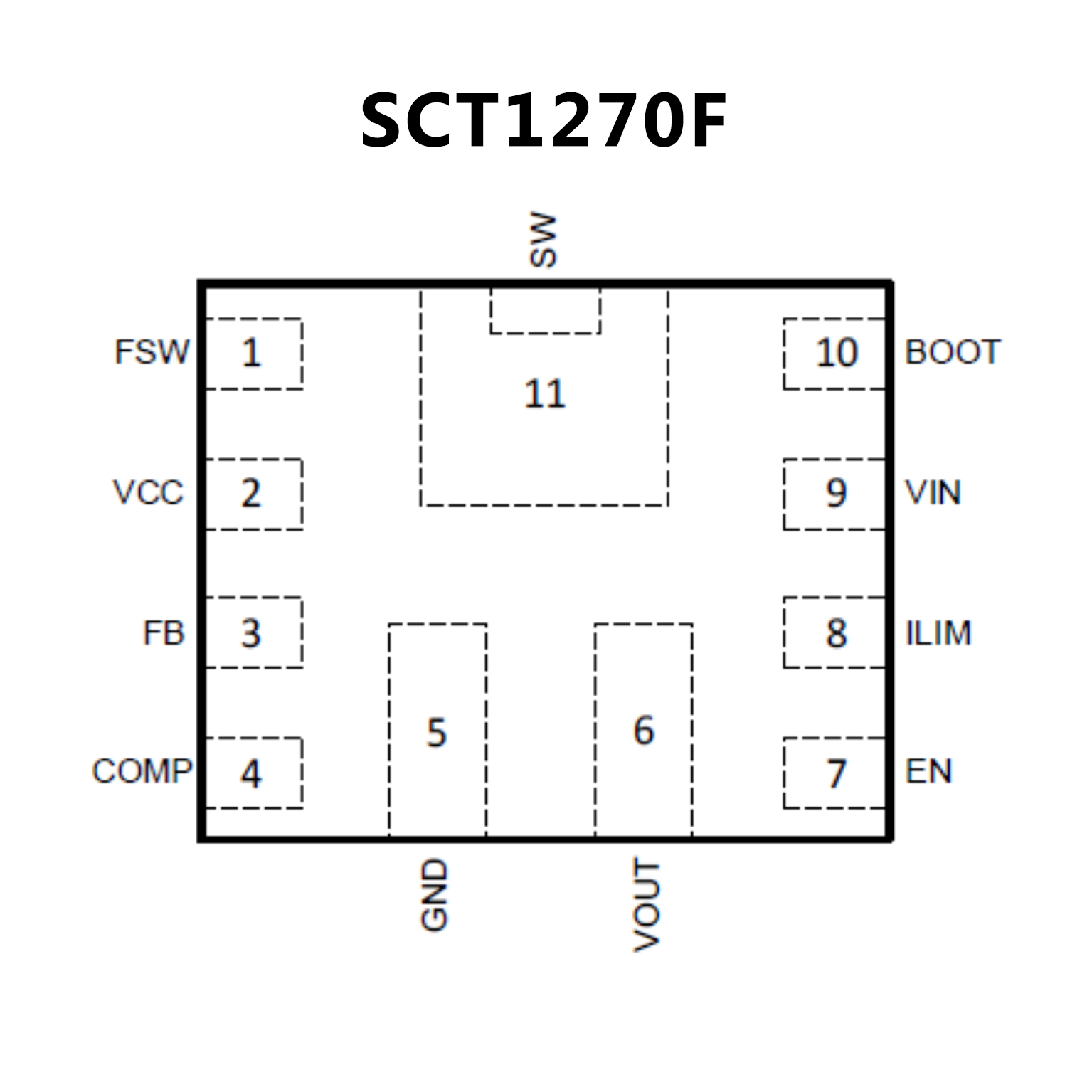

SCT1270F.pdf? Wide Input Voltage Range: 2.7V-12V
? Wide Output Voltage Range: 4.5V-12.6V
? Fully Integrated 17mΩ High Side FET and 14mΩ Low
Side FET
? Up to 93% Efficiency at Vin=3.3V, Vout=9V, and Iout=2A
? Programmable and Up to 9.5A Peak Switch Current Limit
? Typical Shut-down Current: 1uA
? Adjustable Switching Frequency: 200KHz to 2.2MHz
? Forced PWM Operation Mode at Light Load
? Internal Soft Start and External Compensation
? Cycle-by-Cycle Overcurrent Protection
? Output Overvoltage Protection
? Thermal Shutdown Protection: 160°C
? QFN-11 2mm x 2.5mm Package
? Input Voltage Range: 2.7 V to 12 V
? Output Voltage Range: 4.5 V to 12.6 V
? Up to 90% Efficiency at VIN = 3.3 V, VOUT = 9 V,
and IOUT = 2A
? Resistor-Programmable Peak Current Limit up to
10A for high pulse current
? Adjustable Switching Frequency: 200 kHz to 2.2MHz
? 4-ms Built-in Soft Start Time
? Forced PWM Operation Mode at Light Load
? Internal Output Overvoltage Protection at 13.2 V
? Cycle-by-Cycle Overcurrent Protection
? Thermal Shutdown
? 2.00-mm × 2.50-mm VQFN Hotrod Package
