ESD-Protected, Low Capacitance, 2-Channel, 2:1 Switch, With Powered-off Protection, PSMUX154 P2P TMUX154E.
PSMUX154
PSMUX154.pdf
PSMUX154.pdfFEATURES
? CMOS Technology for Bus and Analog Applications
? Low On-Resistance: 4.3Ω @VDD = 3.0V
? Wide VDD Range: 1.8V to 4.3V
? Rail-to-Rail Signal Range
? High Off Isolation: -80dB @ 1MHz
? Crosstalk Rejection Reduces Signal Distortion: -90dB @
1MHz
? Wide -3dB Bandwidth: 850MHz
? Near-Zero propagation delay: 250ps
? Support for 1.8V/2.5V/3.3V Logic on Control pins
? Channel On Capacitance: 6.0pF
? Extended Industrial Temperature Range: -40°C to 85°C
? ESD protection : 8kV(HBM)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green):10-pin UQFN (ZM),
1.4mmx1.8mm

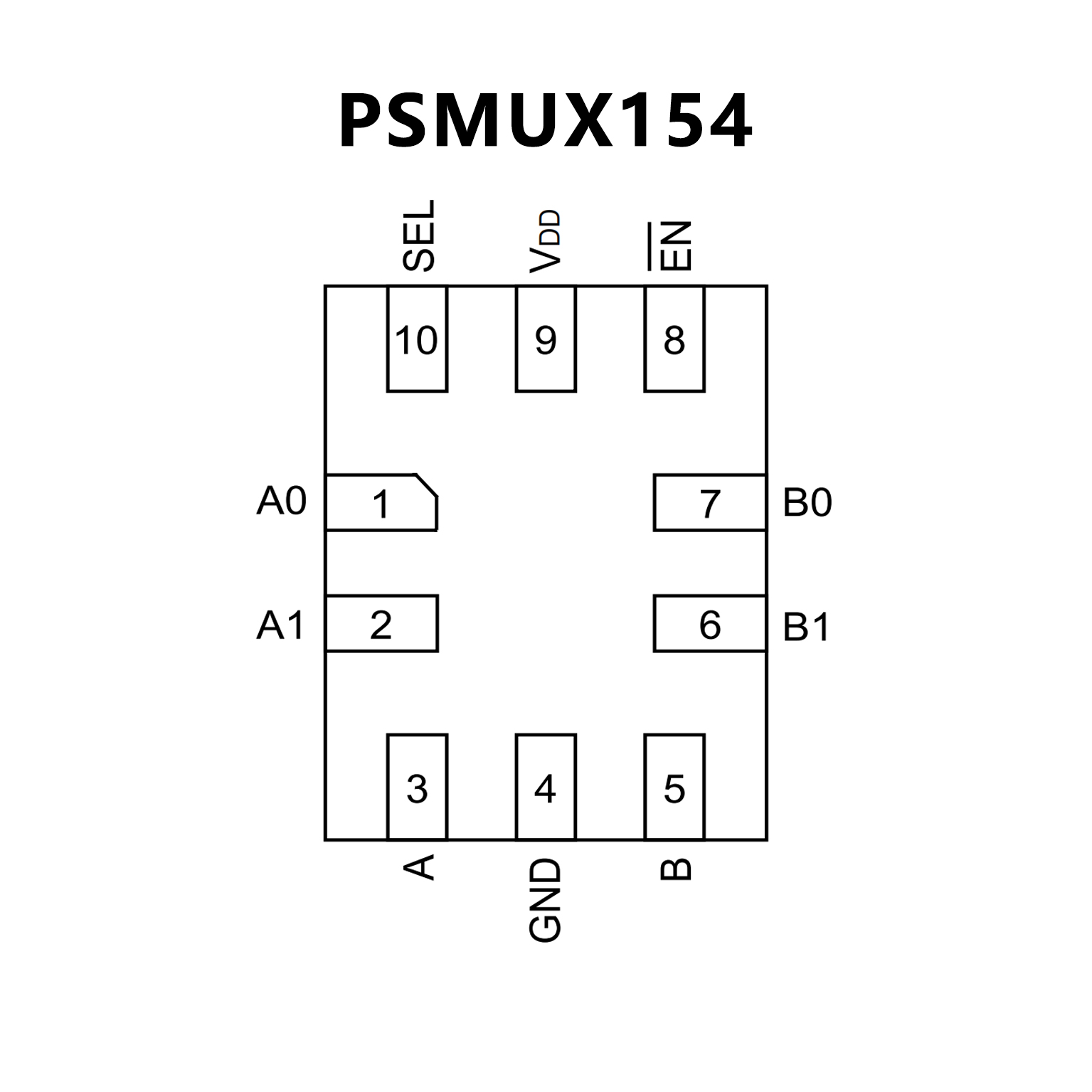

PIN CONFIGUTION
優勢替代
FEATURES
? VCC Operation at 3 V to 4.3 V
? I/O Pins Can Tolerate up to 5.25 V
? 1.8-V Compatible Control Logic
? Supports Powered-off Protection I/O Pins Hi-Z
When VCC = 0 V
? RON = 10 ? Maximum
? ΔRON = 0.35 ? Typical
? Cio(ON) = 7.5 pF Typical
? Low Power Consumption (1 uA Maximum)
? –3-dB Bandwidth = 900 MHz Typical
? Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II (1)
? ESD Performance Tested Per JESD 22
– 8000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)
? ESD Performance I/O Port to GND (2)
– 15000-V Human-Body Model

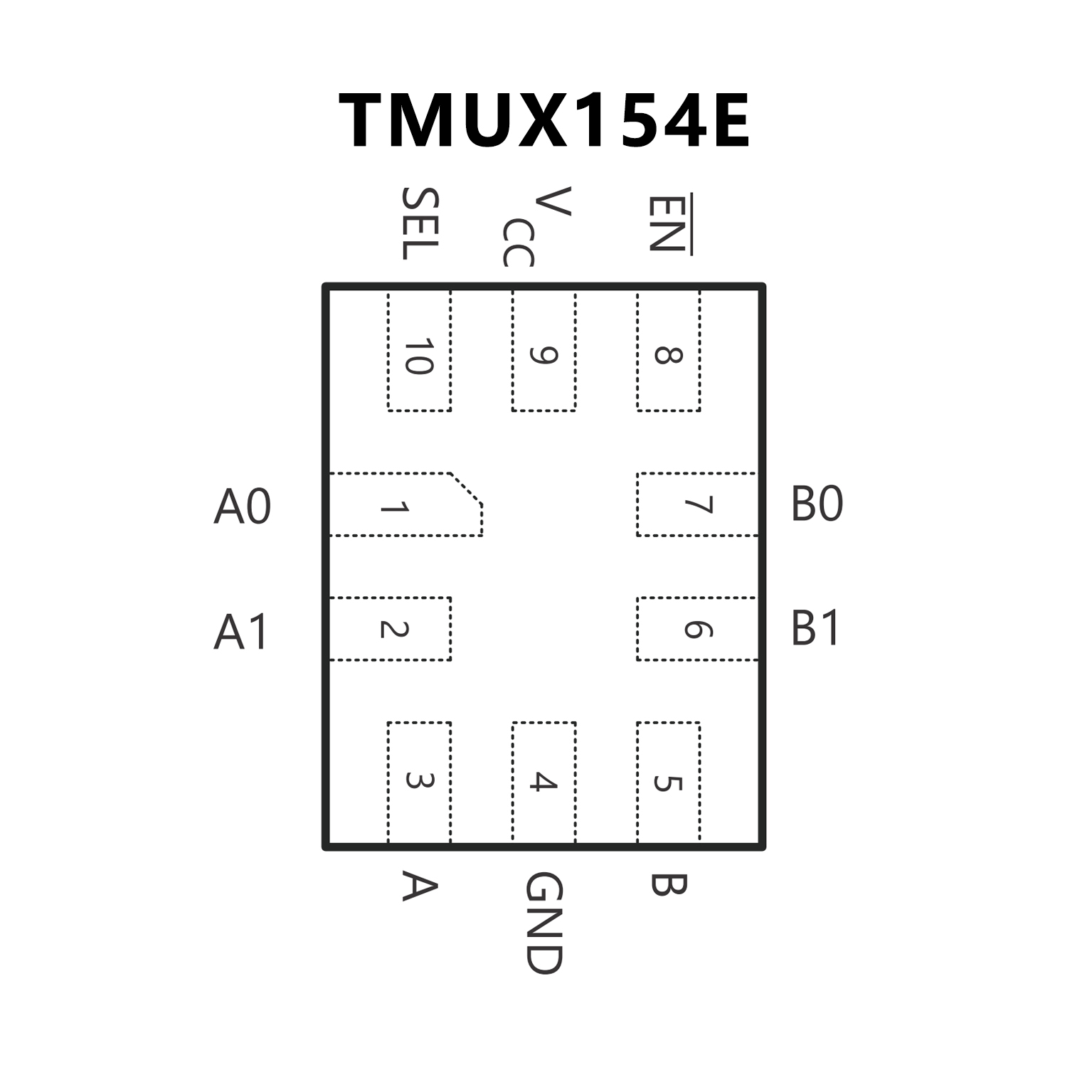

PIN CONFIGUTION
