Low Voltage Bidirectional SPDT Analog Switch, PSMUX1248 Replace TMUX1248.
PSMUX1248
PSMUX1248.pdf
PSMUX1248.pdfFEATURES
? Wide Vpp Range: 1.08V to 5.5V
? Low Supply Current: 4nA
? Low On-Resistance 302
? 1.8 V Logic Compatible
? Voltages on the control pins to be applied before the
supply pin
? Signal Passing Bandwidth, 50OMHz
? Transition Time: 14ns
? Break-before-make Switching
? Rail-to-Rail Signal Range
? High Off Isolation: -65dB @ 1MHz
? Crosstalk Rejection Reduces Signal Distortion: -65dB@
1MHz
? Extended Industrial Temperature Range: -40°C to 125C
? ESD Protection : 2kV(HBM)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green): 6-pin SC-70 (C)

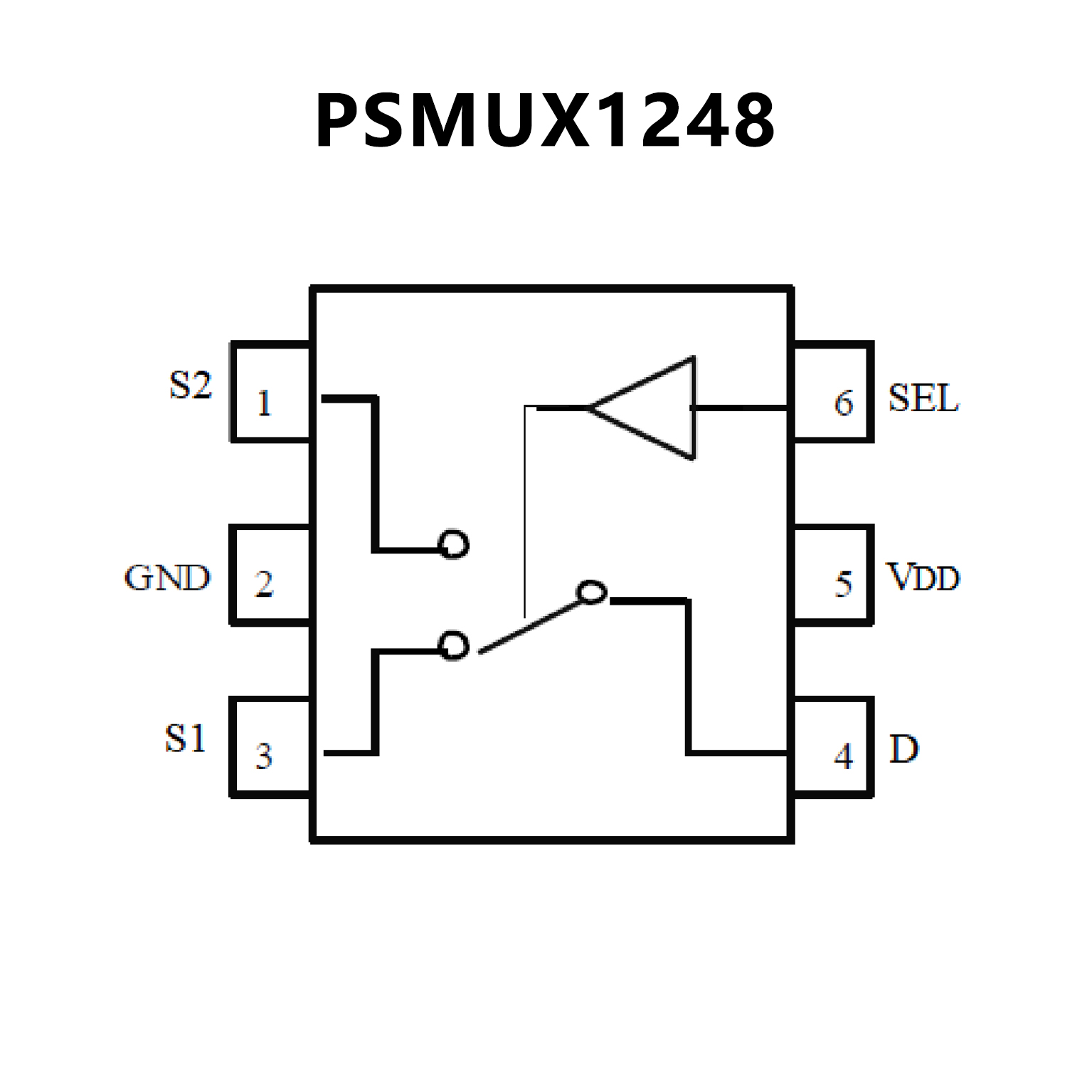

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Rail-to-rail Operation
? Bidirectional Signal Path
? 1.8 V Logic Compatible
? Fail-safe Logic
? Control input overvotlage tolerance: 5.5 V
? Low On-resistance: 3 Ω
? Wide Supply Range: 1.08 V to 5.5 V
? -40°C to +125°C Operating temperature
? Low supply current: 7 nA
? Break-before-make switching

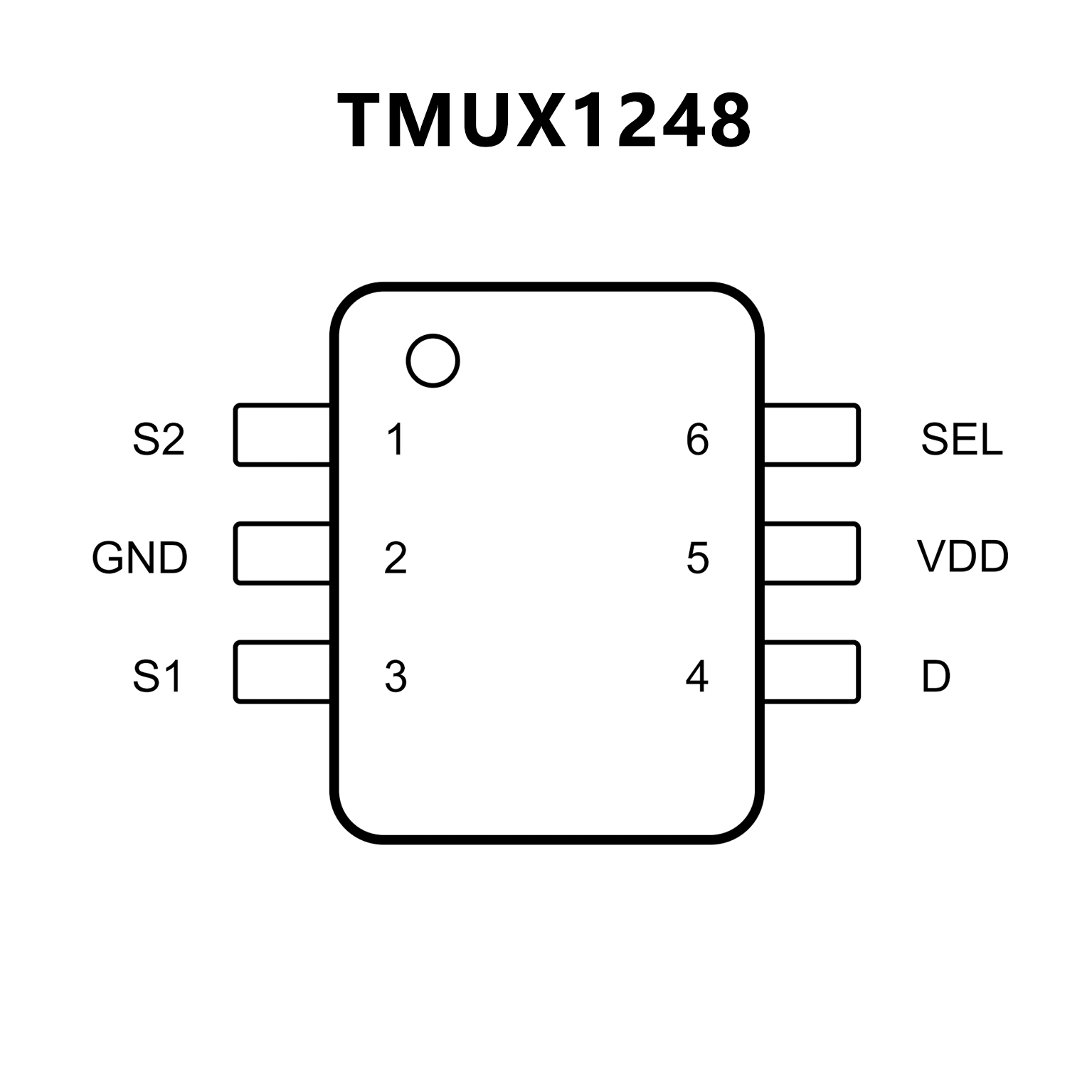

PIN CONFIGUTION
