Precision 8-Channels, Differential 4-Channels, 36V Analog Multiplexers, PS509 Replace MUX509.
PS509
PS509.pdf
PS509.pdfFEATURES
?Low On-Capacitance
PS508: 30pF
PS509: 20pF
? Low Input Leakage: 30pA
? Low Charge Injection: 0.9pC
? Rail-to-Rail Operation
? Wide Supply Range: ±5V to ±18V, 10V to 36V
? Low On-Resistance: 125Ω
? Transition Time: 171ns
? Break-Before-Make Switching Action
? EN Pin Connectable to VDD
? Logic Levels: 2V to VDD
? Low Supply Current: 135μA
? ESD Protection HBM: 2000V
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green):
16-pin TSSOP (L)
16-pin QSOP (Q)
16-pin SOIC (W)

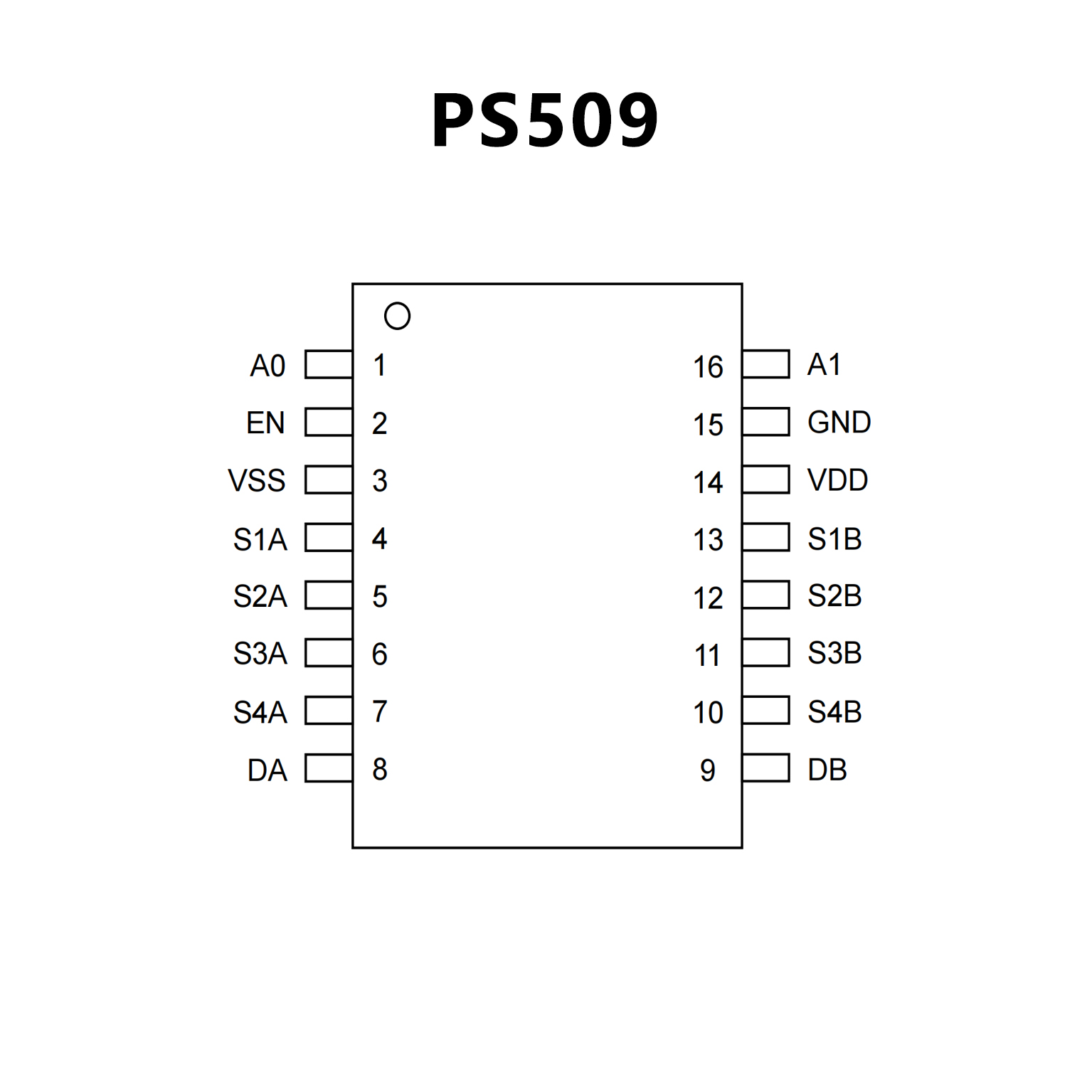

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low On-Capacitance
– MUX508: 9.4 pF
– MUX509: 6.7 pF
? Low Input Leakage: 10 pA
? Low Charge Injection: 0.3 pC
? Rail-to-Rail Operation
? Wide Supply Range: ±5 V to ±18 V, 10 V to 36 V
? Low On-Resistance: 125 Ω
? Transition Time: 92 ns
? Break-Before-Make Switching Action
? EN Pin Connectable to VDD
? Logic Levels: 2 V to VDD
? Low Supply Current: 45 μA
? ESD Protection HBM: 2000 V
? Industry-Standard TSSOP and SOIC Packages

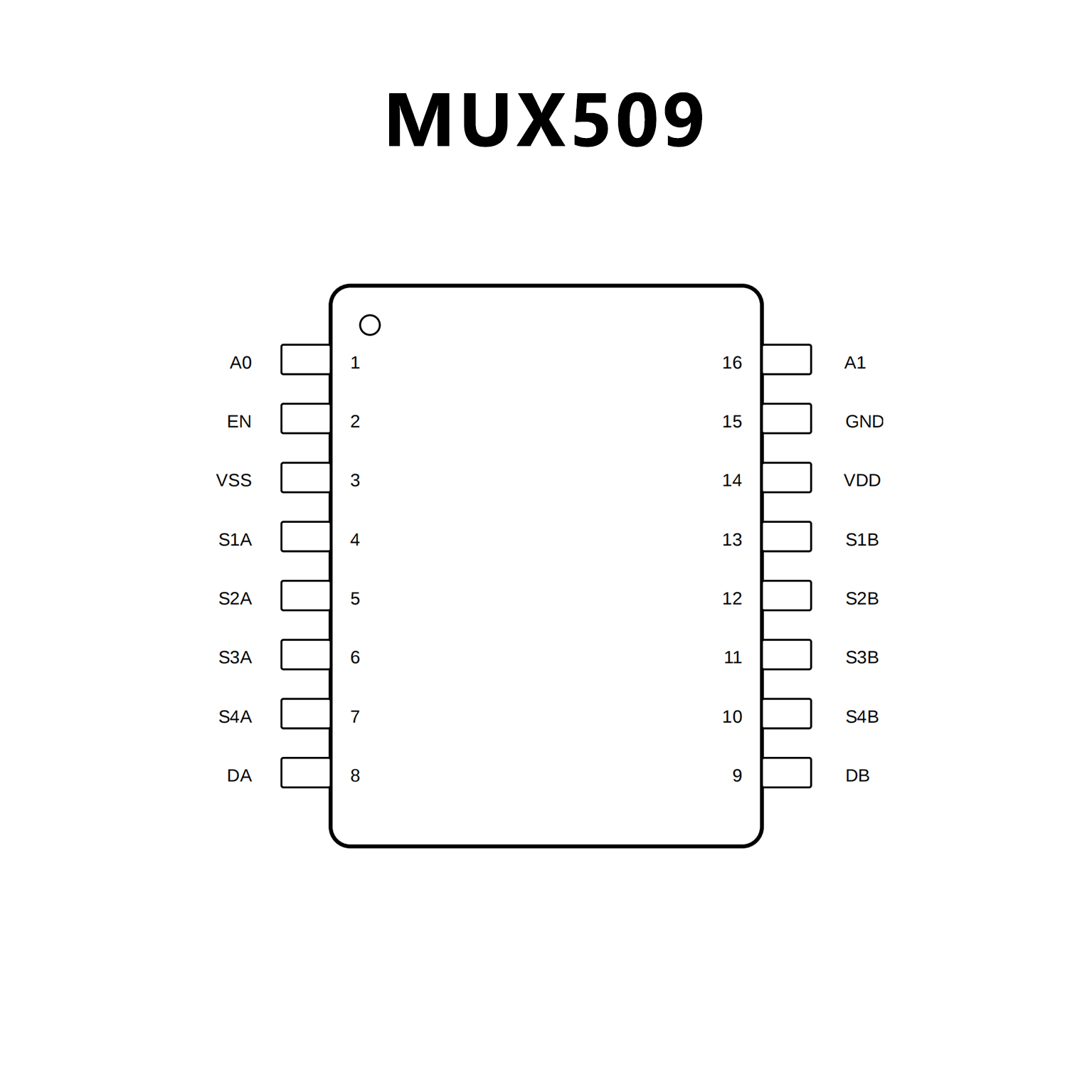

PIN CONFIGUTION
