Hot Swappable I2C Bus/SMBus Buffer, PI6ULS5V9511 Replace LTC4300A.
PI6ULS5V9511
PI6ULS5V9511.pdf
PI6ULS5V9511.pdfFEATURES
? Bidirectional Buffer for SDA and SCL Lines Increases
Fan Out
? Prevents SDA and SCL Corruption During Live Board
Insertion and Removal from Backplane
? Isolates Input SDA and SCL Lines From Output
? Compatible with I2C, I2C Fast Mode, and SMBus
Standards (up to 400kHz Operation)
? Built-in Rise-Time Accelerators on all SDA and SCL
? Wide Supply Voltage Range: 2.7V to 5.5V
? Active HIGH ENABLE Input
? Active HIGH READY Open-Drain Output
? High-Impedance SDA and SCL pins for VCC = 0V
? 1.1V Pre-Charge on all SDA and SCL Lines
? Supporting Clock Stretching and Multiple Master
Arbitration/Synchronization
? ESD Protection Exceeds 4000V HBM per JESD22-A114
? Packages Offered: MSOP-8(U), UDFN-8(ZW), and
SOIC-8(W)

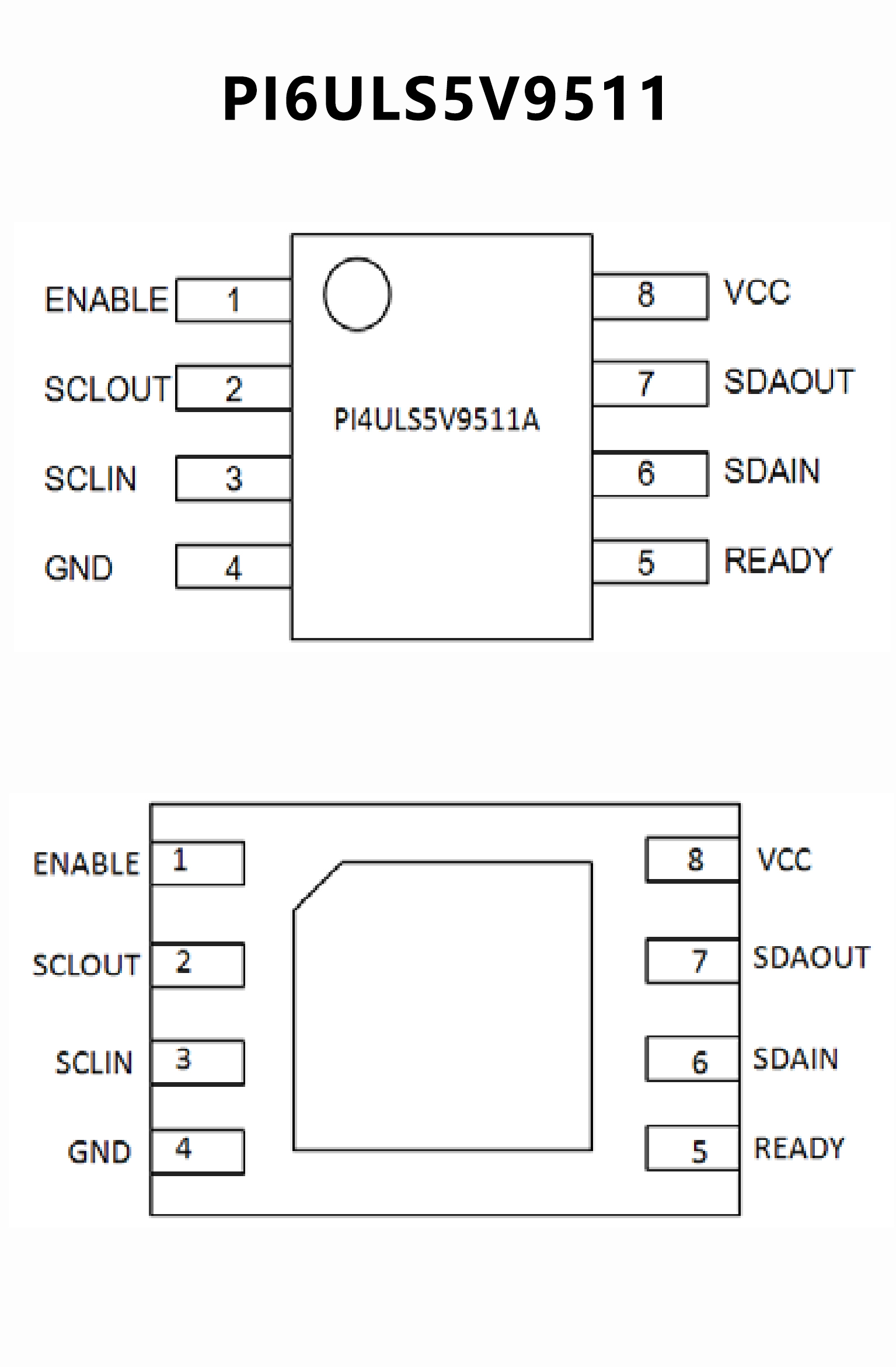

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Bidirectional Buffer for SDA and SCL Lines
Increases Fanout
? Prevents SDA and SCL Corruption During Live
Board Insertion and Removal from Backplane
? Isolates Input SDA and SCL Lines from Output
? Compatible with I2C, I2C Fast Mode and SMBus
Standards (Up to 400kHz Operation)
? Low ICC Chip Disable: <1μA (LTC4300A-1)
? READY Open Drain Output (LTC4300A-1)
? 1V Precharge on all SDA and SCL Lines
? Supports Clock Stretching, Arbitration and
Synchronization
? 5V to 3.3V Level Translation (LTC4300A-2)
? High Impedance SDA, SCL Pins for VCC = 0V
? Small MSOP 8-Pin Package

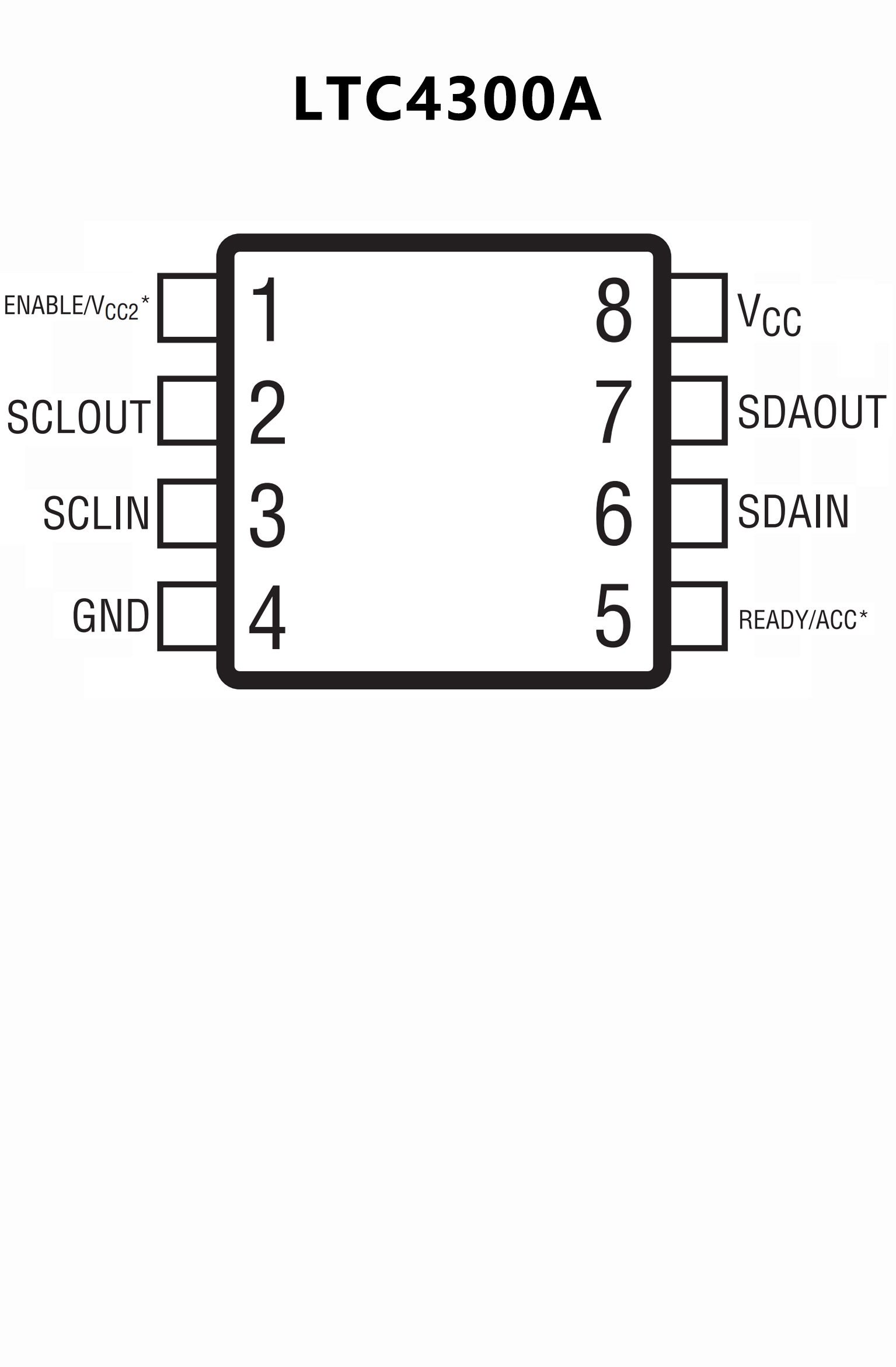

PIN CONFIGUTION
