PI4IOE5V9673.pdf? Operation Power Supply Voltage from 2.3V to 5.5V
? 16-bit Remote I/O Pins that Default to Inputs at
Power-up
? 1 MHz PC-bus Interface
? Compliant with the PC-bus Fast and Standard Modes
? 5.5V Tolerant I/Os
? SDA with 30 mA Sink Capability for 4000 pF Buses
? Latched Outputs with 25 mA Sink Capability for
Directly Driving LEDs
? Total Package Sink Capability of 400 mA
? Active LOW Open-drain Interrupt Output
? Low Standby Current
? 16 Programmable Slave Addresses using 2 Address Pins
? ESD Protection (4KV HBM and 1KV CDM)
? Latch-up Tested (exceeds 100mA)
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change
control

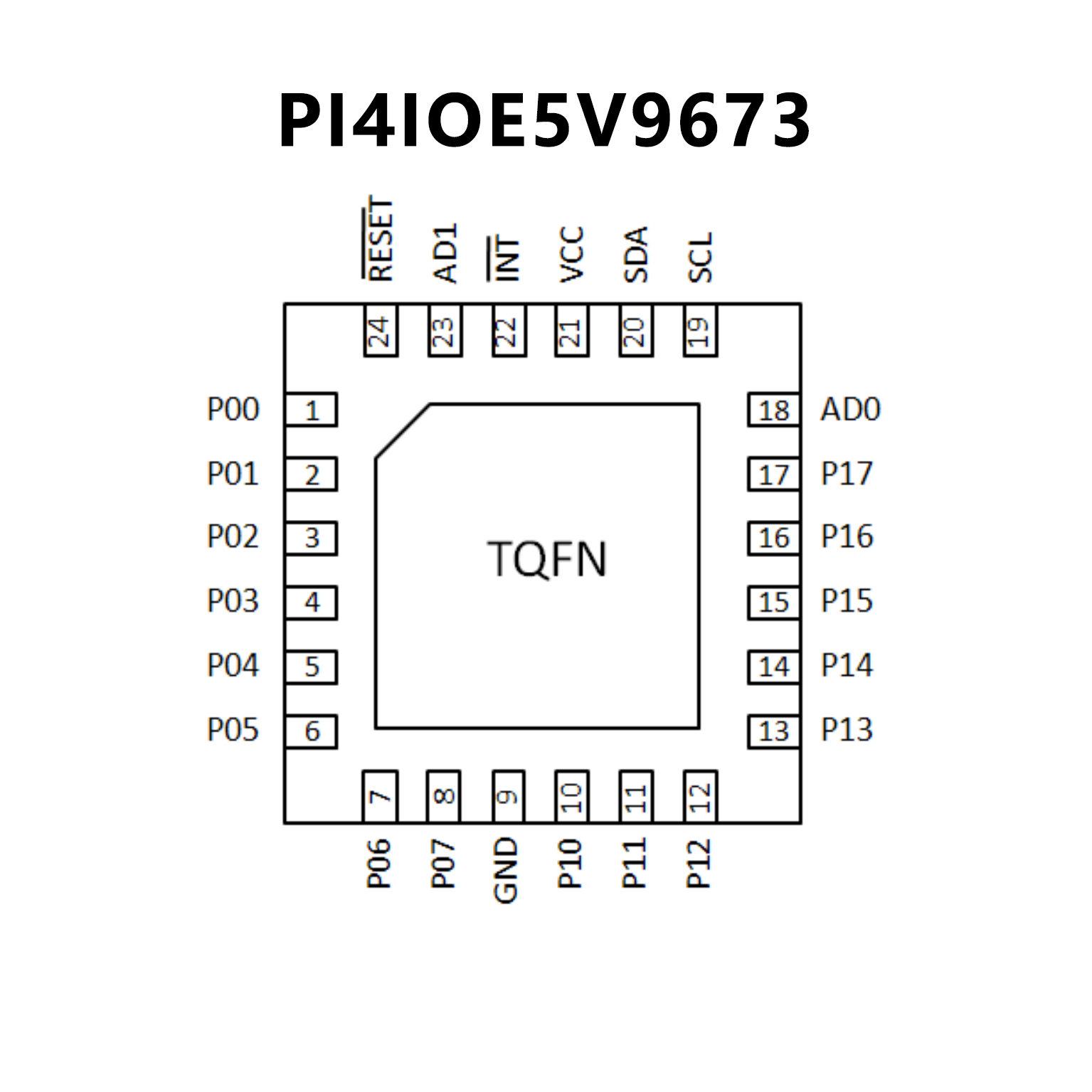

? Packaging (Pb-free & Green): 24-Pin, TQFN 4x4 (ZD)
? 1 MHz I2C-bus interface
