High-Speed USB2.0 1:2 Multiplexer/DeMultiplexer Switch with Signal Enable, PI3USB221 P2P TS3USB221.
PI3USB221
PI3USB221.pdf
FEATURES
? VDD Operation at 2.5 V and 3.3 V
? VI/O Accepts Signals up to 5.5 V
? 1.8-V Compatible Control-Pin Inputs
? Low-Power Mode When OE Is Disabled (2 μA)
? rON = 6Ω Maximum
? ΔrON = 0.2Ω Typical
? Cio(on) = 6 pF Maximum
? Low Power Consumption (50 μA Maximum)
? ESD > 8kV contact on USB signal path per IEC61000-4-2)
? High Bandwidth (1.1 GHz Typical)
? Over Voltage Protection
? Packaging (Pb-free & Green): UQFN-10 and UDFN-10

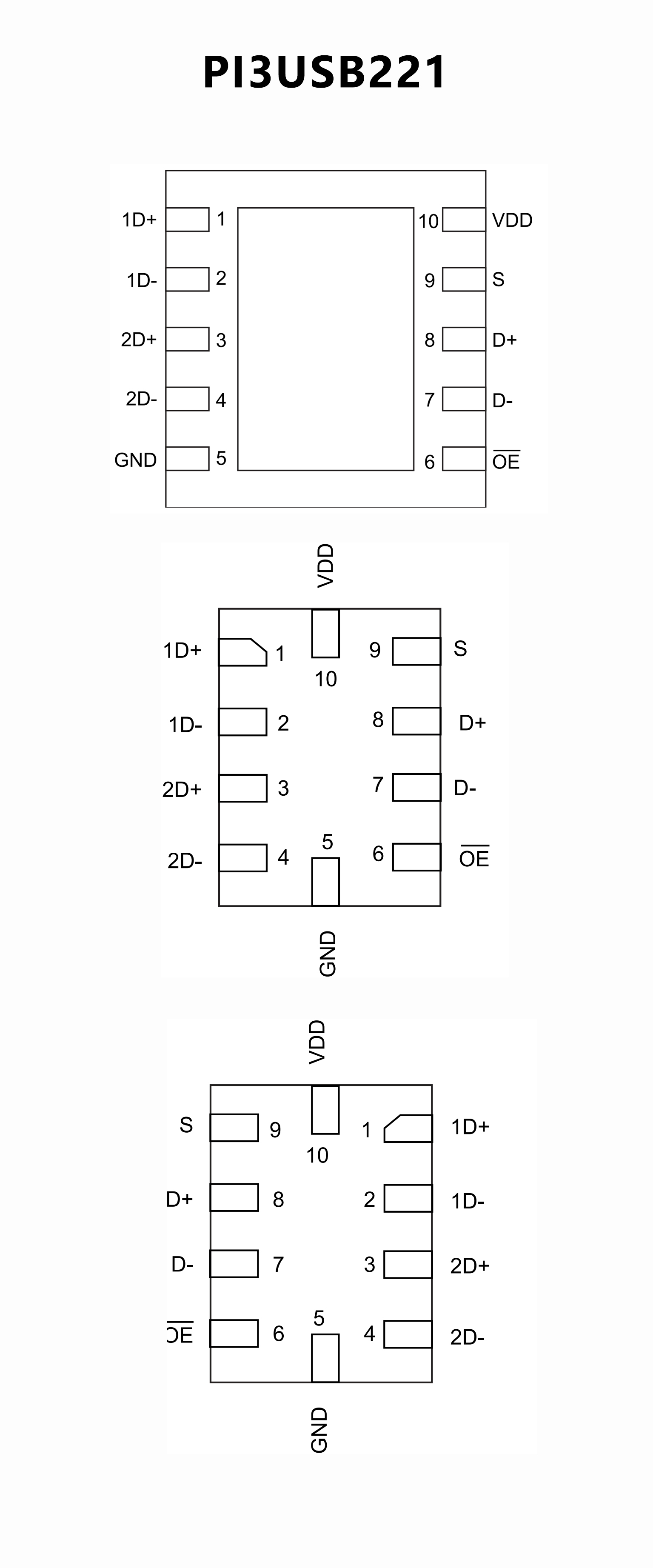

PIN CONFIGUTION

優勢替代
FEATURES
? VCC operation from 2.3V and 3.6V
? VI/O accepts signals up to 5.5V
? 1.8V compatible control-pin inputs
? Low-power mode when OE is disabled (1μA)
? RON = 6? maximum
? ΔrON = 0.2? typical
? CIO(ON) = 6pf maximum
? Low power consumption (30μA maximum)
? ESD > 2000V Human-Body Model (HBM)
? High bandwidth (1GHz typical)

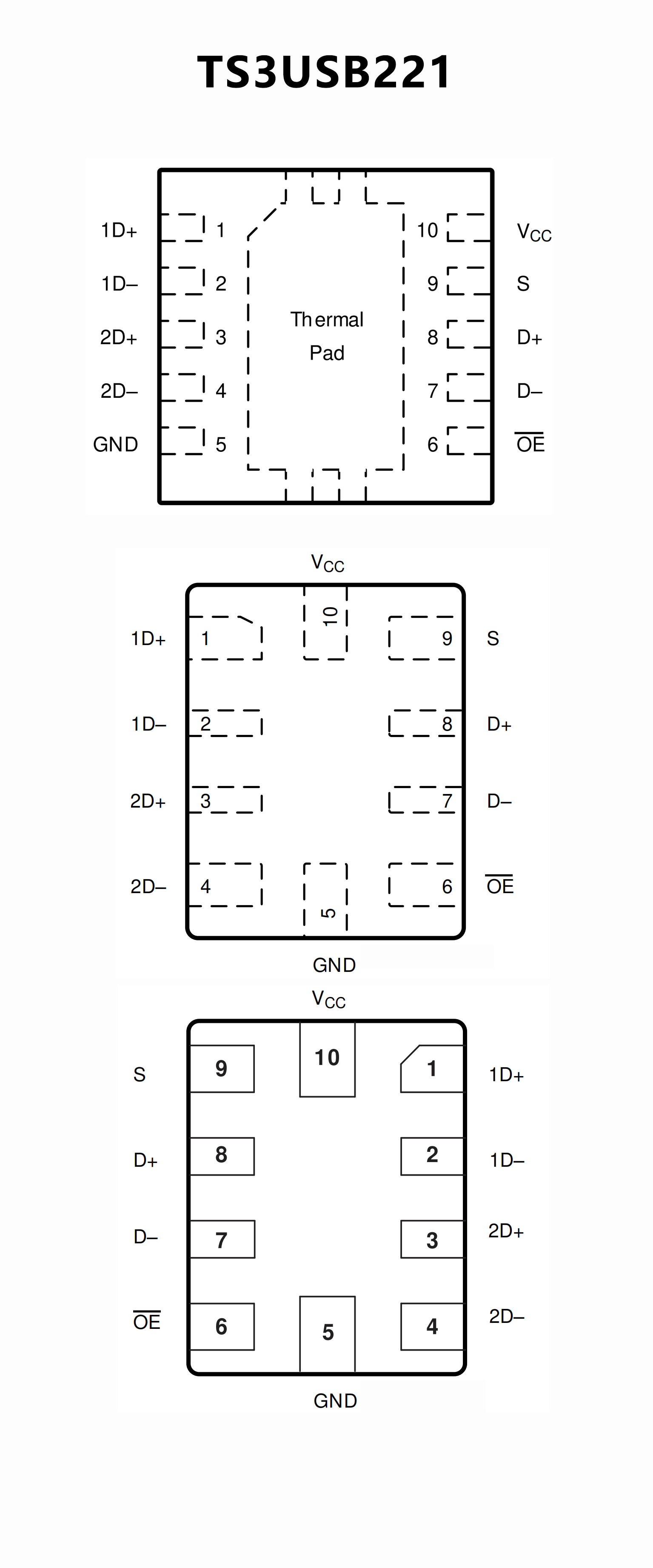

PIN CONFIGUTION
