3.3V, 8:1 Mux/DeMux NanoSwitch, PI3B3251 Replace SN74CBTLV3251.
PI3B3251
PI3B3251.pdf
PI3B3251.pdfFEATURES
? Near-Zero propagation delay
? 5? switches connect inputs to outputs
? Ultra Low Quiescent Power (0.1μA typical)
– Ideally suited for notebook applications
? Pin compatible with 74 series 251 logic devices
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? For automotive applications requiring specific change control
? Packaging (Pb-free & Green available):
– 16-pin 173-mil Wide (TSSOP)

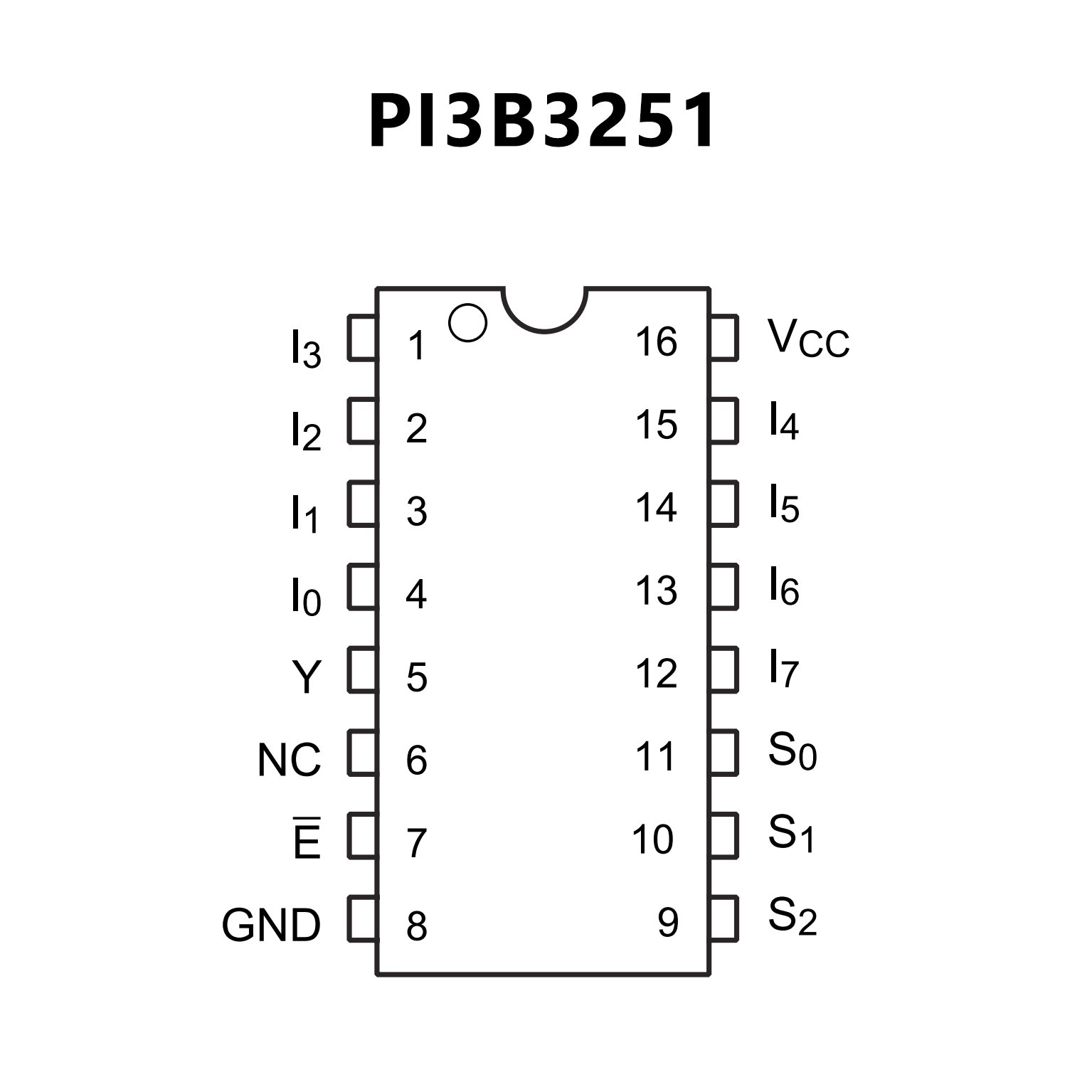

PIN CONFIGUTION
優勢替代
FEATURES
? 5-? Switch Connection Between Two Ports
? Rail-to-Rail Switching on Data I/O Ports
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 100mA Per JESD78, Class II

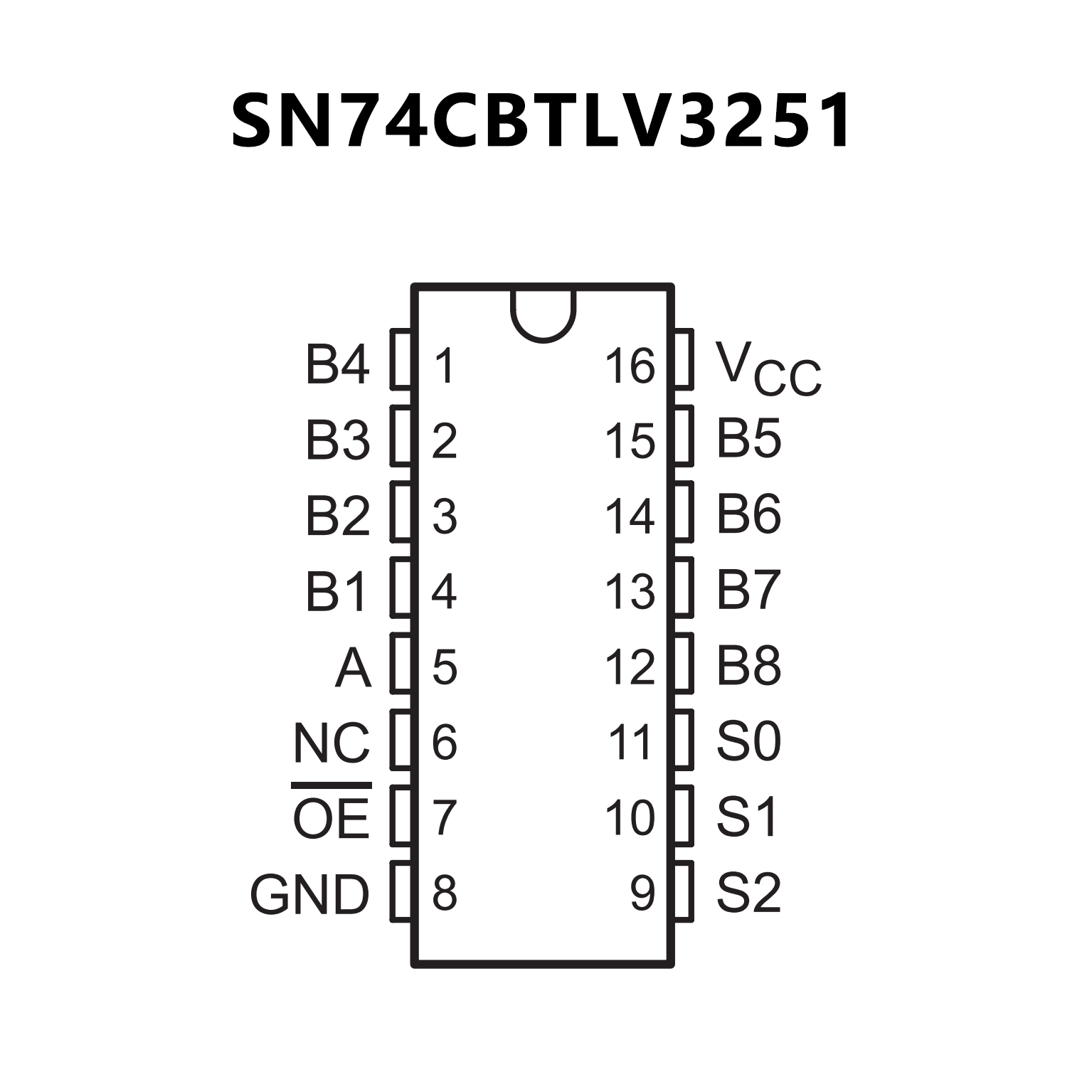

PIN CONFIGUTION
