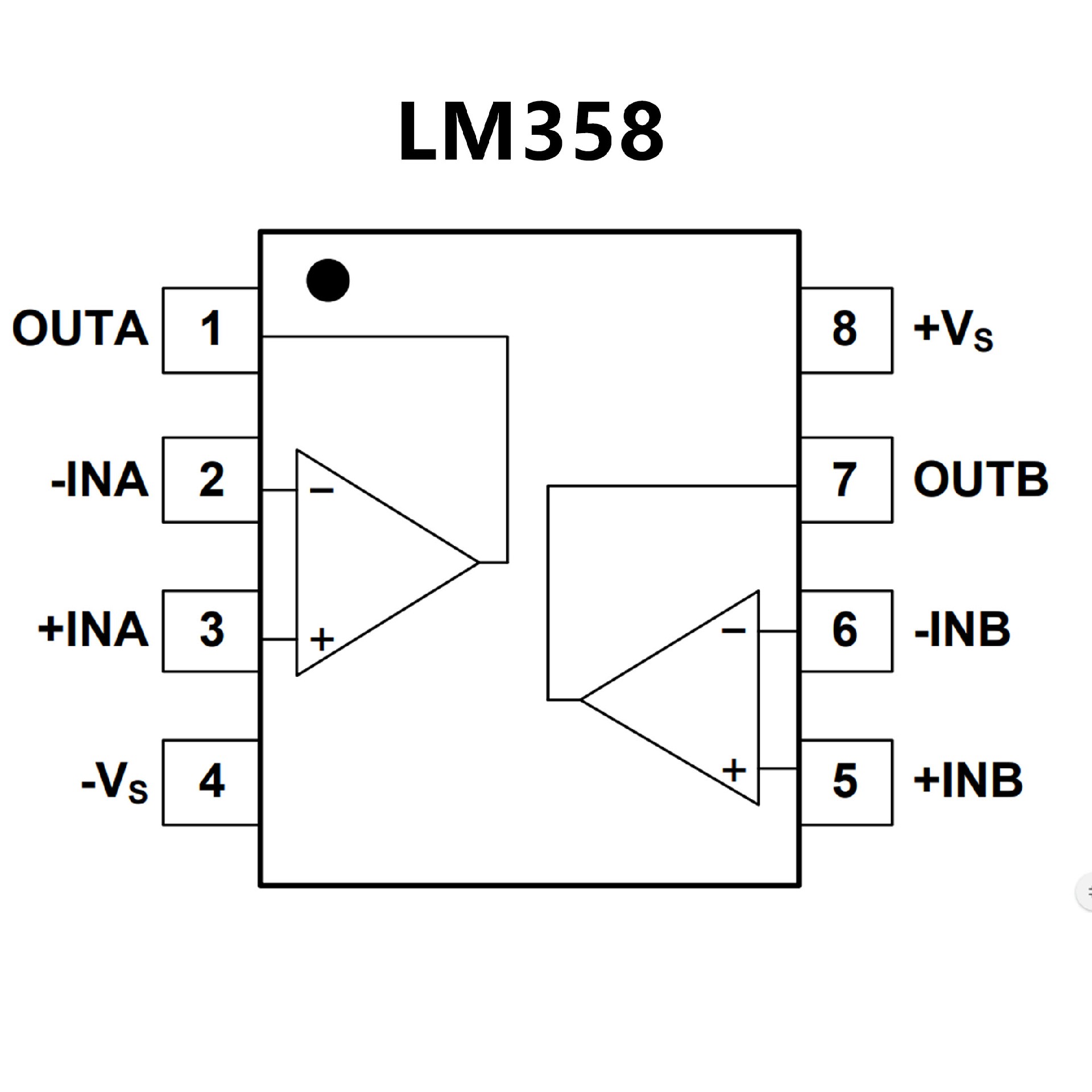

LM358.pdf? Wide Supply RangesSingle Supply:
3V to 32VDual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes
Ground, Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 20pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range
Equal to Maximum-Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? 0℃ to +70℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
? Internally Frequency Compensated for Unity Gain
? Large DC Voltage Gain: 100dB
? Wide Power Supply Range:

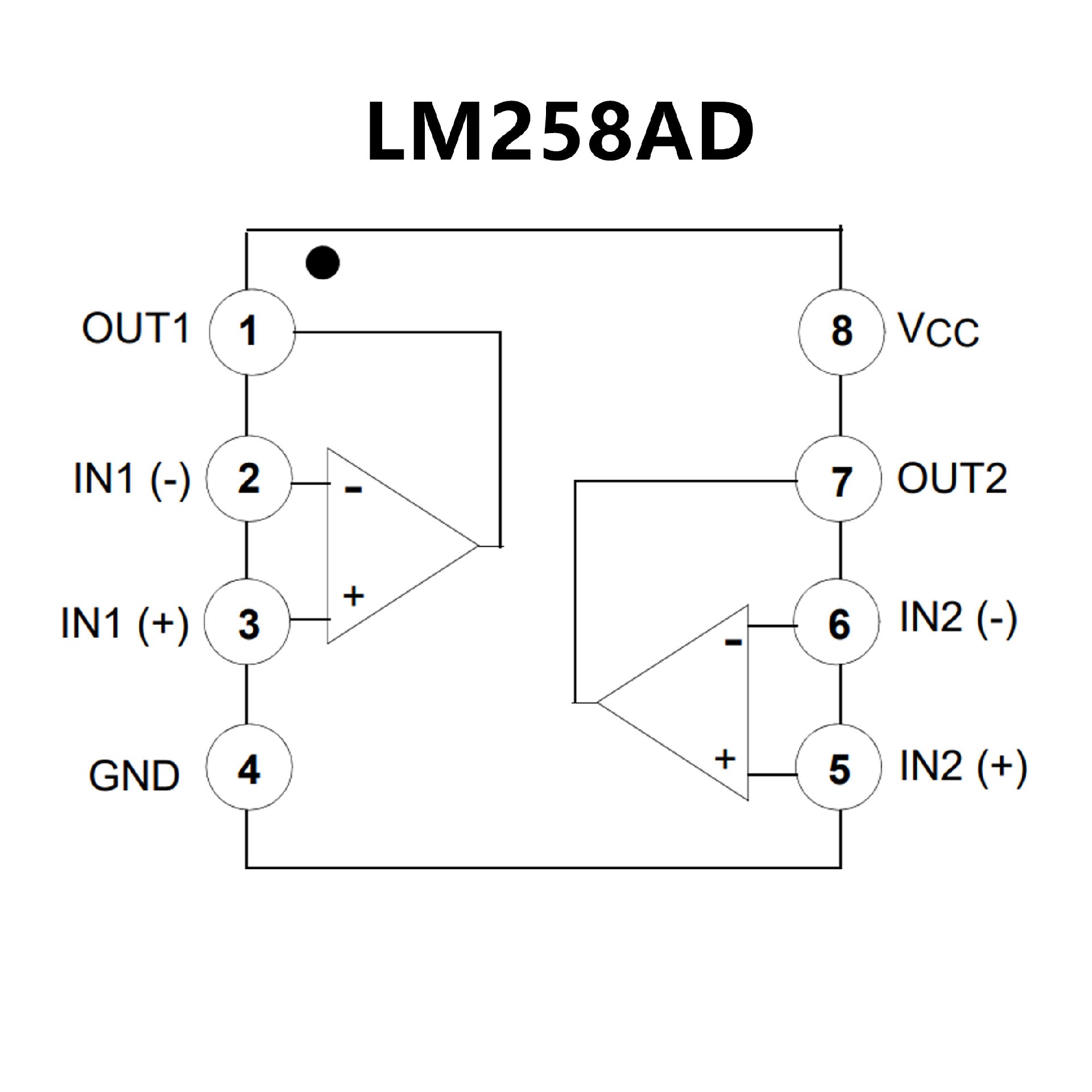

LM258/LM258A, LM358/LM358A:
3V~32V (or ±1.5V~ 16V)
LM2904 : 3V~26V (or ±1.5V ~ 13V)
? Input Common Mode Voltage Range
Includes Ground
? Large Output Voltage Swing:
0V DC to Vcc -1.5V DC
? Power Drain Suitable for Battery Operation
