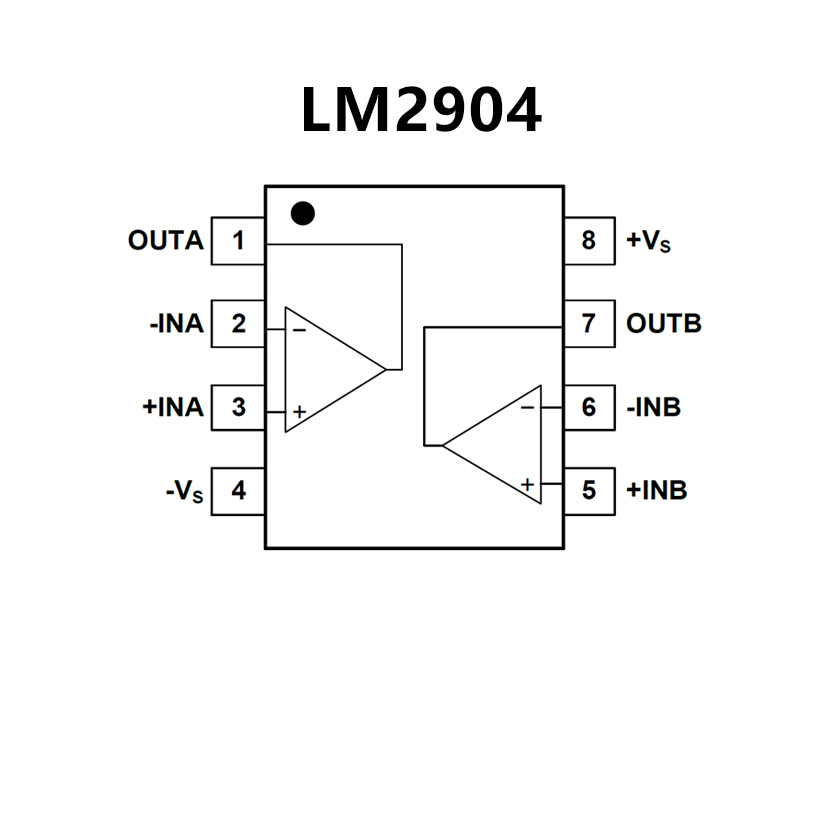

LM2904XTS8G/TR.pdf? Wide Supply Ranges
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range IncludesGround,
Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8 and TSSOP-8Packages
? Trimmed Offset Voltage:

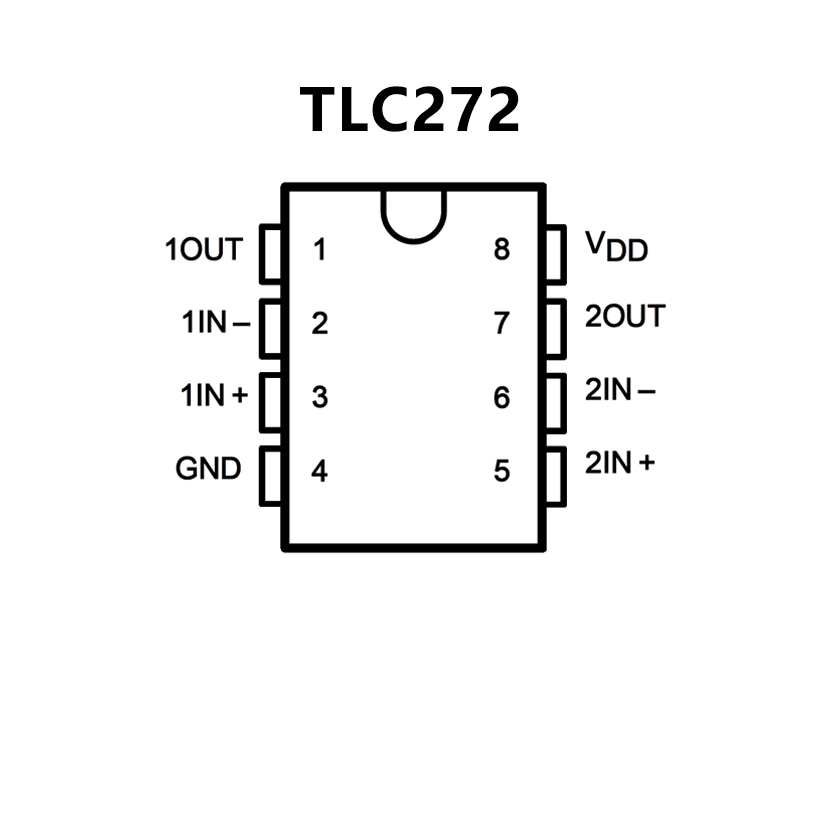

TLC277 . . . 500 μV Max at 25°C,
VDD = 5 V
? Input Offset Voltage Drift . . . Typically
0.1 μV/Month, Including the First 30 Days
? Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
–40°C to 85°C . . . 4 V to 16 V
–55°C to 125°C . . . 4 V to 16 V
? Single-Supply Operation
? Common-Mode Input Voltage Range
Extends Below the Negative Rail (C-Suffix,
I-Suffix types)
? Low Noise . . . Typically 25 nV/√Hz at
f = 1 kHz
? Output Voltage Range Includes Negative
Rail
? High Input impedance . . . 1012 Ω Typ
? ESD-Protection Circuitry
? Small-Outline Package Option Also
Available in Tape and Reel
? Designed-In Latch-Up Immunity
