Dual Operational Amplifier,LM2904XS8G Replace UPC358G2-A.
LM2904XS8G
LM2904XS8G.pdf
LM2904XS8G.pdfFEATURES
? Wide Supply Ranges
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range
Includes Ground, Allowing Direct
Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range
Equal to Maximum- Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8,
MSOP-8 and TSSOP-8 Packages

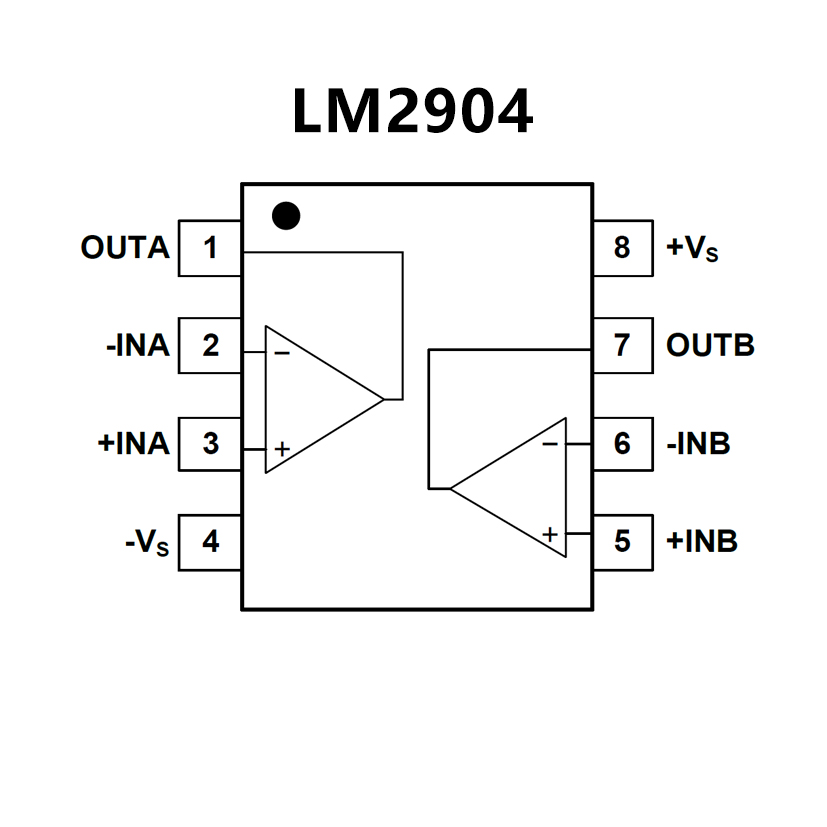

PIN CONFIGUTION
