LM2904XMS8G.pdf? Wide Supply Ranges
Single Supply: 3V to 32V
Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 440μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes
Ground, Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 10pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to Maximum-
Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range

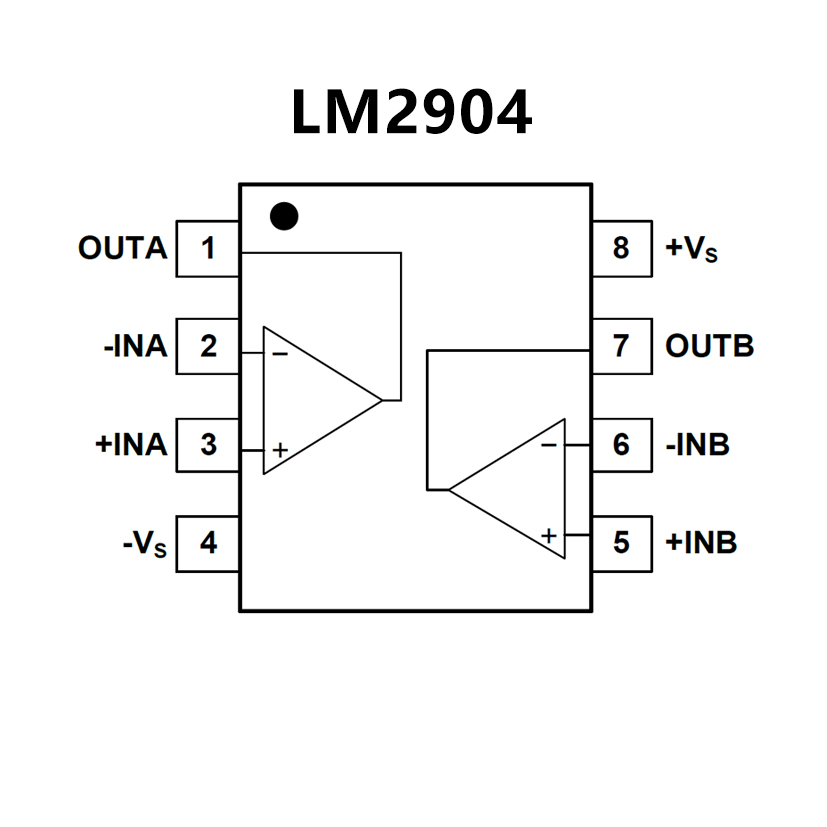

? Available in Green SOIC-8, MSOP-8 and TSSOP-8
Packages
? Operating Voltage +3V to +32V
? Low Operating Current 0.7mA typ.
? Slew Rate 0.6V/μs typ.
? Bipolar Technology
? Package Outline SOP8, DMP8 ,
SSOP8, EQFN12-E2,
MSOP8 (TVSP8) **MEET JEDEC
MO-187-DA / THIN TYPE
? Internal ESD protection Human body
model (HBM) ±2000V typ.
? Wide temperature range -40℃ to +125℃
? Input Offset Voltage Grade
