Industry-Standard Dual Operational Amplifiers for Automotive Applications, LM2904Q P2P LM2904-Q1.
LM2904Q.pdf優(yōu)勢替代
FEATURES
? AEC Q-100 qualified for automotive applications
– Temperature grade 1: –40°C to +125°C
– Device HBM ESD classification 2
– Device CDM ESD classification C5
? Wide supply range of 3 V to 36 V (LM2904B-Q1
and LM2904BA-Q1)
? Supply-current of 300 μA per channel (LM2904B
Q1 and LM2904BA-Q1, typical)
? Unity-gain bandwidth of 1.2 MHz (LM2904B-Q1
and LM2904BA-Q1)
? Common-mode input voltage range includes
ground, enabling direct sensing near ground
? Low input offset voltage of 2 mV at 25°C
(LM2904BA-Q1, maximum)
? Low input offset voltage of 3 mV at 25°C
(LM2904B-Q1, maximum)
? Internal RF and EMI filter (LM2904B-Q1 and
LM2904BA-Q1)
? Functional Safety-Capable
– Documentation available to aid functional safety
system design

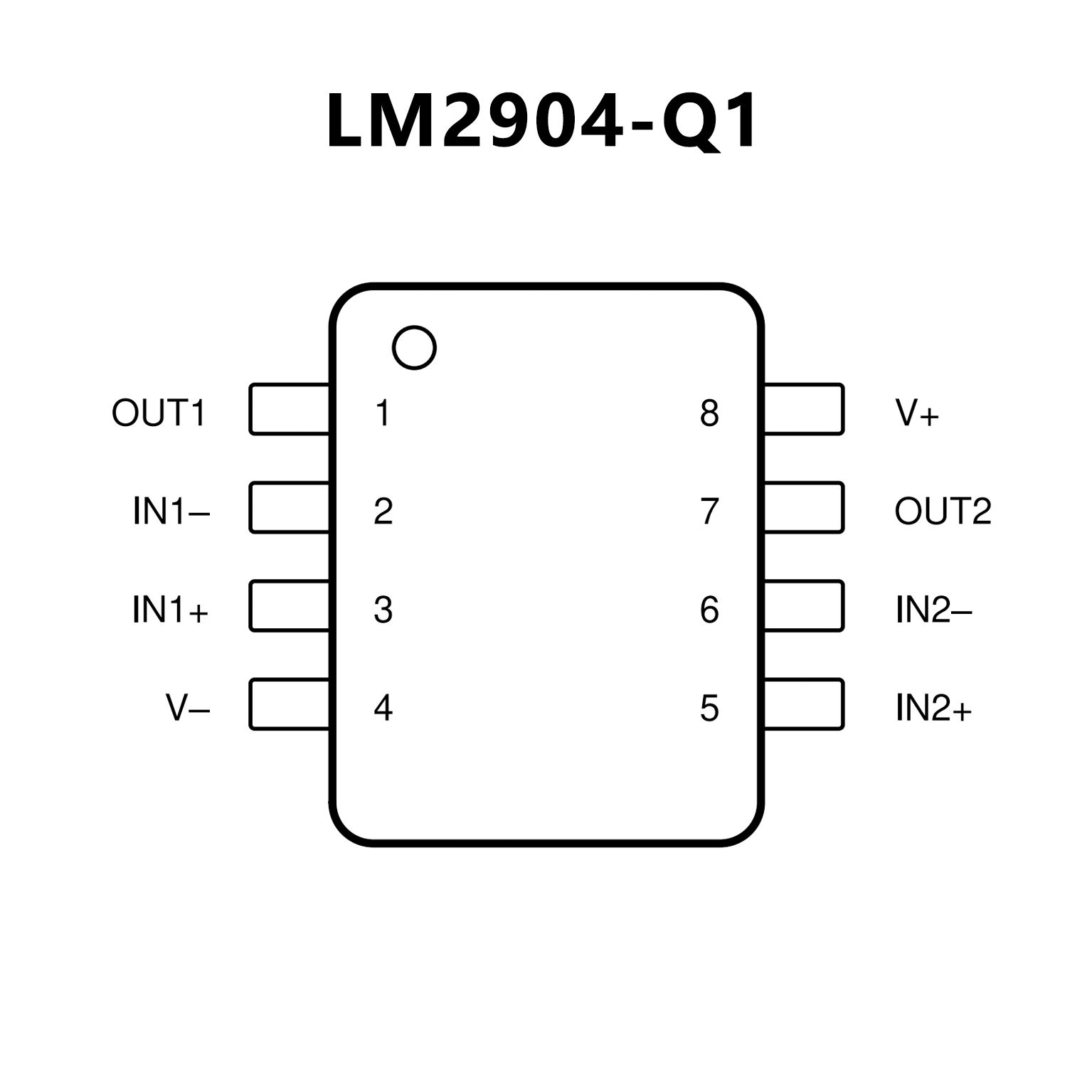

PIN CONFIGUTION
