Power Module for Battery Pack, GS95C4CS-R Replace FC6B21150.
GS95C4CS-R
GS95C4CS-R.pdf
GS95C4CS-R.pdfFEATURES
? Input Voltage up to 12V
? MOSFET Turn on Resistor RSS(ON)
=4.3mohm(typ)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=8A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

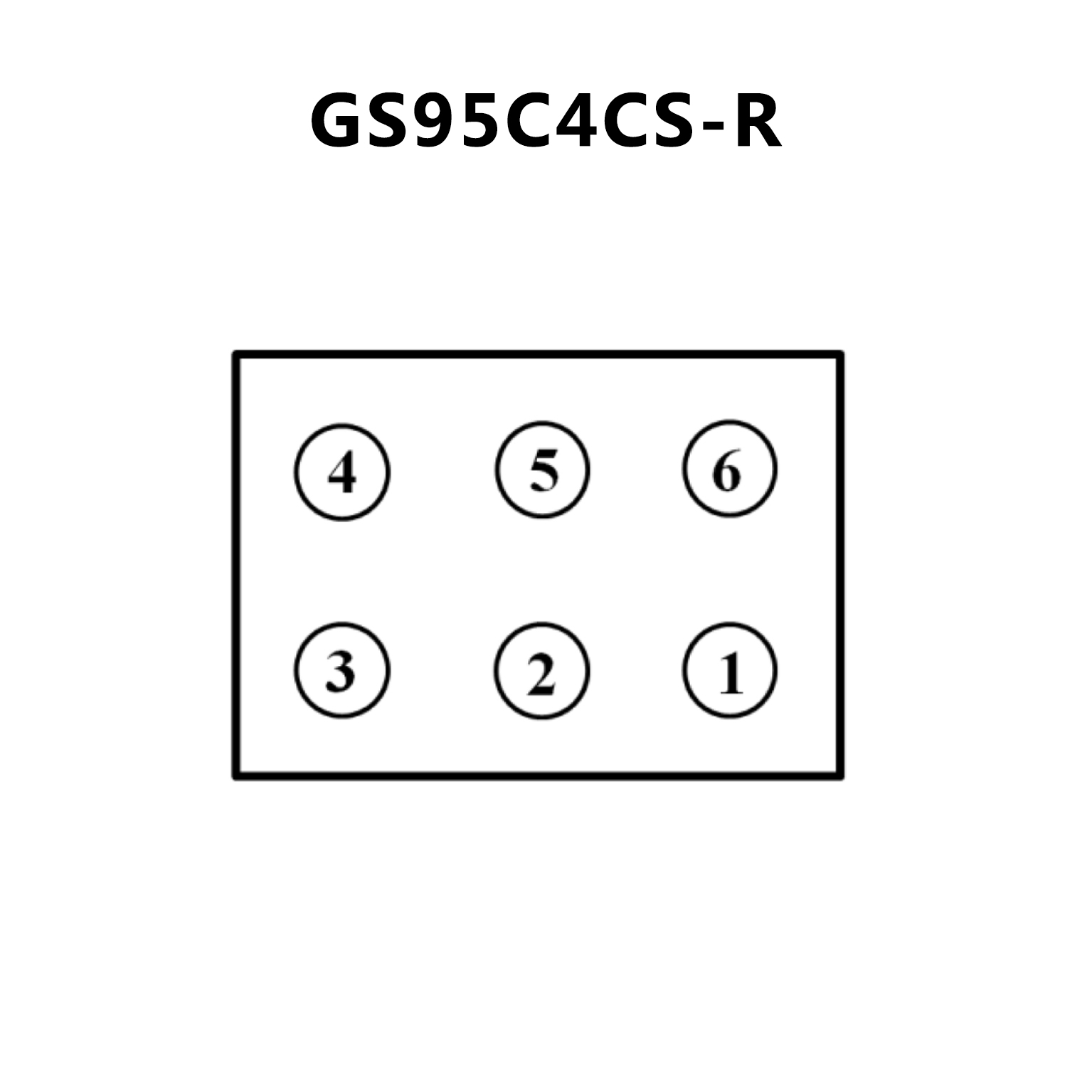

PIN CONFIGUTION
優勢替代
FEATURES
? Low source-source ON resistance:Rss(on) typ. = 4.0 mΩ（VGS = 4.5 V)
? CSP（Chip Size Package)
? RoHS compliant (EU RoHS / MSL:Level 1 compliant)

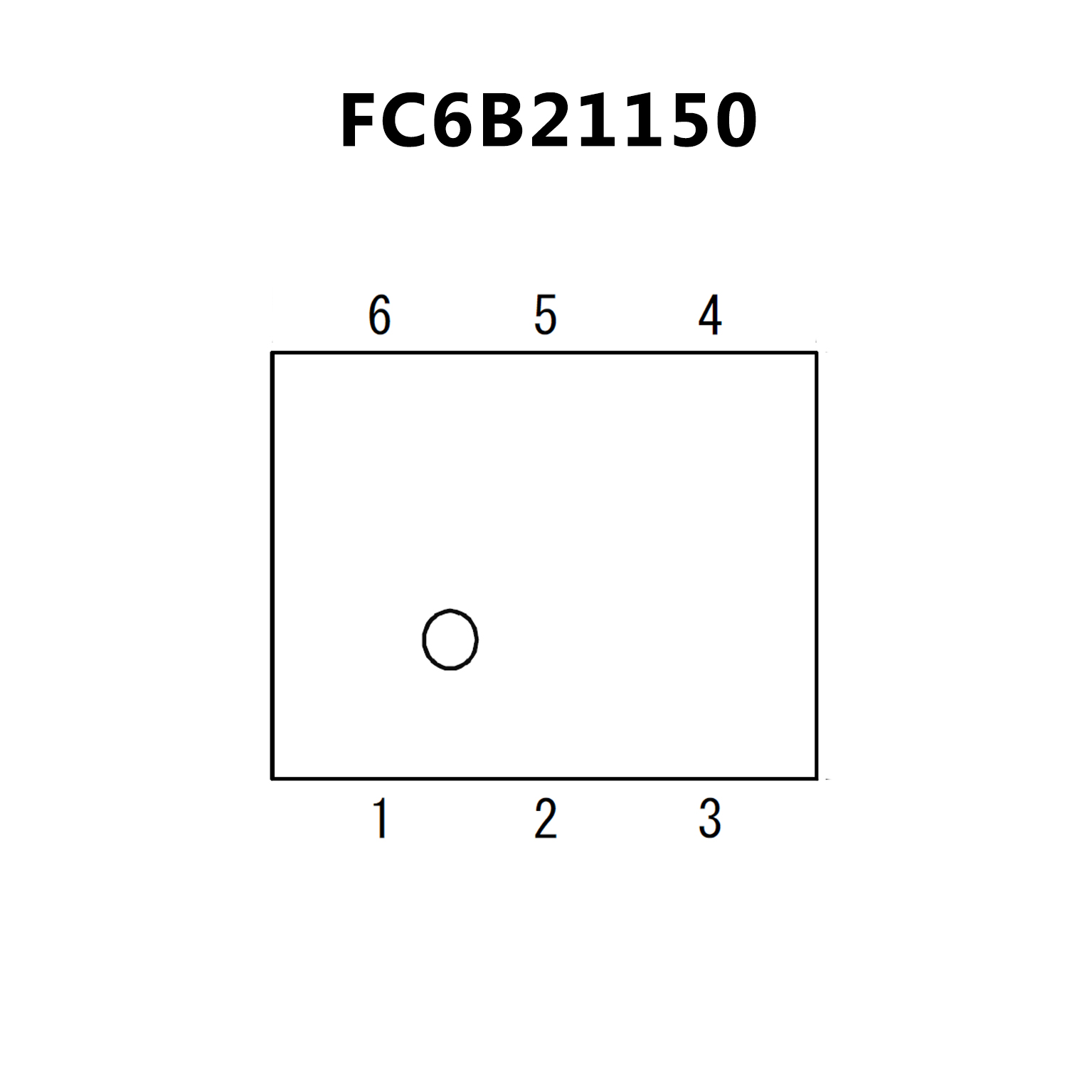

PIN CONFIGUTION
