3A,24V,340KHz Synchronous Step-Down Converter,EUP3284 Replace ZTP7173.
EUP3284
EUP3284.pdf
EUP3284.pdfFEATURES
? 3A Output Current
? Automatic Pulse Skipping Mode at Light Load
? Integrated 160m?/110m? DMOS Switches
? 4.5V to 24V Input Operating Range
? Output Adjustable from 0.92V to 20V
? Up to 94% Efficiency
? 3μA Shutdown Current
? Fixed 340KHz Frequency
? Programmable Soft-Start
? Thermal Shutdown and Overcurrent Protection
? Input Supply Overvoltage and Undervoltage
Lockout
? 220ns Minimum On Time
? Available in SOP-8 (EP) Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

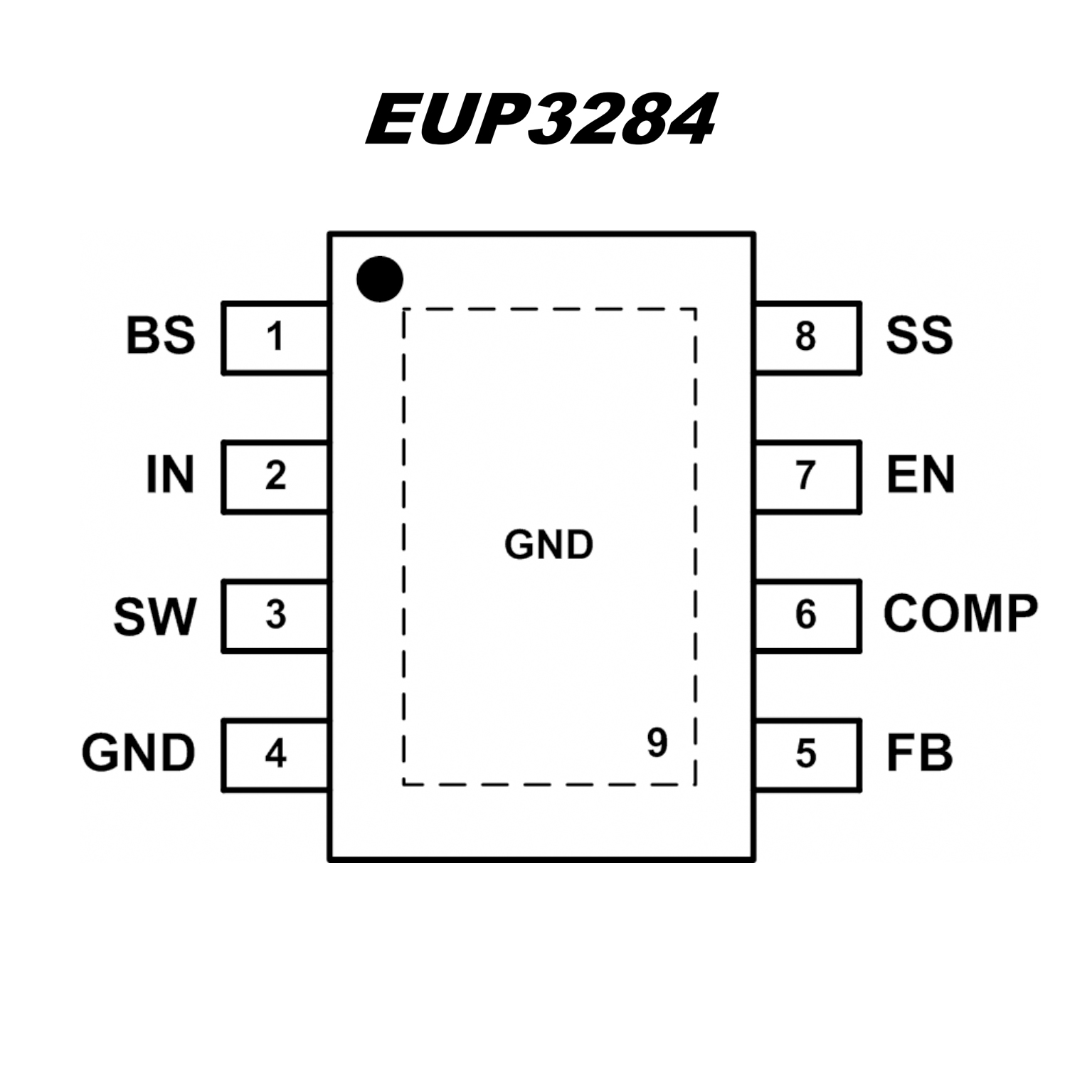

PIN CONFIGUTION
優(yōu)勢替代
