EUP3284.pdf? 3A Output Current
? Automatic Pulse Skipping Mode at Light Load
? 33V Input Surge Protection
? Integrated 160m?/110m? DMOS Switches
? 4.5V to 30V Input Operating Range
? Output Adjustable from 0.92V to 20V
? Up to 94% Efficiency
? 3μA Shutdown Current
? Fixed 340KHz Frequency
? Programmable Soft-Start
? Thermal Shutdown and Overcurrent Protection
? Input Supply Overvoltage and Undervoltage Lockout
? 220ns Minimum On Time

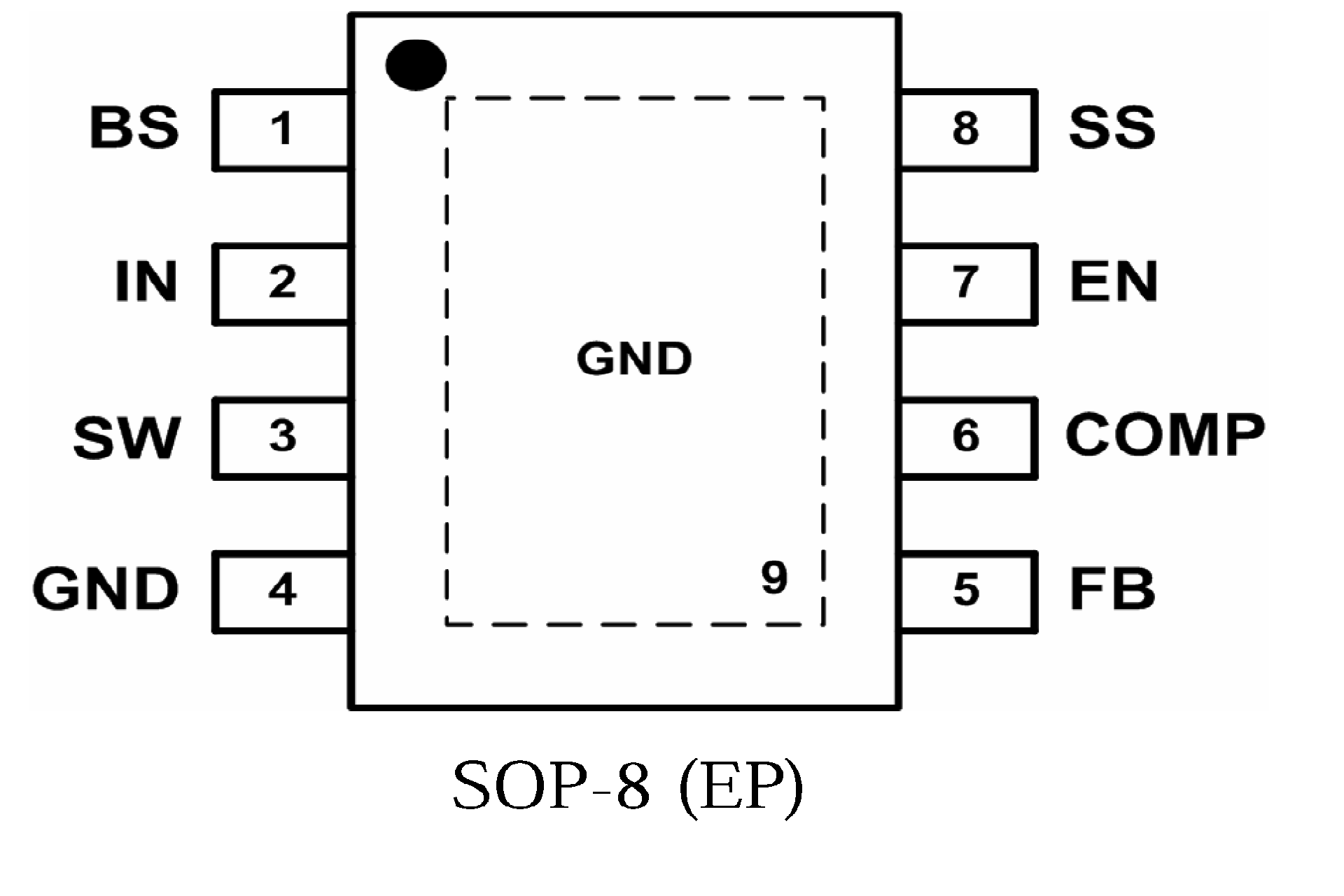

? Available in SOP-8 (EP) Package
? RoHS Compliant and 100% Lead(Pb)-Free Halogen-Free
? ±1.5% High Accuracy Reference Voltage
? 4.5V to 18V Input Voltage Range
? 3A Output Current
? Integrated N-MOSFET Switches
? Current Mode Control
? Fixed Frequency Operation : 340kHz
? Output Adjustable from 0.925V to 15V
? Up to 95% Efficiency
? Programmable Soft-Start
? Stable with Low ESR Ceramic Output Capacitors
? Cycle-by-Cycle Over Current Protection
? Input Under Voltage Lockout
? Output Under Voltage Protection
? Thermal Shutdown Protection
? RoHS Compliant and Halogen Free
