3A, 1MHz, Synchronous Step-Down Converter, EUP3226 Replace RT8068A.
EUP3226
EUP3226.pdf
EUP3226.pdfFEATURES
? 2.7V to 5.5V Input Voltage Range
? High Efficiency up to 96%
? 3A Available Load Current
? 69/45m? Integrated PFET/NFET Switches
? 1MHz Switching Frequency
? 100% Duty Cycle Low Dropout Operation
? Short Circuit and Thermal Protection
? Integrated UVLO and Power Good
? Excellent Line and Load Transient Response
? Available in 10-Pin 3mm× 3mm TDFN Package
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

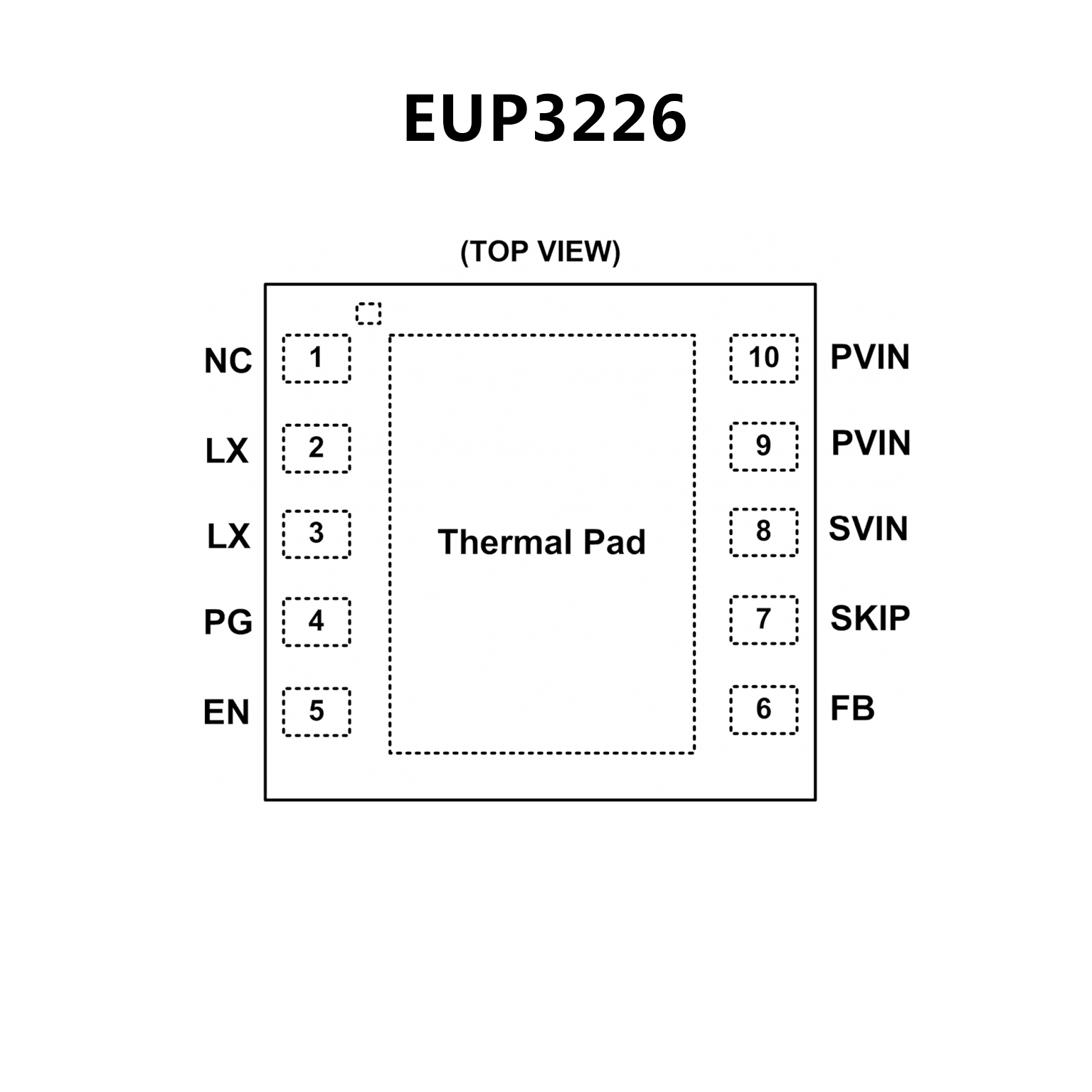

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? High Efficiency : Up to 95%
? Low RDS(ON) Internal Switches : 69mΩ/49mΩ at VIN= 5V
? Fixed Frequency : 1MHz
? No Schottky Diode Required
? Internal Compensation
? 0.6V Reference Allows Low Output Voltage
? Low Dropout Operation : 100% Duty Cycle
? OCP, UVP, OVP, OTP
? RoHS Compliant and Halogen Free

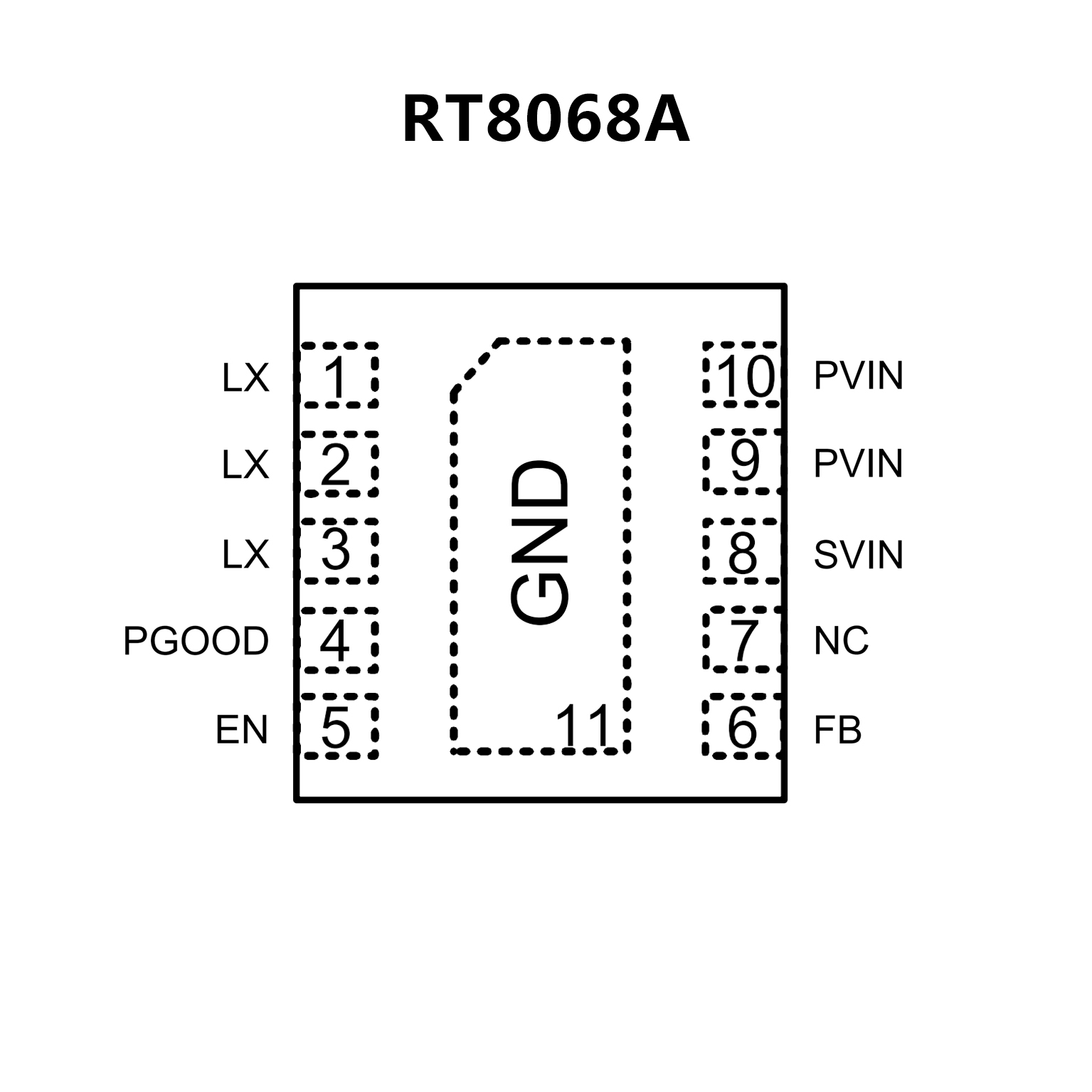

PIN CONFIGUTION
