EUP3216.pdf? 3.3V to 5.5V Power Input Voltage Range
? Minimum External Components Count
? 6A Available Load Current
? 35m? Integrated FET Switches
? Selectable 0.8MHz to 1.2MHz Frequency
? PWM Mode and Pulse-Skip Mode
? Integrated complete protection
? Excellent Line and Load Transient Response
? Internal Soft-start with 1.6ms
? Adjustable Output Voltage from 0.6V to 2 V
? Available in 20pin 4mm× 4mm TQFN Package
with Exposed Pad
? RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free
? TI proprietary Integrated MOSFET and Packaging
Technology
? Supports DDR Memory Termination with up to 6-A
Continuous Output Source or Sink Current
? External Tracking
? Minimum External Components Count
? 1-V to 6-V Conversion Voltage
? D-CAP+TM Mode Architecture
? Supports All MLCC Output Capacitors and
SP/POSCAP
? Selectable SKIP Mode or Forced CCM
? Optimized Efficiency at Light and Heavy Loads
? Selectable 600-kHz or 1-MHz Switching
Frequency
? Selectable Overcurrent Limit (OCL)
? Overvoltage, Over-Temperature and Hiccup
Undervoltage Protection
? Adjustable Output Voltage from 0.6 V to 2 V

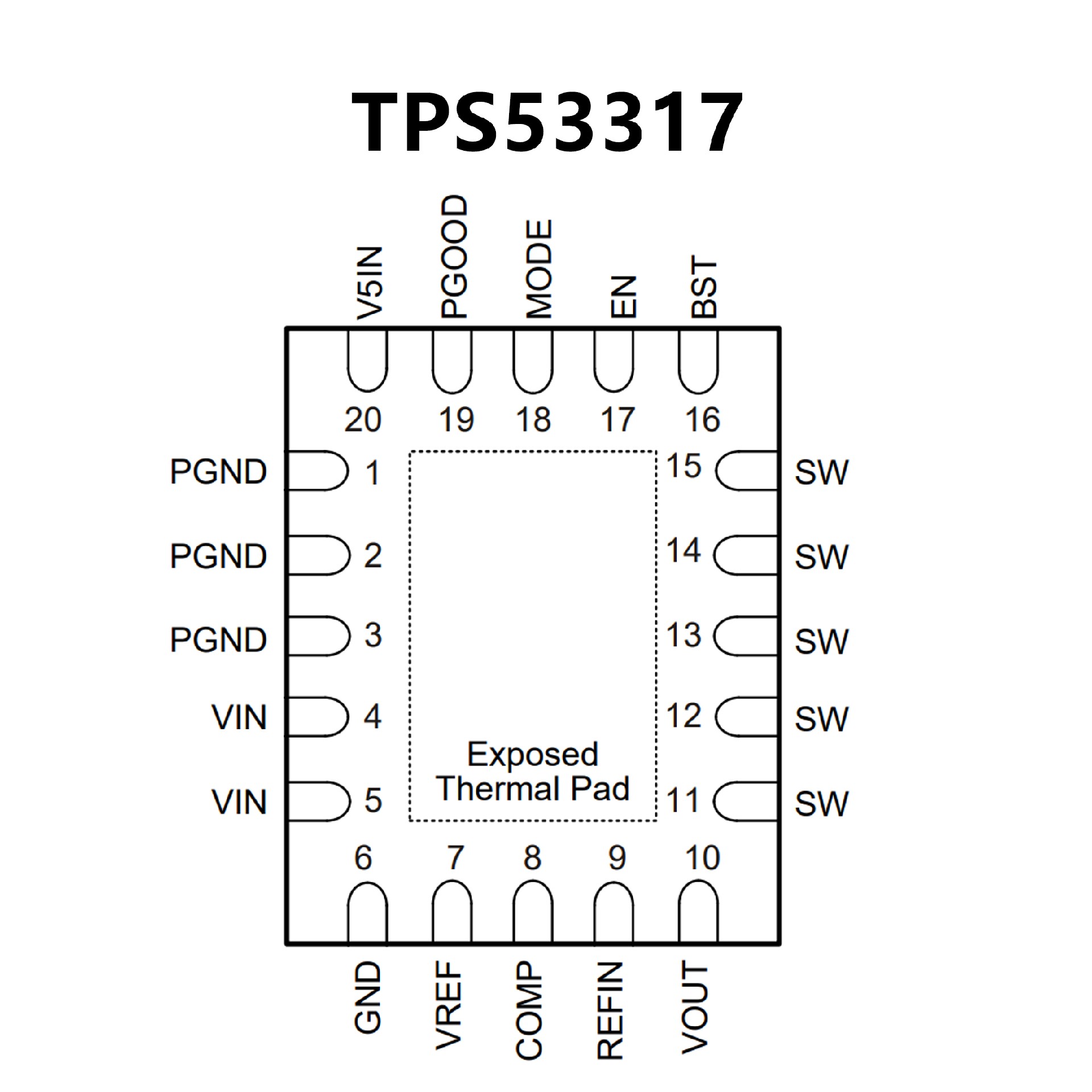

? 3.5 mm × 4 mm, 20-Pin VQFN Package
