1MHz,3A Synchronous Step-Down Converter with Soft Start,EUP3084 Replace G2823D.
EUP3084
EUP3084.pdf
EUP3084.pdfFEATURES
? High Efficiency up to 95%
? Low RDSON for internal switches:
High-side: 100m?
Low-side: 60m?
? 2.7V to 5.5V Input Voltage Range
? 3A Available Load Current
? 30μA Typical Quiescent Current
? 1MHz Constant Switching Frequency
? Adjustable Output Voltage as Low as 0.6V
? 100% Duty Cycle Low Dropout Operation
? Short Circuit and Thermal Protection
? Excellent Line and Load Transient Response
? Soft Start Function
? Power Good
? Available in TDFN-10L(3×3) Package
? RoHS Compliant and Halogen-Free

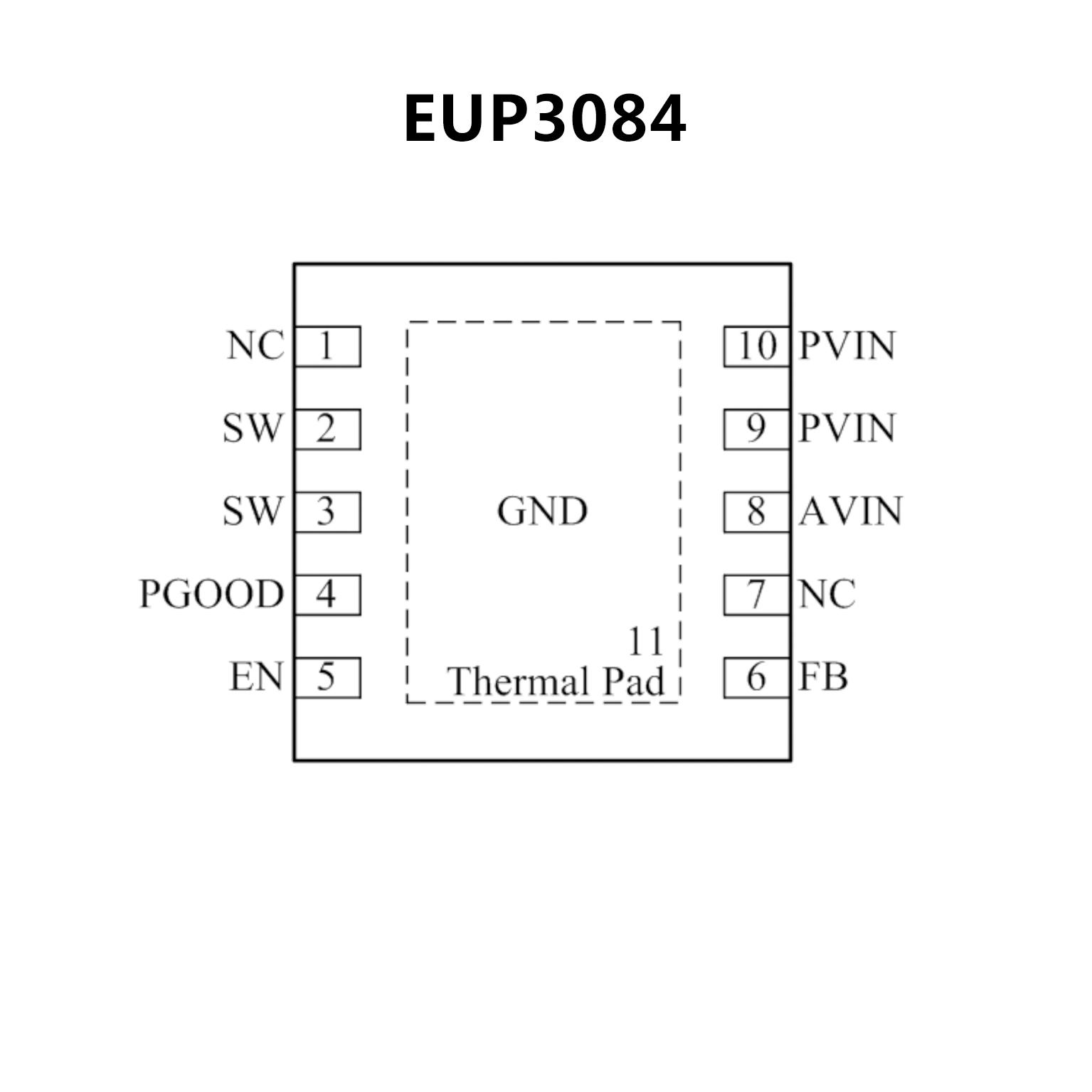

PIN CONFIGUTION
