Low Capacitance TVS Diode Array,EPSR70 Replace SR70.
EPSR70.pdf優勢替代
FEATURES
? ESD protection to
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 24A (8/20μs)
? Array of surge rated diodes with internal TVS Diode
? Protects two I/O lines
? Low capacitance (<10pF) for high-speed interfaces
? Low clamping voltage
? Low operating voltage: 5.0V
? Solid-state silicon-avalanche technology

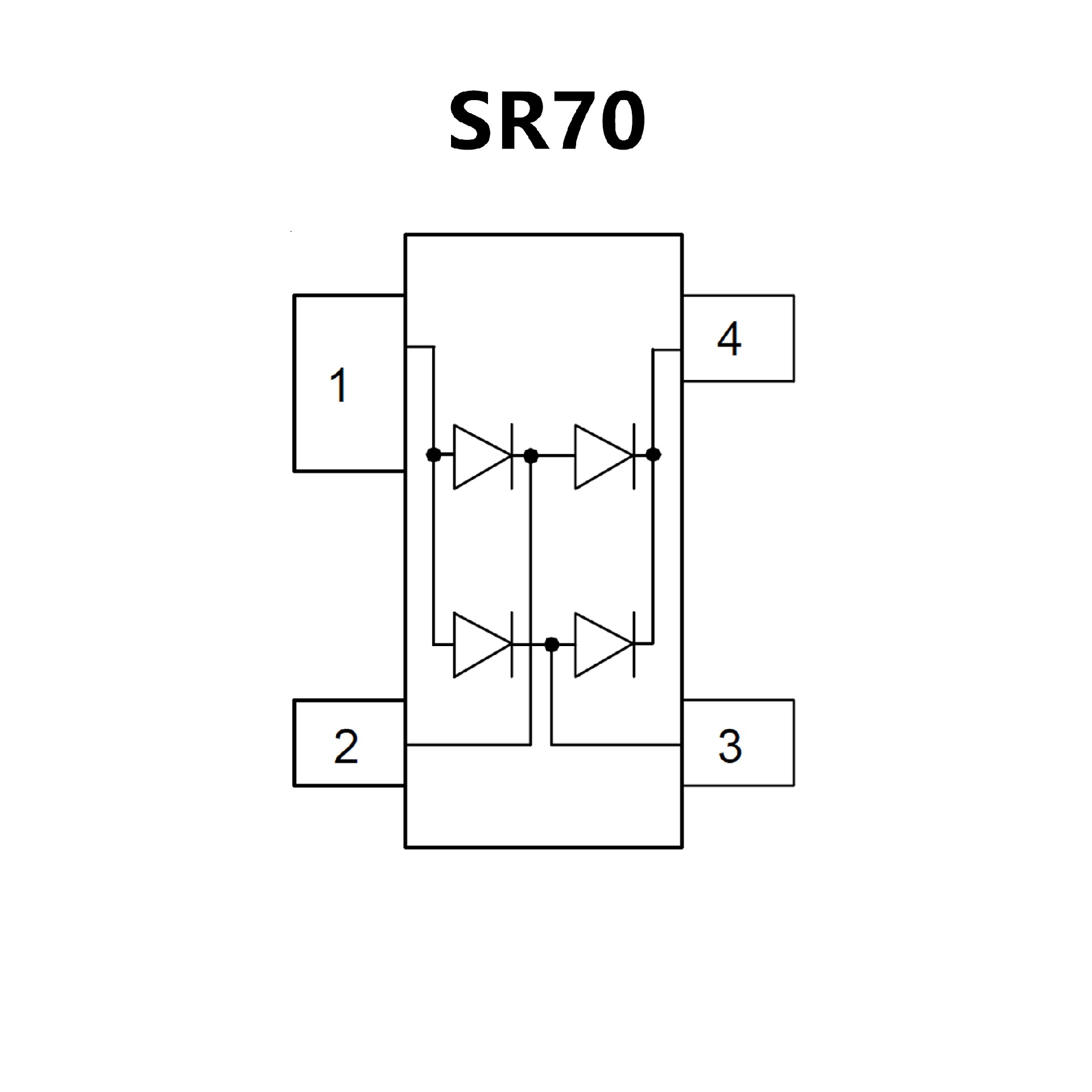

PIN CONFIGUTION
