ESD Protection Diode Array,5-Line,ELU0550T6 Replace SMF05C.
ELU0550T6.pdf優(yōu)勢替代
FEATURES
? Peak Power Dissipation
? 100 W (8 x 20 μs Waveform)
? ESD Rating of Class 3B (Exceeding 8 kV) per
Human Body Modeland Class C
(Exceeding 400 V) per Machine Model.
? Compliance with IEC 61000?4?2
(ESD) 15 kV (Air), 8 kV (Contact)
? Flammability Rating of UL 94 V?0
? SZ Prefix for Automotive and
Other Applications Requiring Unique
Site and Control Change Requirements;
AEC?Q101 Qualified and PPAP Capable
? Pb?Free Packages are Available*

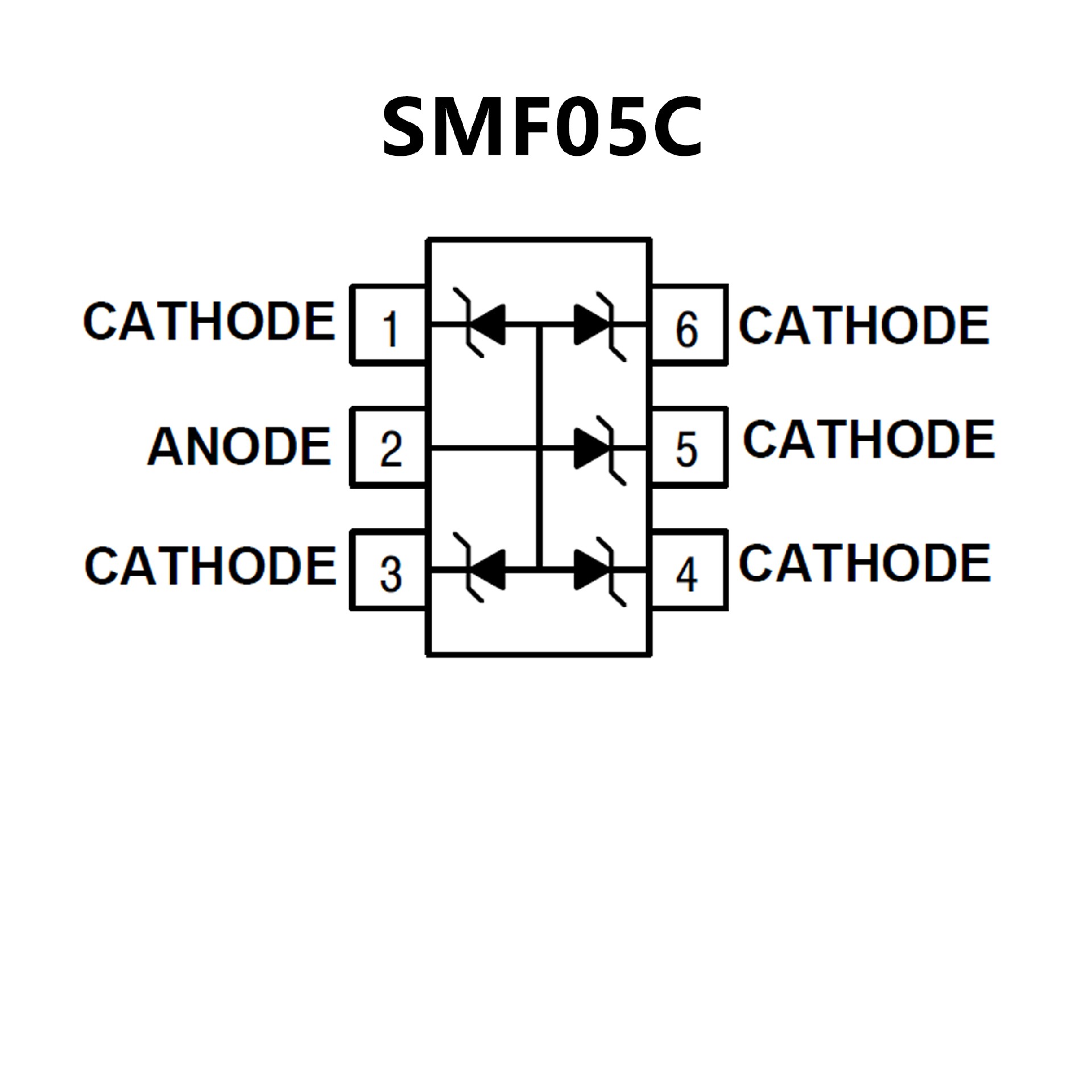

PIN CONFIGUTION
