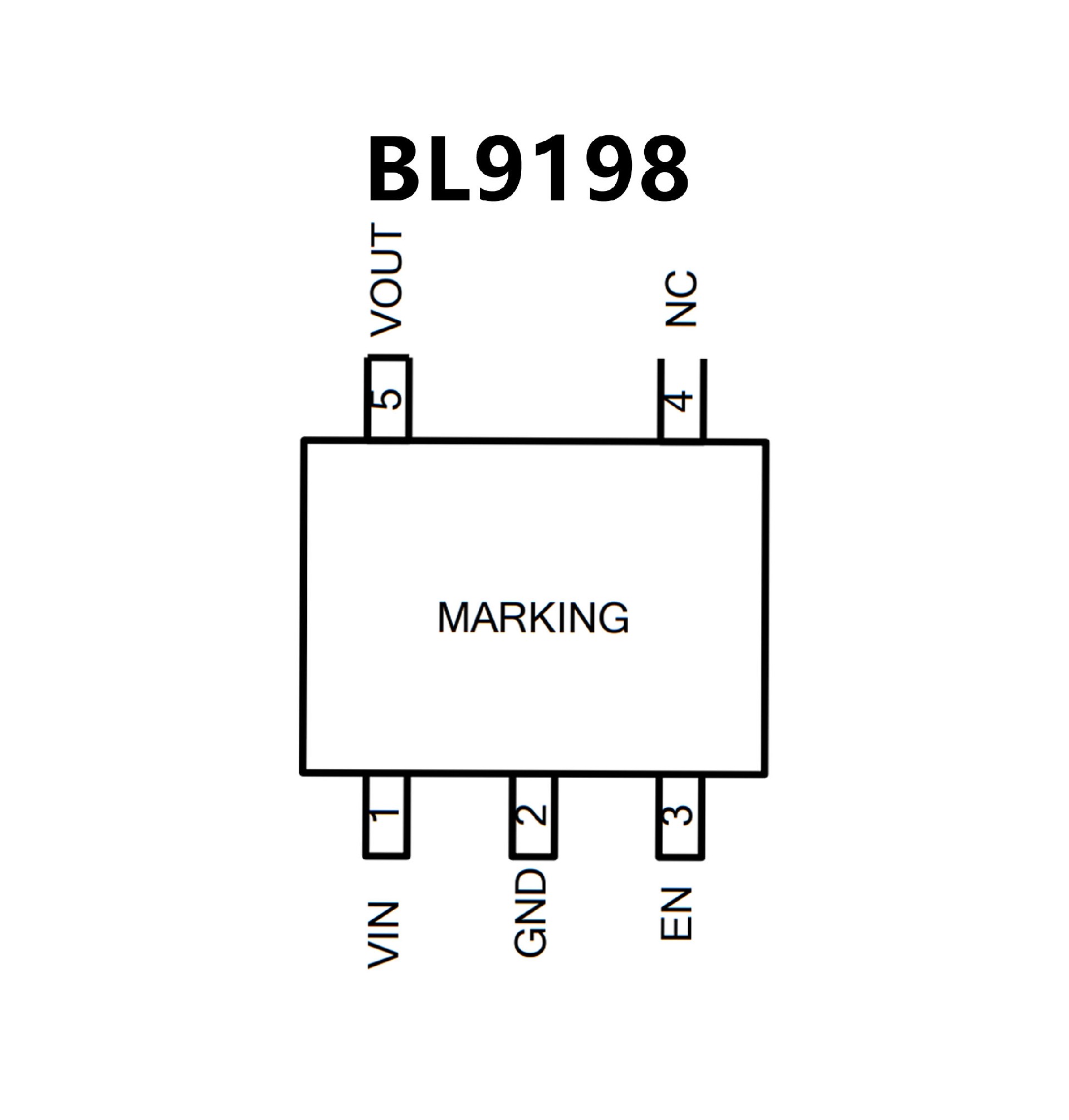

BL9198.pdf? Ultra-low Noise for RF Application
? Ultra-Fast Response in Line/Load Transient
? <0.01μA Standby Current When Shutdown.
? Low Dropout:210mV@300mA
? Wide Operating Voltage Ranges:2V to 6V
? TTL-logic-Controlled Shutdown Input
? Low Temperature Coefficient
? Current Limiting Protection
? Thermal Shutdown Protection
? Only 1μF Output Capacitor Required for Stability
? High Power Supply Rejection Ratio
? Custom Voltage Available
? Fast output discharge
? Available in 5-Lead SOT-23 and SC-70 Package

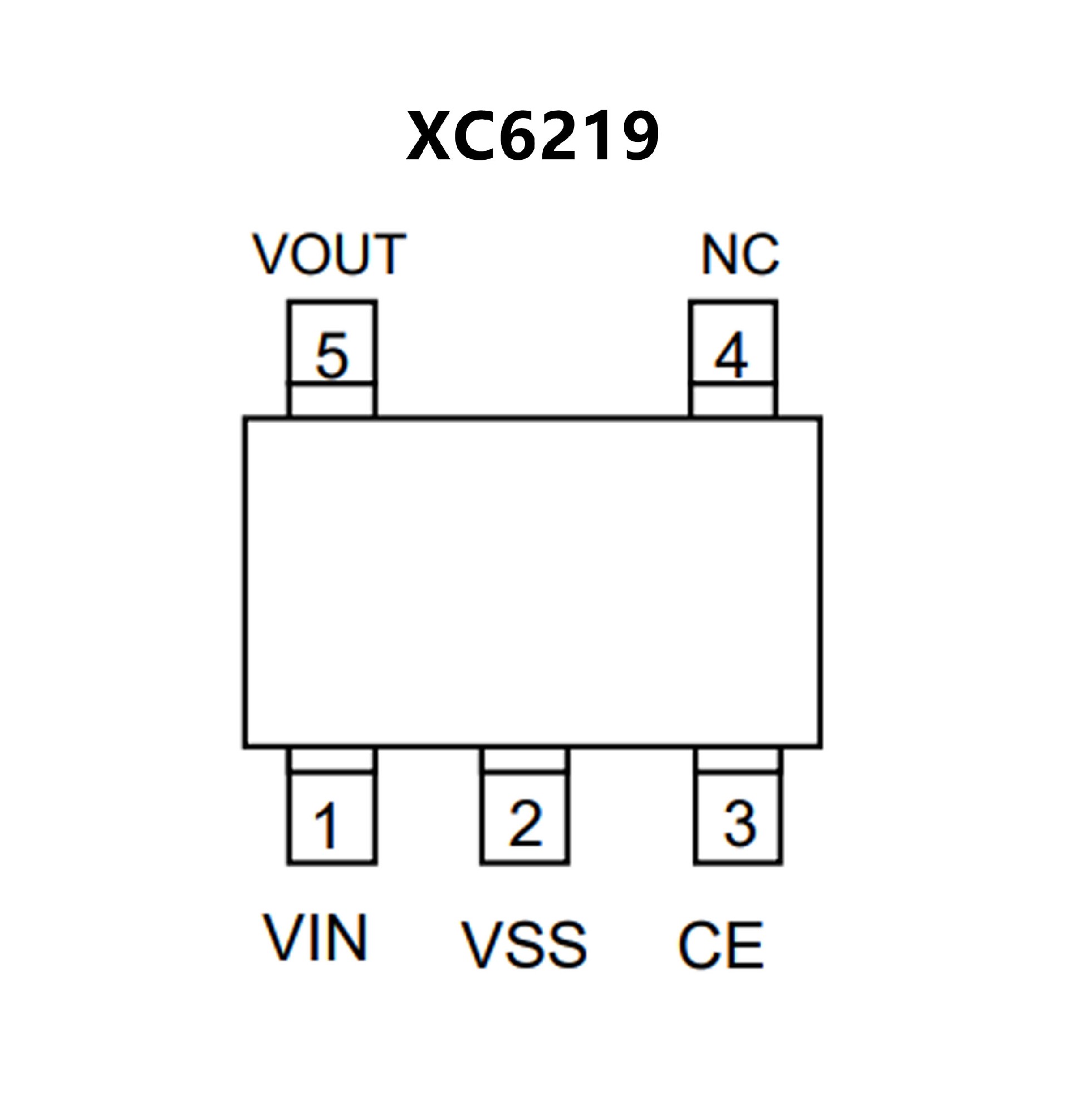

? Maximum Output Current:
150mA (VOUT<1.75V, A~D type)
240mA (VOUT>1.8V, A~D type) 3
00mA (VOUT>1.3V, E~H type)
? Dropout Voltage : 200mV @ 100mA
? Operating Voltage Range : 2.0V ~ 6.0V
? Output Voltage Range : 0.9V ~ 5.0V (0.05V steps)
? Highly Accuracy: +2% (VOUT>1.5V) +30mV
(VOUT≦1.5V) +1% (VOUT≧3.0V)
? Low Power Consumption: 25μA (TYP.)
? Standby Current : Less than 0.1μA (TYP.)
? High Ripple Rejection : 65dB @10kHz
? Operating Ambient Temperature: -40℃ ~ 85℃
? Low ESR Capacitor : Ceramic capacitor compatible
? Ultra Small Packages: SOT-25 SOT-89-5 USP-6B
? Environmentally Friendly: EU RoHS Compliant, Pb Free
