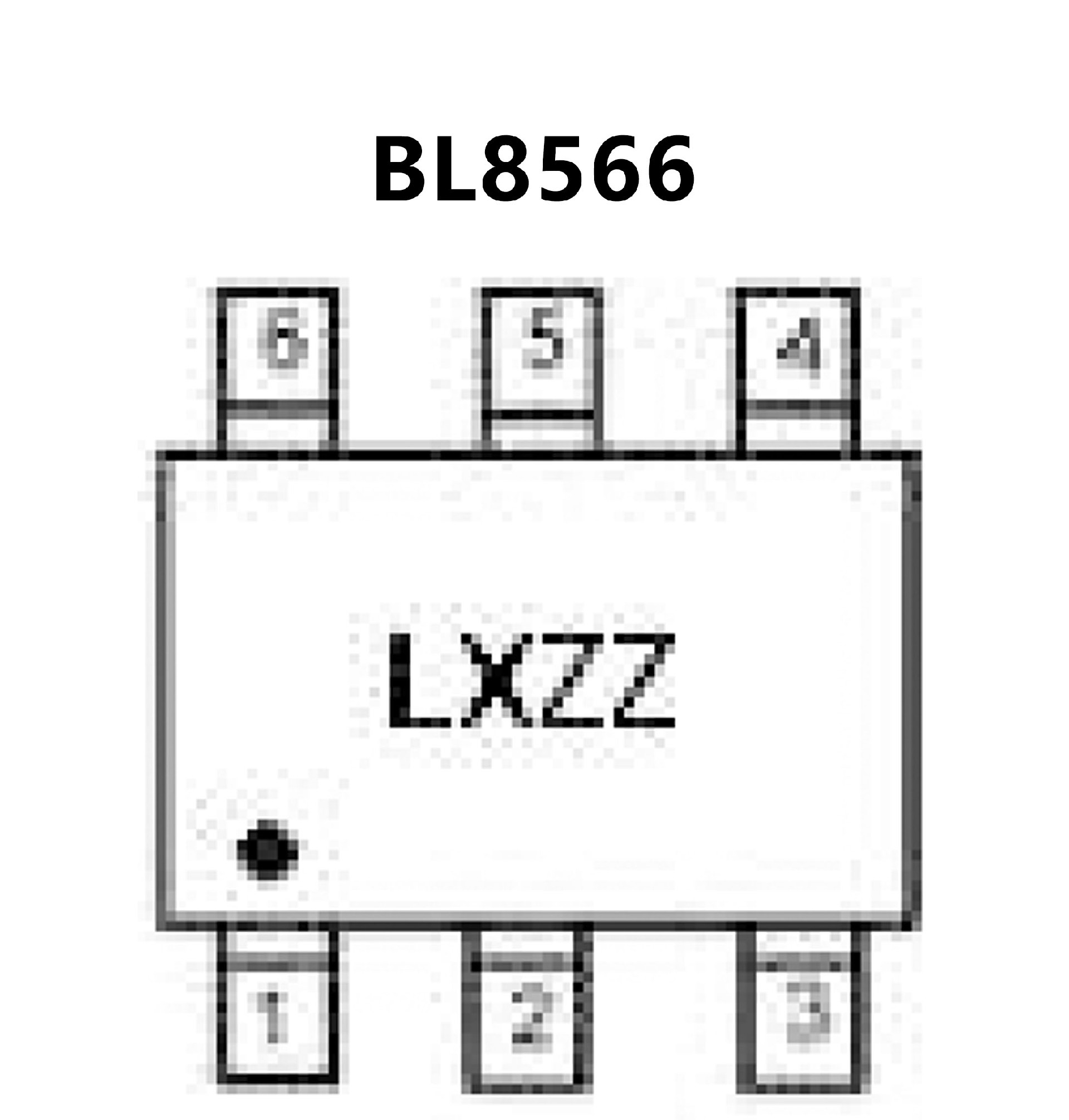

BL8566.pdf? Two low dropout voltage regulators
? 300mA output current for each LDO
? 25uA operating supply current per LDO
? Low 47uVRMS output noise
? Standby Mode: 0.1μA
? Low 160mV dropout at 300mA load
? 73dB PSRR at 100Hz
? Excellent Line regulation: 0.05%/V
? Independent Shutdown controls
? 1.2V to 3.5V Factory-Preset Output
? Output Current Limit
? Highly Accurate: ±2% (±1% customized)

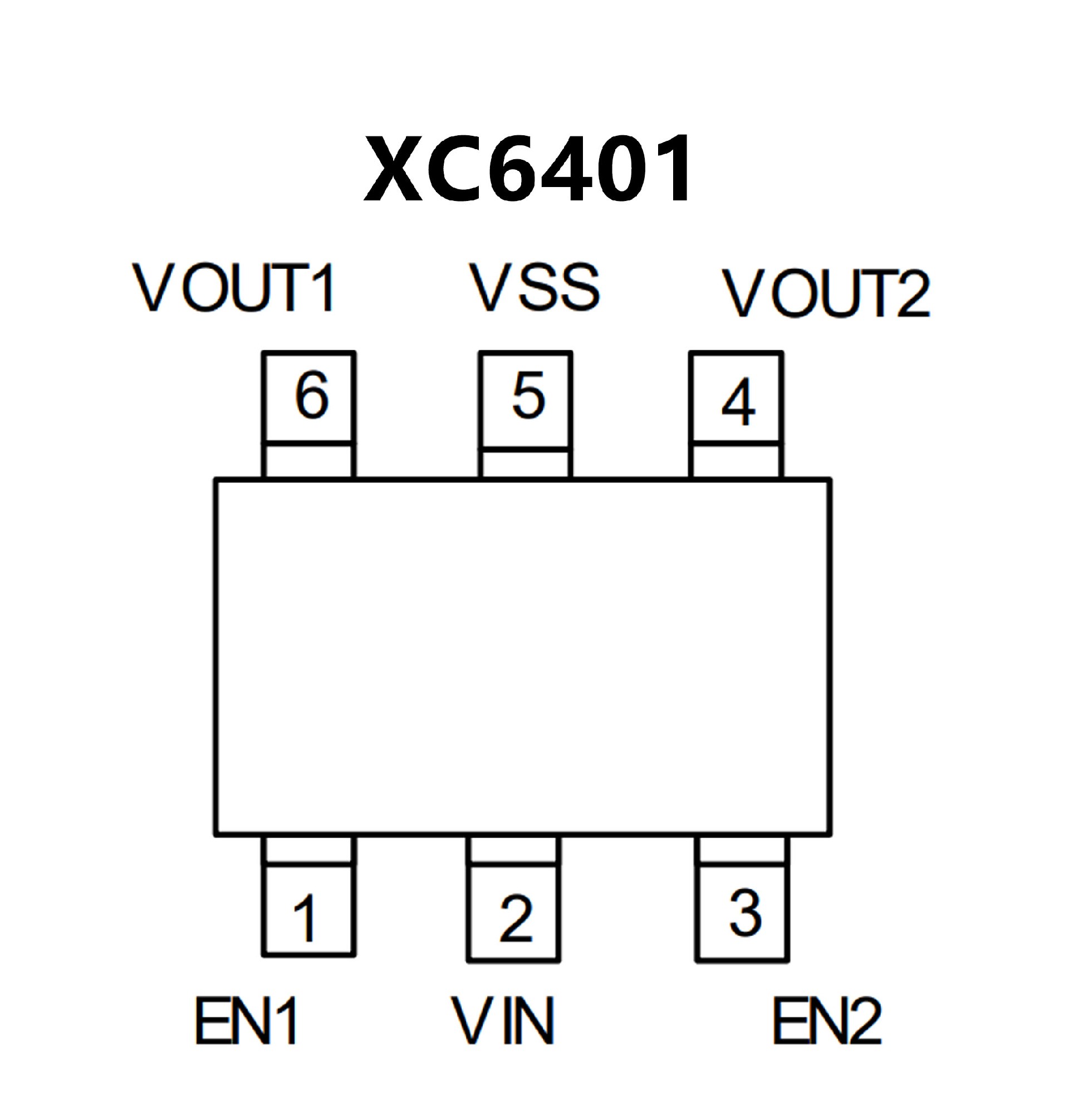

? Maximum Output Current : More than 150mA (300mA limit)
? Dropout Voltage : 100mV @100mA
? Operating Voltage Range : 1.5V ~ 6.0V
? Output Voltage Range : 0.8V~5.0V (0.05V increments)
? Highly Accurate : ±2% (VOUT>1.5V) : ±30mV (VOUT≦1.5V)
? Low Power Consumption : 25μA (TYP.)
? Standby Current : Less than 0.1μA (TYP.)
? High Ripple Rejection : 70dB @1kHz
? Operating Ambient Temperature : -40℃ ~ +85℃
? Low ESR Capacitor Compatible : Ceramic capacitor
? Low Output Noise
? Packages : SOT-26W, USP-6B, USP-6C
? Environmentally Friendly : EU RoHS Compliant, Pb Free
