500mA High PSRR, Low Dropout Voltage Linear Regulator,BL8565 Replace RT9162.
BL8565
BL8565.pdf
BL8565.pdfFEATURES
? Low Power Consumption: 20uA（Typ.）
? Low output noise (47uVRMS)
? Low dropout Voltage: 0.16V@300mA(Typ.)
? High Ripple Rejection: 73dB@100Hz(Typ.)
? Low Temperature Coefficient: ±100ppm/°C
? Excellent Line regulation: 0.05%/V
? Build-in chip enable and discharge circuit
? Output Voltage Range: 1.5V~4.5V
(customized on command every 0.1Vstep)
? Highly Accurate: ±2%
? Output Current Limit

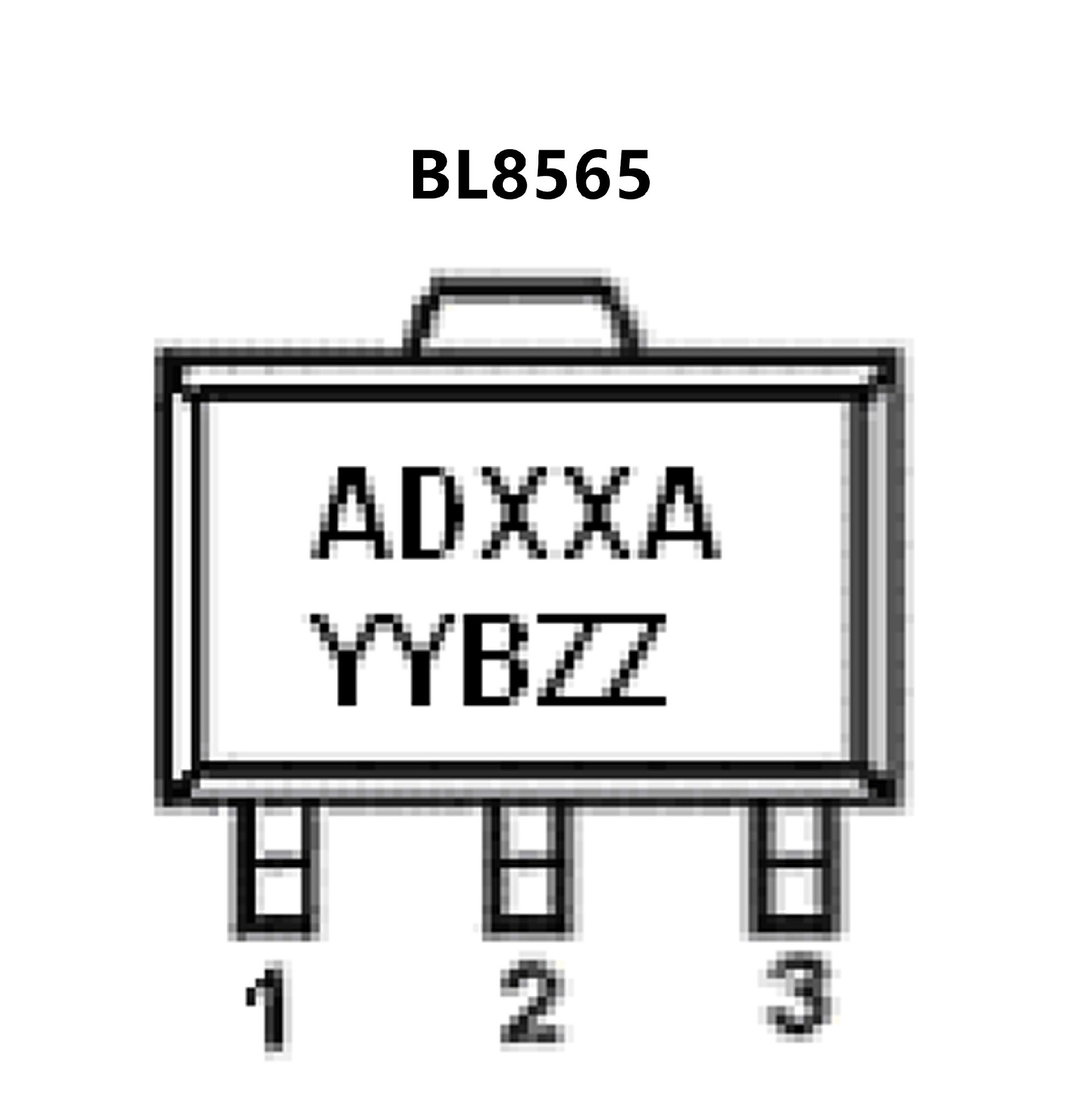

PIN CONFIGUTION
優勢替代
FEATURES
? Low Dropout, Maximum 1.3V at 300mA
? Fast Transient Response
? ± 2% Total Output Regulation
? 0.4% Line Regulation
? 0.4% Load Regulation
? SOT-89 and TO-92 Packages
? RoHS Compliant and 100% Lead (Pb)-Free

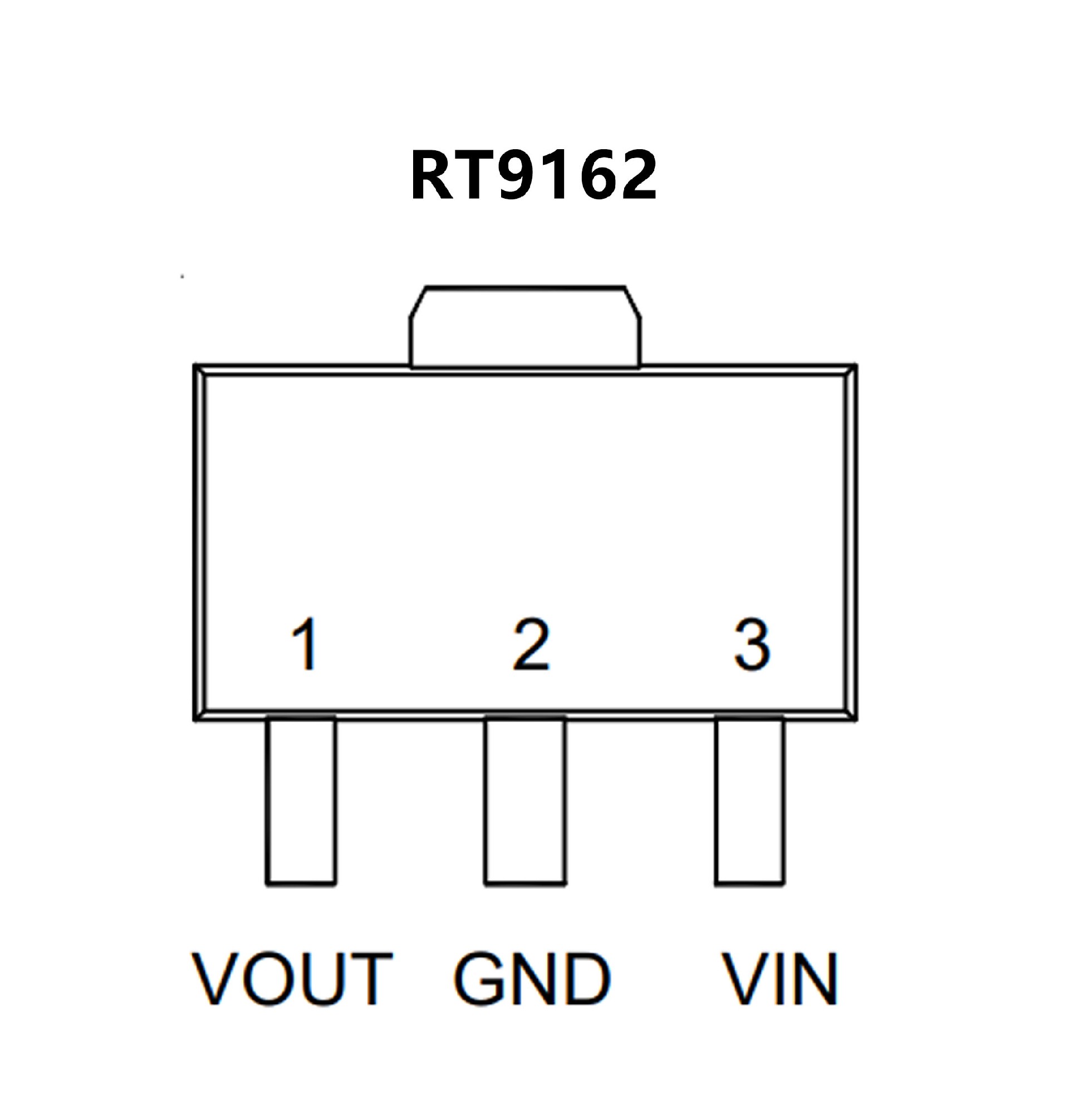

PIN CONFIGUTION
