500mA High PSRR, Low Dropout Voltage Linear Regulator,BL8565 Replace FS8853.
BL8565
BL8565.pdf
BL8565.pdfFEATURES
? Low Power Consumption: 20μA（Typ.）
? Low output noise (47uVRMS)
? Low dropout Voltage: 0.16V@300mA (Typ.)
? High Ripple Rejection: 73dB@100Hz (Typ.)
? Low Temperature Coefficient: ± 100ppm/°C
? Excellent Line regulation: 0.05%/V
? Build-in chip enable and discharge circuit
? Output Voltage Range: 1.5V~4.5V
(customized on command every 0.1V step)
? Highly Accurate: ±2% ? Output Current Limit
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low dropout voltage 400mV at 300mA (Typ.)
? Up to ±35mV output voltage accuracy (VIN≦7V)
? Preset at 1.8V, 3.3V
? Mask options from 1.5V to 5.0V
? Quiescent current 30μA at 5V input (Typ.)
? Small output capacitor
? Output current limit
? Thermal overload shutdown protection
? SOT-89 and SOT-23 Package

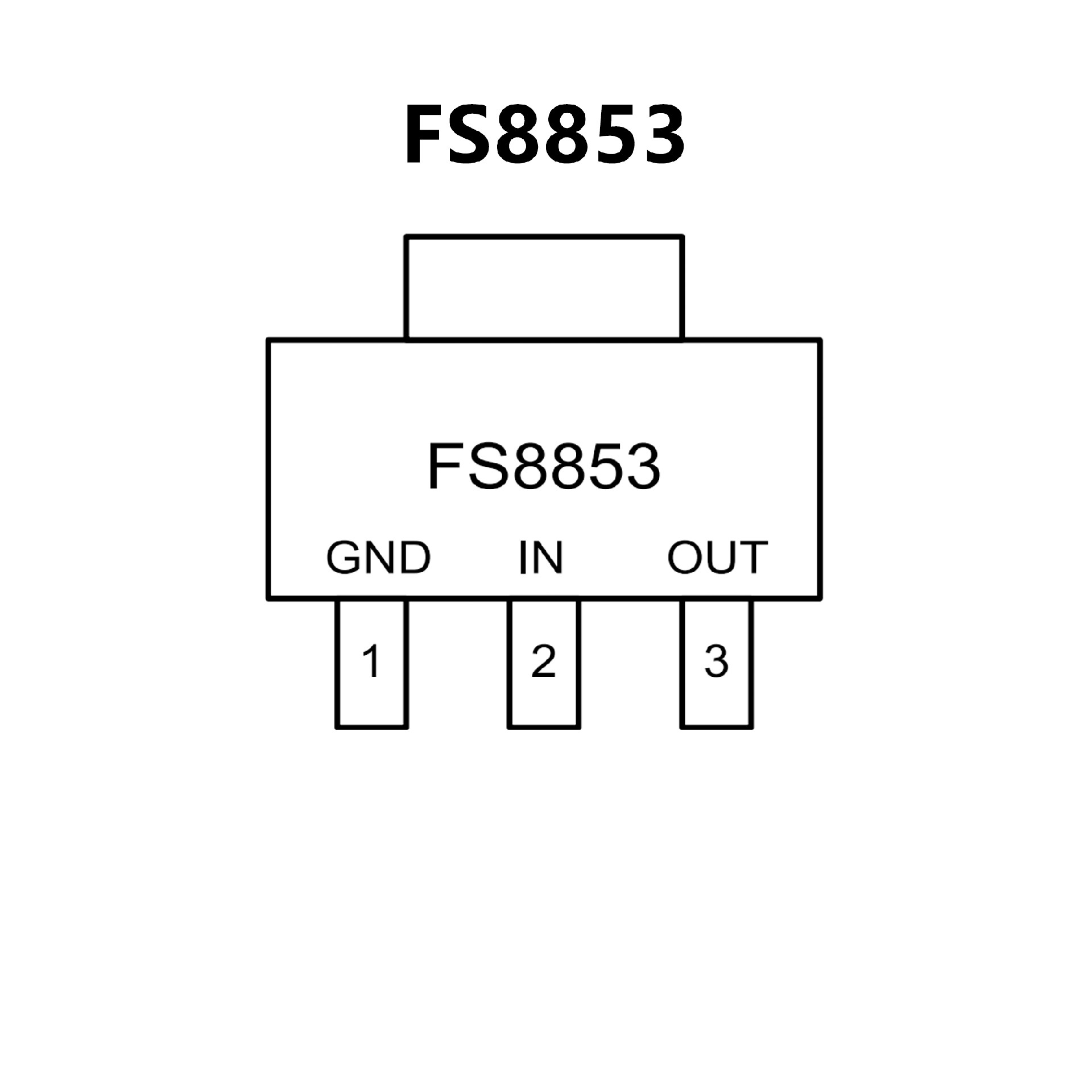

PIN CONFIGUTION
