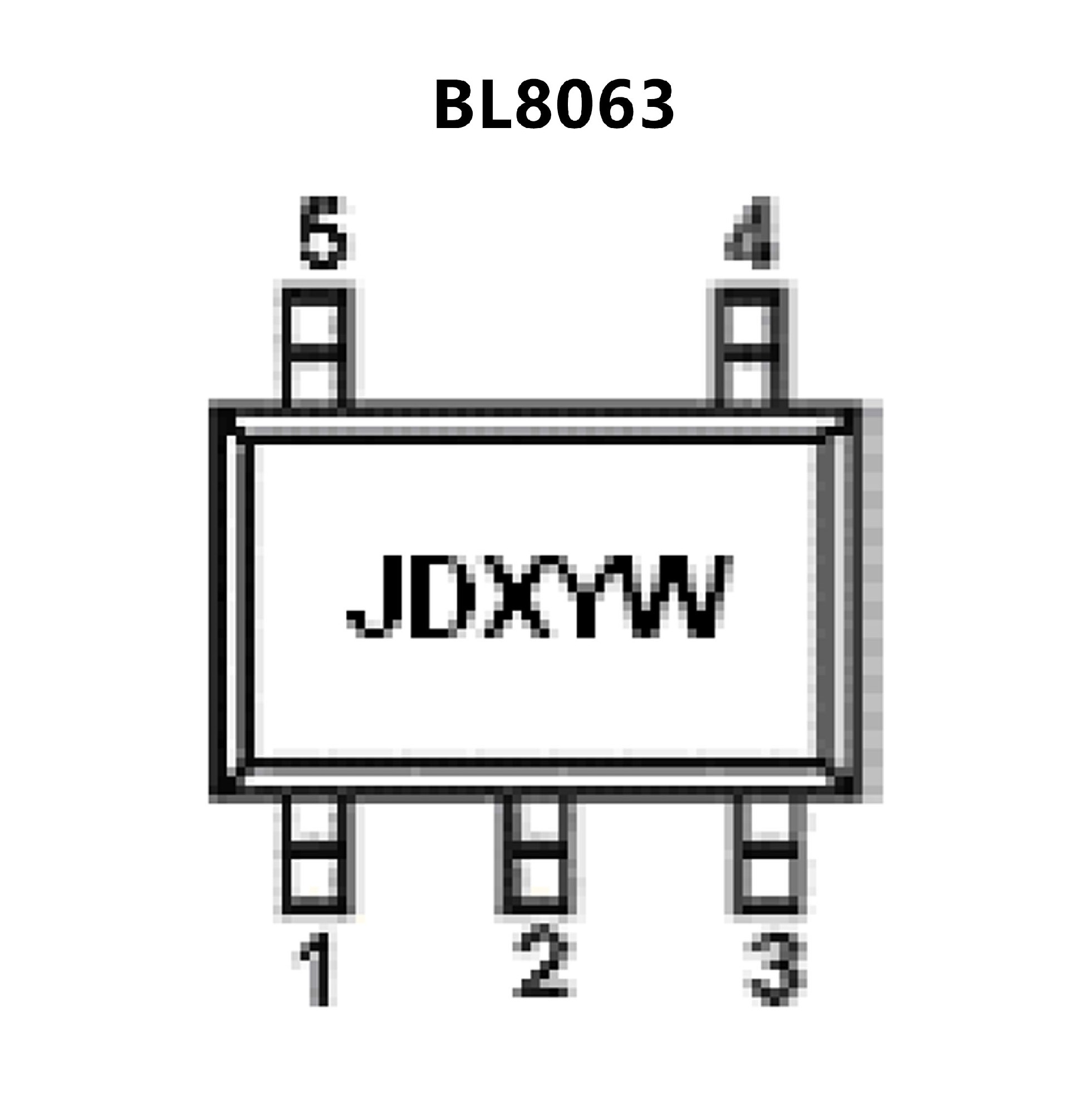

BL8063.pdf? Input voltage range: 2 – 6V
? Output voltage range: 1.0V~4.5V
(customizedon command every 0.1V step)
? Low power consumption: 35uA (Typ.)
? Low output noise (47uVRMS)
? Shutdown mode: 0.1uA
? Low dropout voltage: 300mV@300mA (Typ.)
? High ripple rejection:70dB@1KHz (Typ.)
? Low temperature coefficient: ±100ppm/℃
? Excellent line regulation: 0.05%/V
? Build-in chip enable circuit
? Highly accurate: ±2%
? Output current limit
? Fold-back output short circuit protection

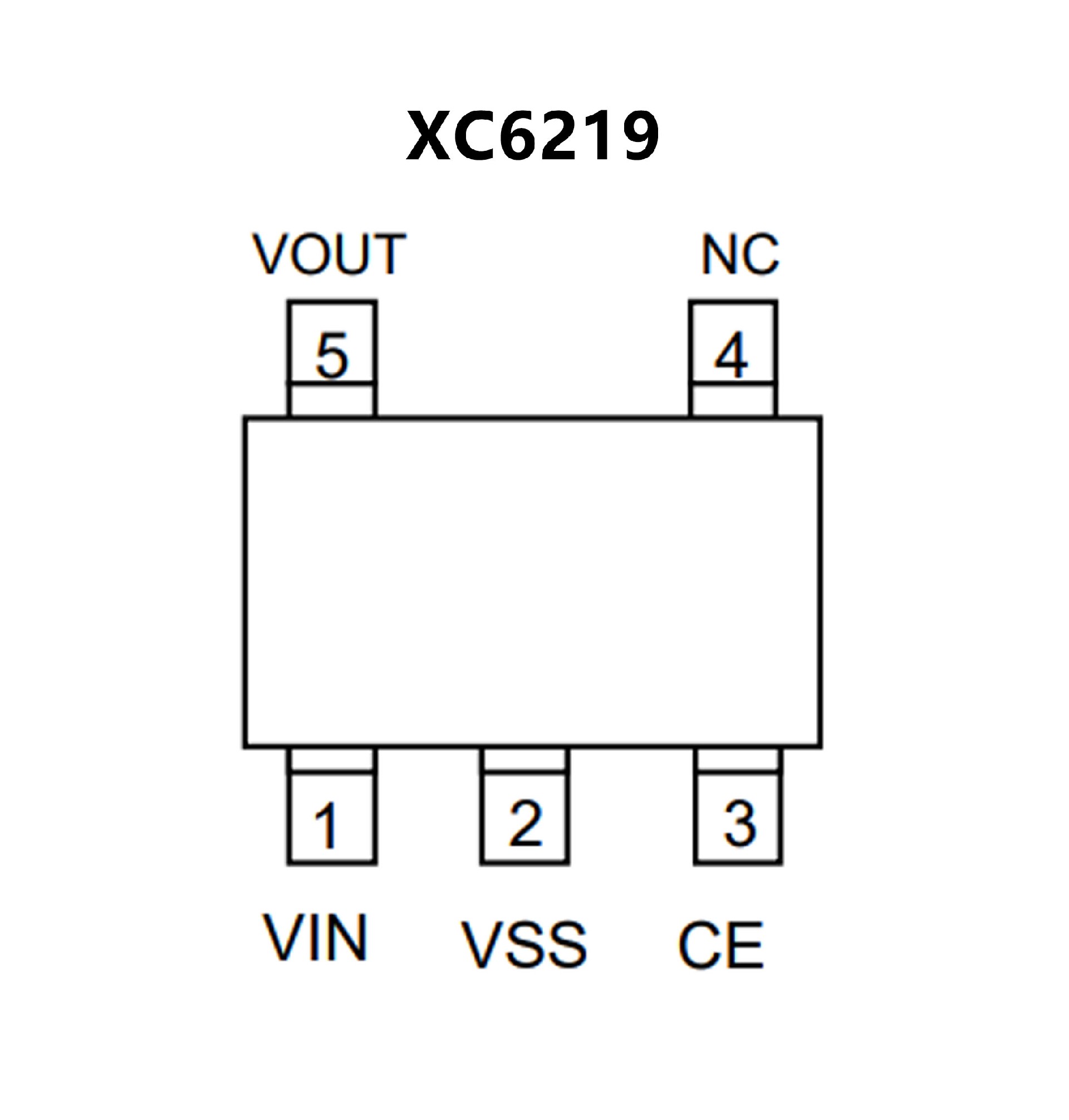

? Maximum Output Current:
150mA (VOUT<1.75V, A~D type)
240mA (VOUT>1.8V, A~D type)
300mA (VOUT>1.3V, E~H type)
? Dropout Voltage : 200mV @ 100mA
? Operating Voltage Range : 2.0V ~ 6.0V
? Output Voltage Range : 0.9V ~ 5.0V (0.05V steps)
? Highly Accuracy: +2% (VOUT>1.5V)+30mV
(VOUT≦1.5V)+1% (VOUT≧3.0V)
? Low Power Consumption: 25μA (TYP.)
? Standby Current : Less than 0.1μA (TYP.)
? High Ripple Rejection : 65dB @10kHz
? Operating Ambient Temperature: -40℃ ~ 85℃
? Low ESR Capacitor : Ceramic capacitor compatible
? Ultra Small Packages: SOT-25SOT-89-5USP-6B
? Environmentally Friendly: EU RoHS Compliant, Pb Free
