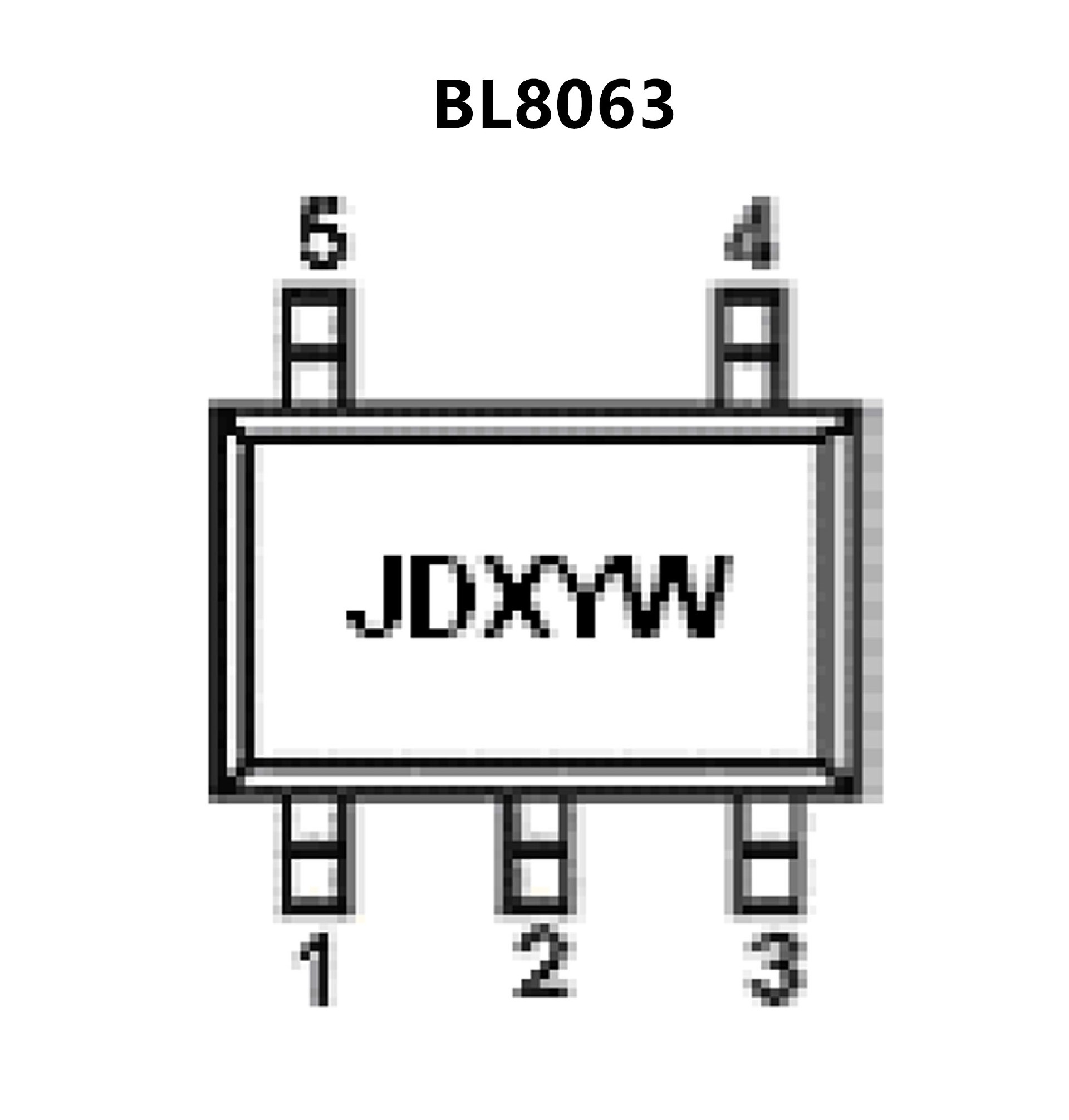

BL8063.pdf? Input voltage range: 2 – 6V
? Output voltage range: 1.0V~4.5V
(customizedon command every 0.1V step)
? Low power consumption: 35uA (Typ.)
? Low output noise (47uVRMS)
? Shutdown mode: 0.1uA
? Low dropout voltage: 300mV@300mA (Typ.)
? High ripple rejection:70dB@1KHz (Typ.)
? Low temperature coefficient: ±100ppm/℃
? Excellent line regulation: 0.05%/V
? Build-in chip enable circuit
? Highly accurate: ±2%
? Output current limit
? Fold-back output short circuit protection

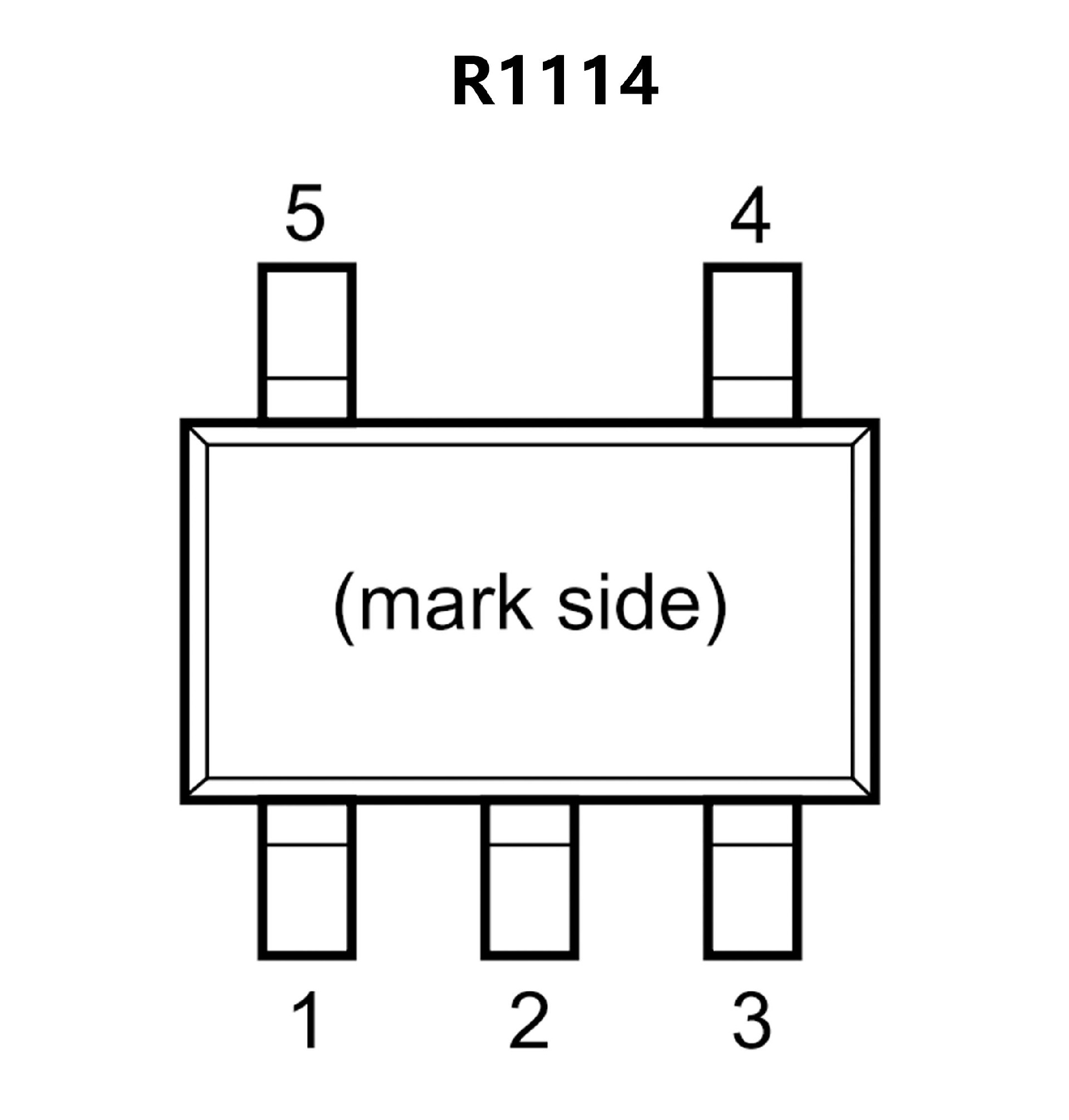

? Supply CurrentTyp. 75μA
? Standby ModeTyp. 0.1μA
? Dropout VoltageTyp. 0.22V (IOUT=150mA 3.0V Output type)
? Ripple RejectionTyp. 70dB (f=1kHz 3.0V Output type) Typ. 60dB (f=10kHz)
? Temperature-Drift Coefficient of Output VoltageTyp. ±100ppm/°C
? Line RegulationTyp. 0.02%/V
? Output Voltage Range1.5V to 4.0V (0.1V steps)
(For other voltages, please refer to MARK INFORMATIONS.)
? Output Voltage Accuracy±2.0%
? PackagesSON1612-6, SC-82AB, SOT-23-5
? Built-in Fold Back Protection CircuitTyp. 40mA (Current at short mode)
? Ceramic capacitors are recommended to be used with this
IC CIN=COUT=1μF (VOUT<2.5V) CIN=1μF, COUT=0.47μF (VOUT > = 2.5V)
