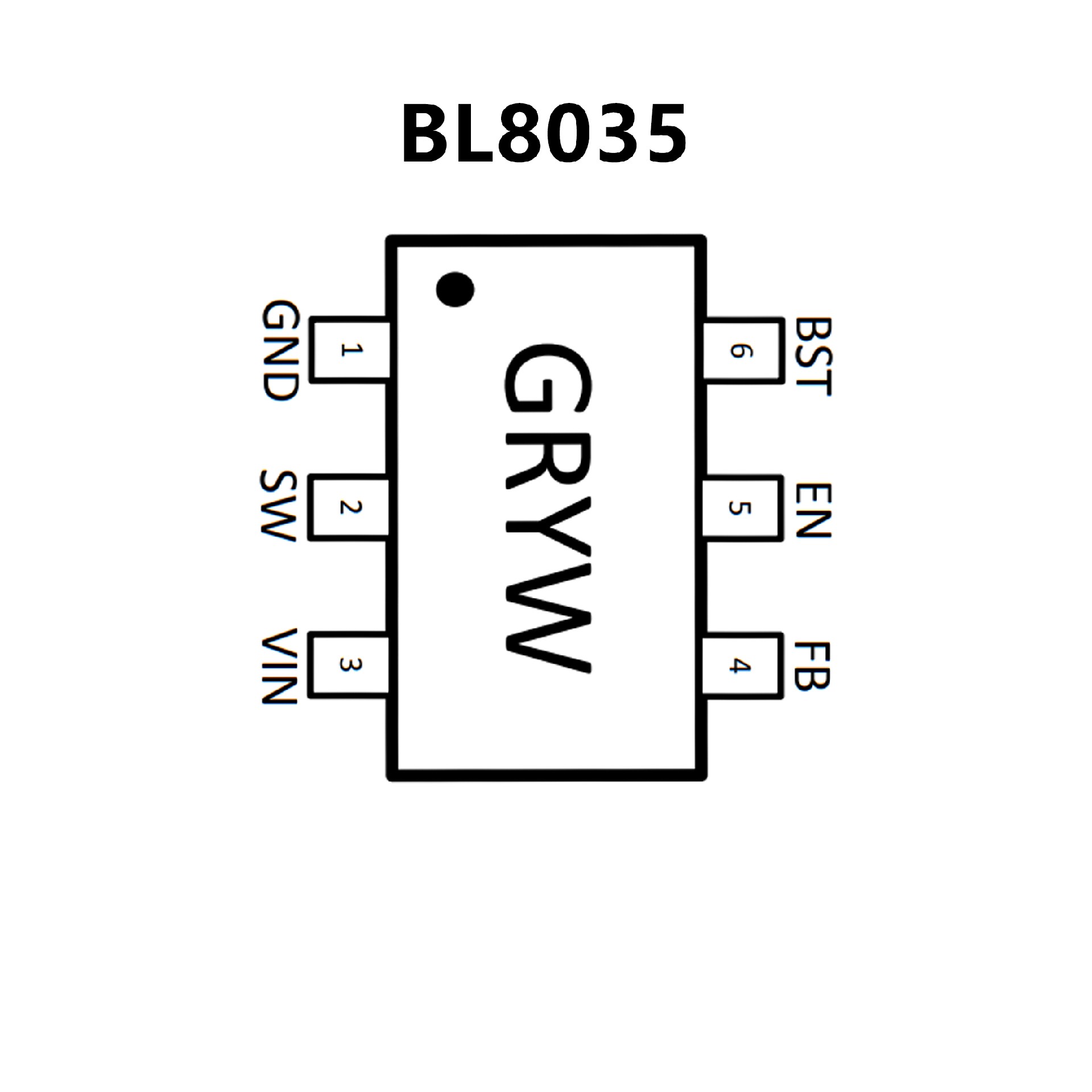

BL8035.pdf? High Efficiency: Up to 96%
? Fixed 500kHz Switching Frequency
? 2A Output Current
? No Schottky Diode Required
? 4.2V to 18V Input Voltage Range
? 0.8V Reference
? Forced PWM
? Slope Compensated Current Mode Control
for
Excellent Line and Load Transient Response
? Integrated internal compensation
? Stable with Low ESR Ceramic Output Capacitors
? Over Current Protection with Hiccup-Mode
? Thermal Shutdown
? Inrush Current Limit and Soft Start
? Available in SOT23-6
? -40°C to +85°C Temperature Range

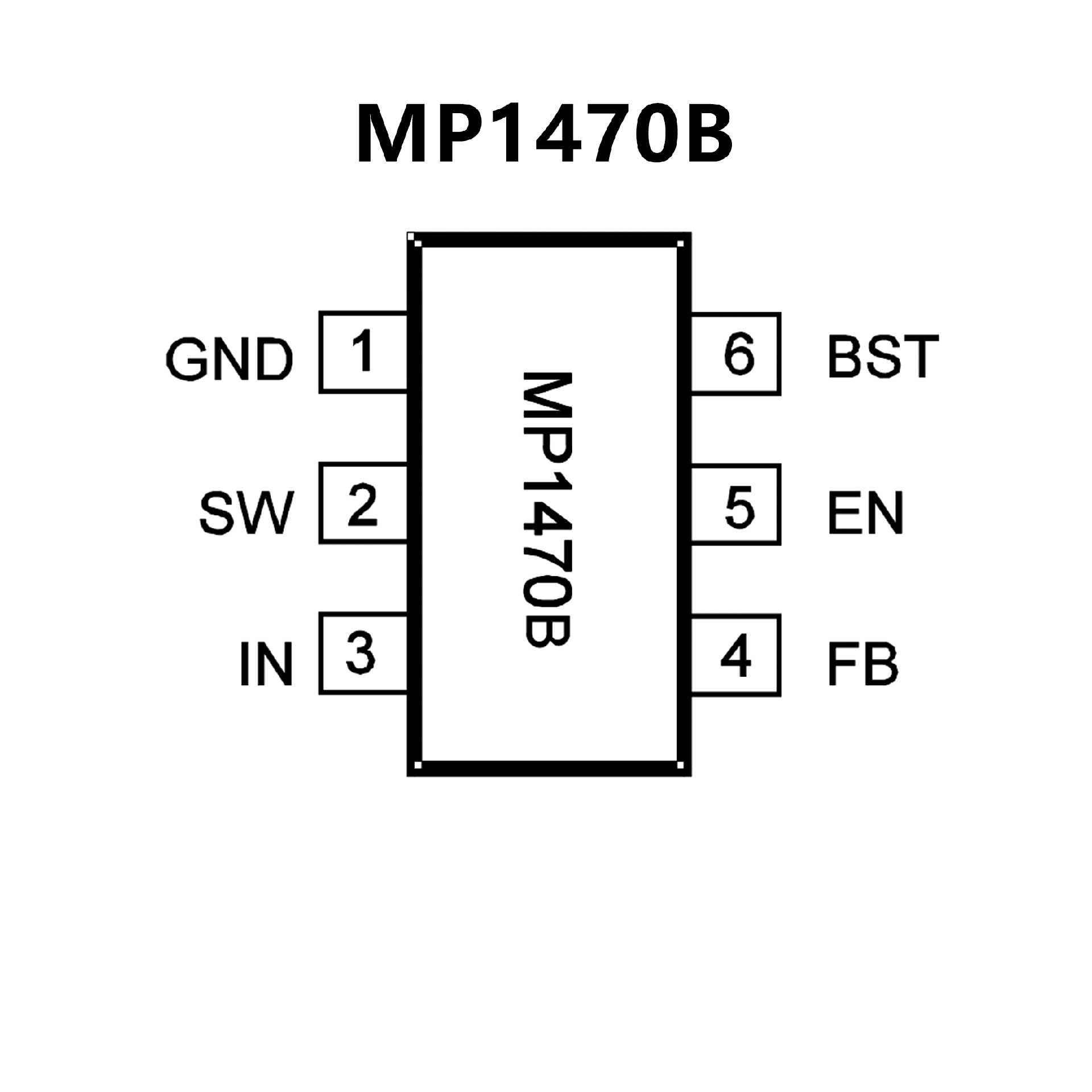

? Wide 4.7V to 16V Operating Input Range
? 163m?/86m? Low-RDS(ON) Internal Power
MOSFETs
? Proprietary Switching Loss Reduction
Technique
? High-Efficiency Synchronous Mode
Operation
? Fixed 500kHz Switching Frequency
? Forced PWM
? Internal Soft Start
? Over-Current Protection and Hiccup Mode
? Thermal Shutdown
? Output Adjustable from 0.8V
? Available in a 6-Pin TSOT23 Package
