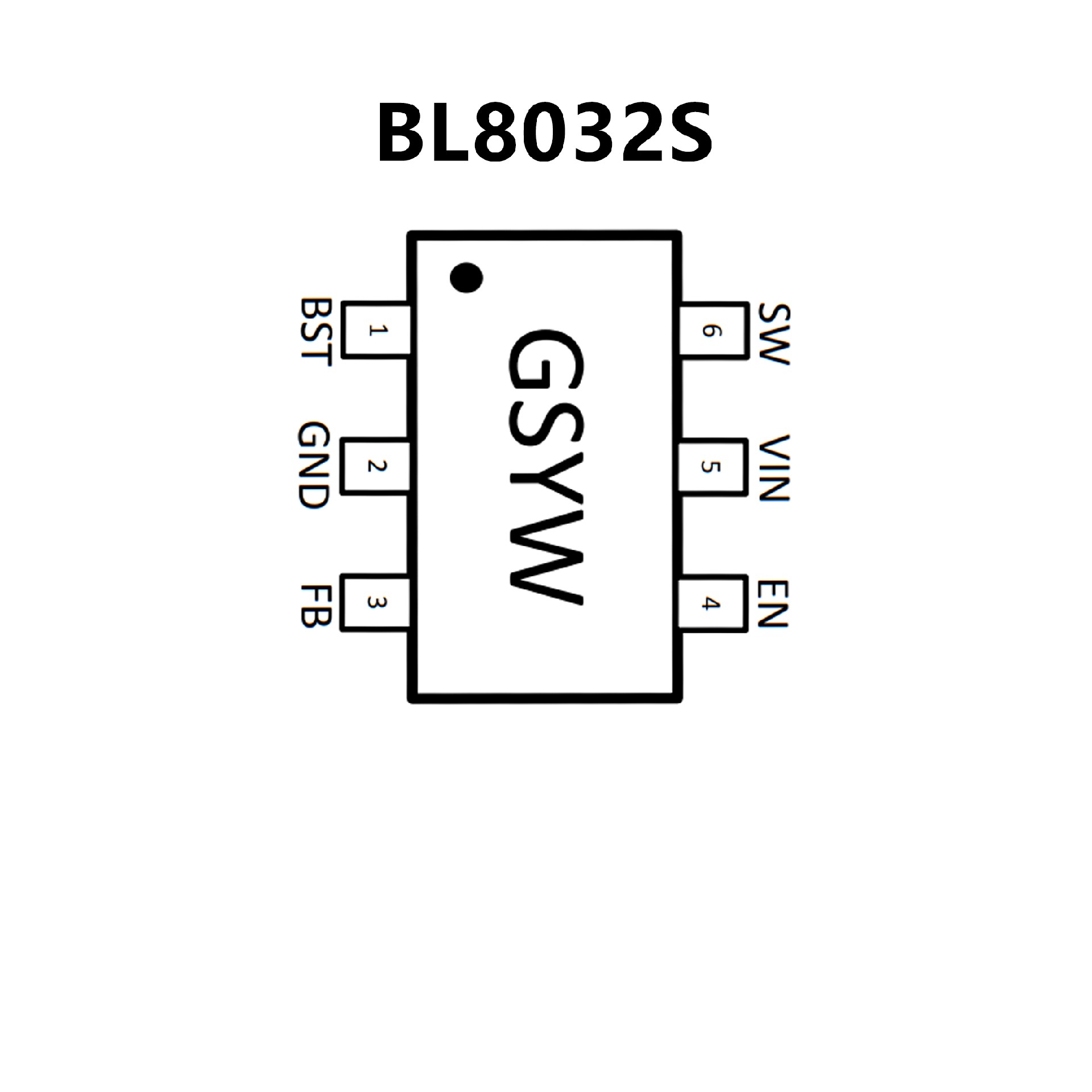

BL8032S.pdf? High Efficiency: Up to 96%
? 500KHz Frequency Operation
? 2A Output Current
? No Schottky Diode Required
? 4.5V to 16V Input Voltage Range
? 0.6V Reference
? Slope Compensated Current Mode Control
for
Excellent Line and Load Transient Response
? Integrated internal compensation
? Stable with Low ESR Ceramic Output Capacitors
? Over Current Protection with Hiccup-Mode
? Thermal Shutdown
? Inrush Current Limit and Soft Start
? Available in SOT23-6
? -40°C to +85°C Temperature Range
? Low RDS(ON) for internal switches
(top/bottom):145/135 mΩ
? 4.5-18V input voltage range
? 2A load current capability
? Instant PWM architecture to achieve fast transient
? responses Internal softstart limits the inrush current
? 2% 0.6V reference
? RoHS Compliant and Halogen Free
? Compact package: SOT23-6
