1.5A 2MHz 6V Synchronous Buck Converter, BL8028 Replace RT8024.
BL8028
BL8028.pdf
BL8028.pdfFEATURES
? High Efficiency: Up to 97%
? Capable of Delivering 1.5A
? 2MHz Switching Frequency
? No External Schottky Diode Needed
? Low dropout 100% Duty operation
? Internal Compensation and Soft-Start
? Current Mode control
? 0.6V Reference for Low Output voltages
? Logic Control Shutdown (IQ<1μA)
? Thermal shutdown, UVLO
? Available in SOT23-5 and the tiny DFN2*2-6

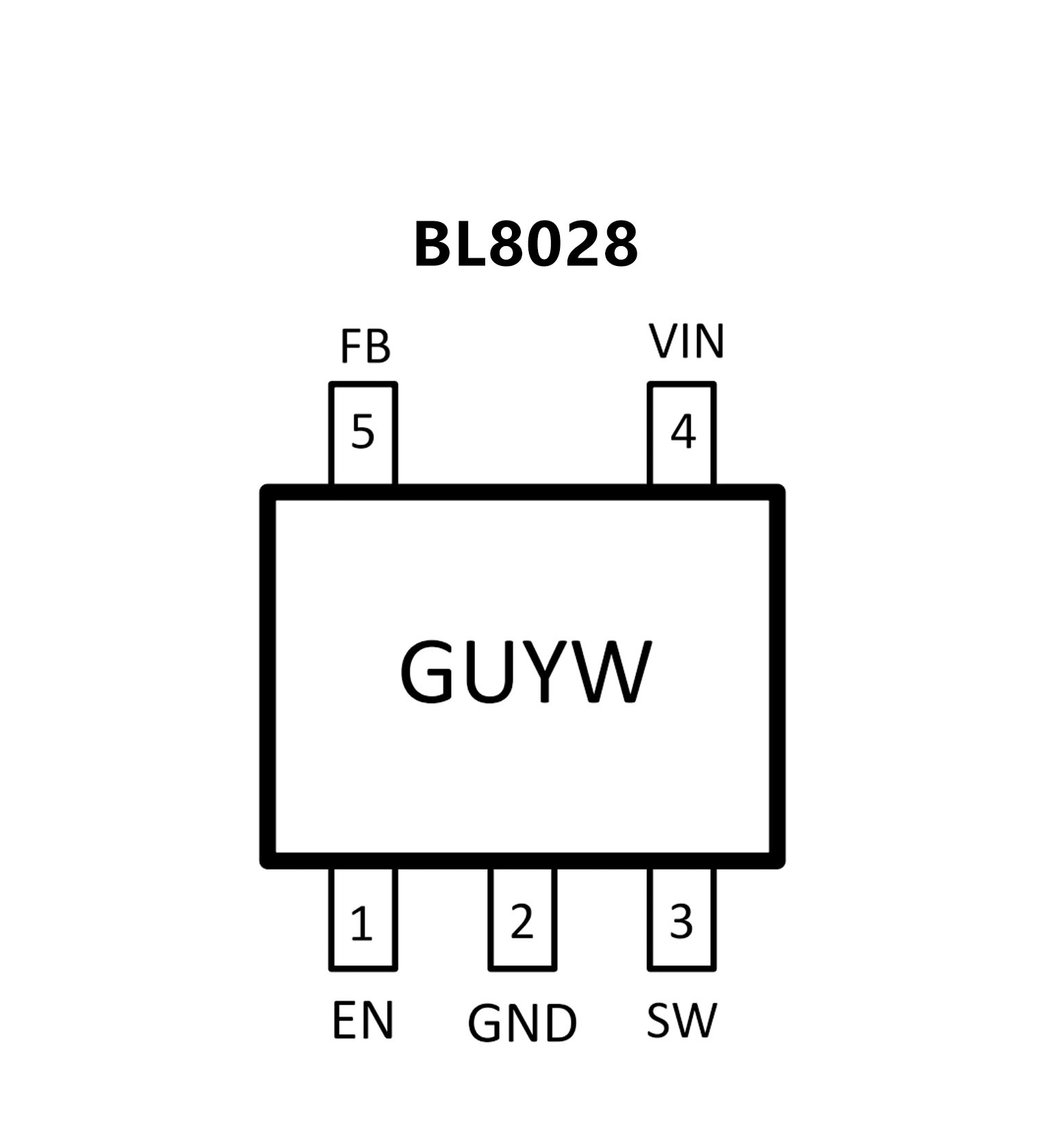

PIN CONFIGUTION
優勢替代
FEATURES
? 2.5V to 5.5V Input Range
? Adjustable Output From 0.6V to VIN
? 1.0V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V
Fixed/
Adjustable Output Voltage
? 400mA Output Current, 1A Peak Current
? 95% Efficiency
? No Schottky Diode Required
? 1.5MHz Fixed Frequency PWM Operation
? Small SOT-23-5 and TSOT-23-5 Package
? RoHS Compliant and Halogen Free
PIN CONFIGUTION
