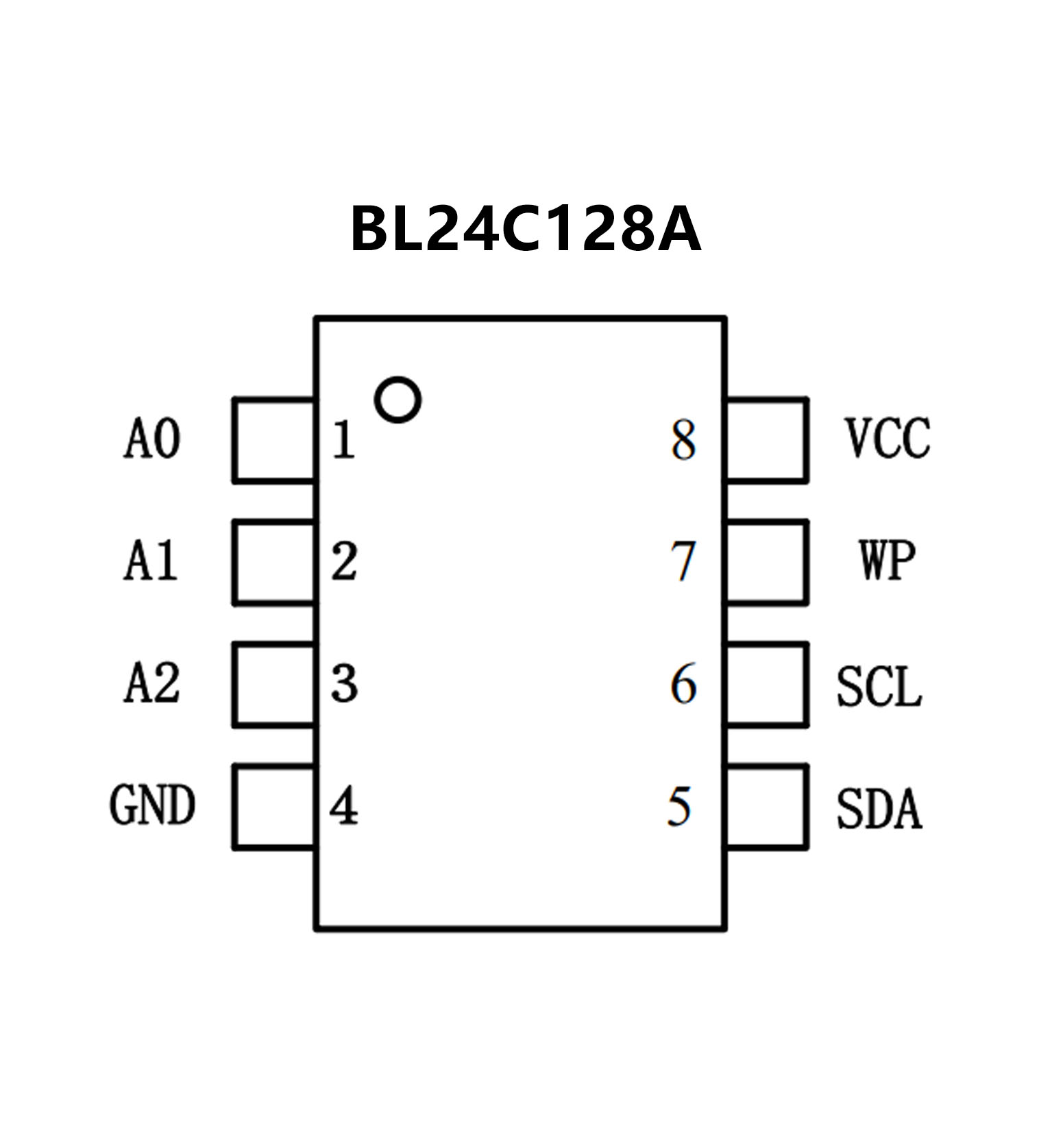

BL24C128A.pdf? Compatible with all data transfer protocol
1 MHz– 400 kHz
100 kHz
? Memory array:
128 Kbit (16 Kbytes) of EEPROM
Page size: 64 bytes
Additional Write lockable page
? Single supply voltage and high speed:
1 MHz
? Write:
Byte Write within 3 ms
Page Write within 3 ms
? Operating Ambient Temperature:
From -40 °C up to +85 °C
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Internally Organized:
BL24C128A, 16,384 X 8 (128K bits)
? Two-wire Serial Interface
? Schmitt Trigger, Filtered Inputs for NoiseSuppression
? Bidirectional Data Transfer Protocol
? Write Protect Pin for Hardware DataProtection
? Partial Page Writes Allowed
? Self-timed Write Cycle (5 ms max)
? 8-lead PDIP/SOP/TSSOP/UDFN/WLCSP4packages
? Wide voltage Operation
VCC = 1.8V to 5.5V
? Low-Power Devices (ISB = 3 μA @ 5.5V) Available
? Operating Ambient Temperature: -40°C to +85°C

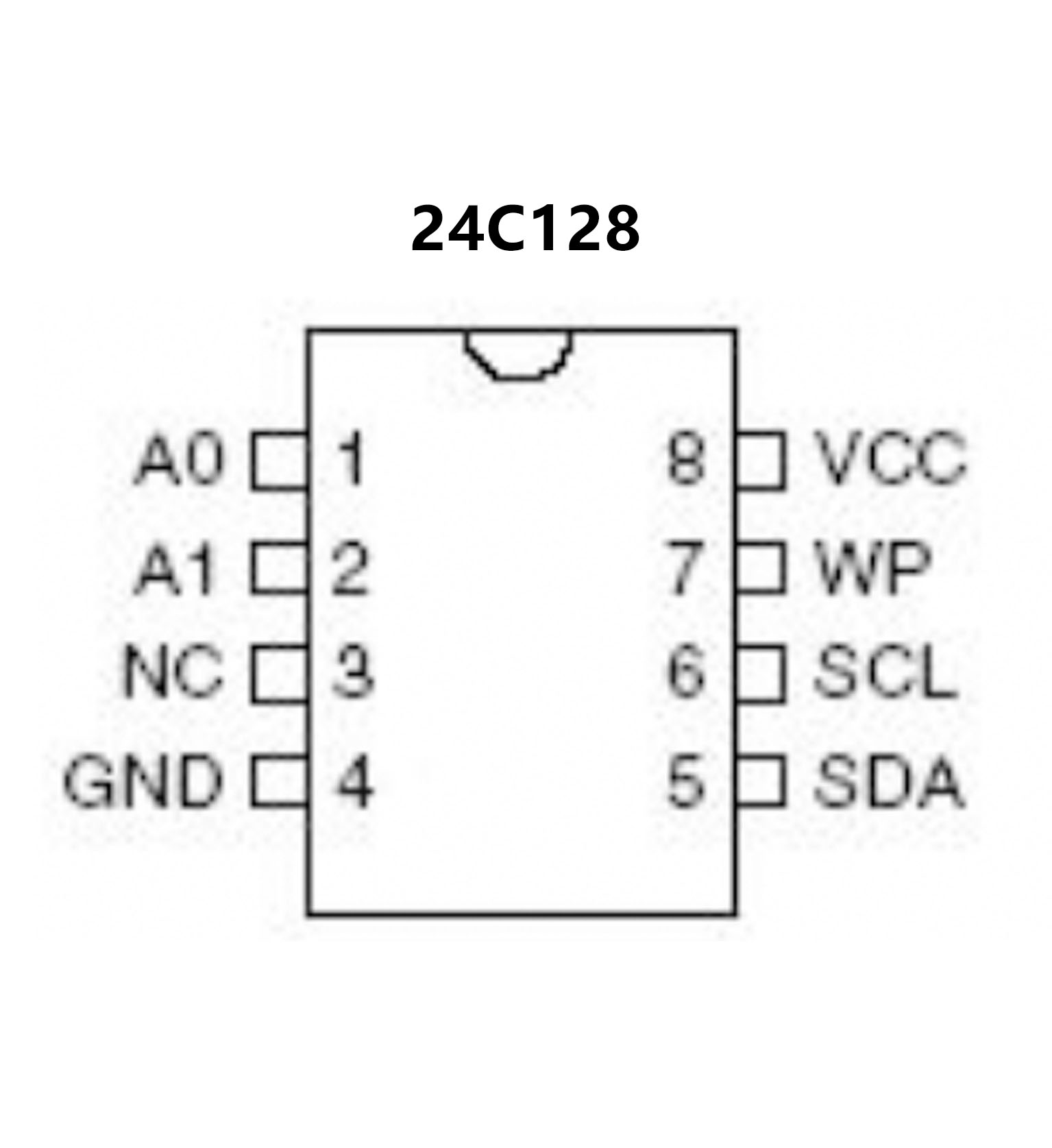

? Internally Organized 16,384 X 8 (128K), 32,768 X 8 (256K)
? Two-wire Serial Interface
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? Bidirectional Data Transfer Protocol
? 1 MHZ(5V),400 kHz (1.8V, 2.7V, 3.3V) Compatibility
? Write Protect Pin for Hardware Data Protection
? 64-byte Page (128K/256K) Write Modes
? Partial Page Writes Allowed
? Self-timed Write Cycle (5 ms max)
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? 8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP Packages
