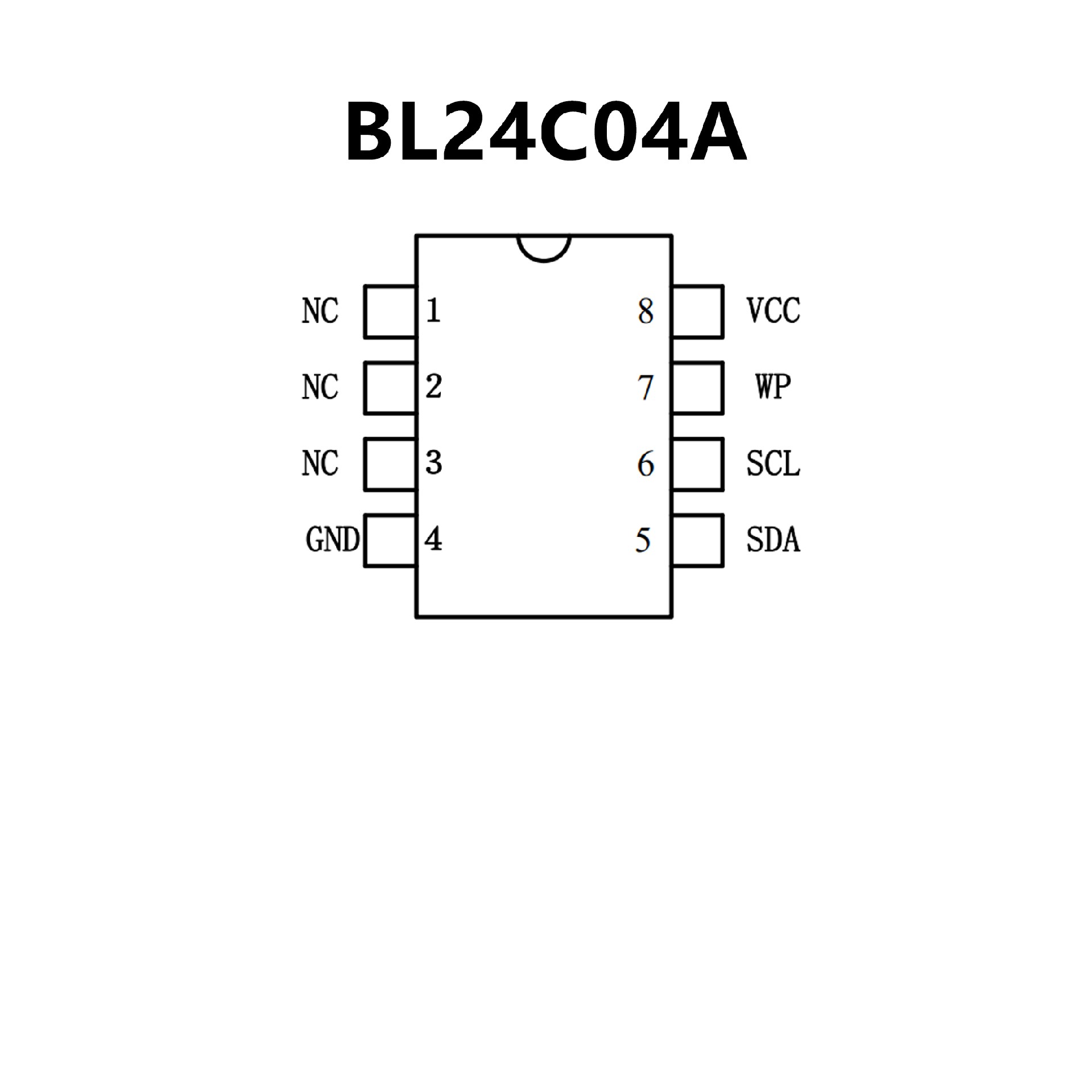

BL24C04A.pdf? Compatible with all I2C bidirectional
data
transfer protocol
? Memory array:
2K bits (256X 8) / 4K bits (512 X 8) / 8Kbits
(1024 X 8) / 16K bits (2048 X 8) ofEEPROM
Page size: 16 bytes
? Single supply voltage and high speed:
1 MHzRandom and sequential Read modes
? Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
? Write Protect Pin for Hardware Data Protection
? Schmitt Trigger, Filtered Inputs for NoiseSuppression
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/Latch-up protection
HBM 8000V
? TSOT23-5、8-lead PDIP/SOP/TSSOP and UDFNpackages
? 1million erase/write cycles with 40 years data retention
? Singlesupply voltage:

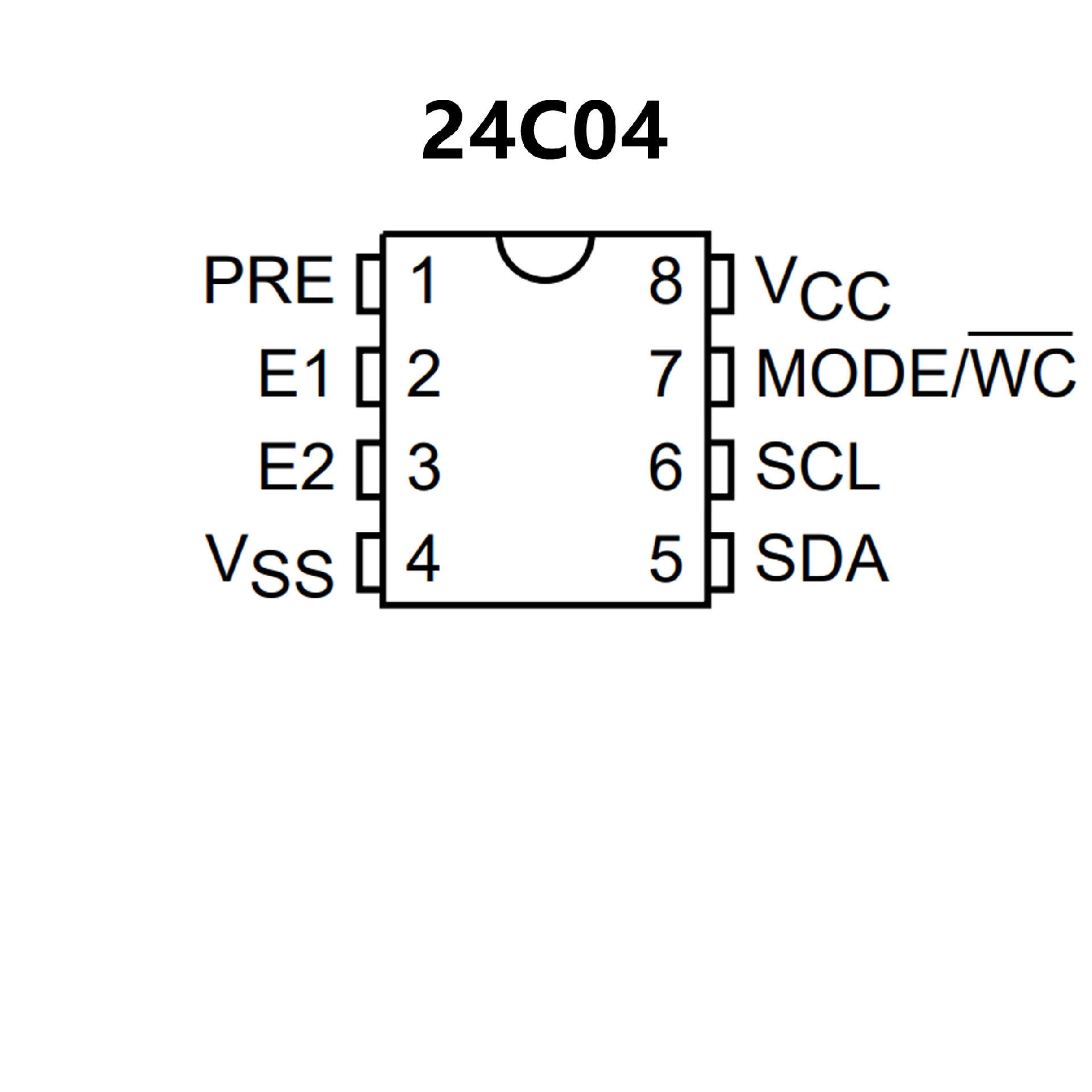

3V to5.5V for ST24x04 versions
2.5V to5.5V for ST25x04 versions
? Hardwarewrite control versions: st24w04 and st25w04
? Programmablewrite protection
? Twowire serial interface, fully i2c bus compatible
? Byteand multibyte write (up to 4 bytes)
? Page write(up to 8 bytes)
? Byte,random and sequential read modes
? Selftimed programming cycle
? Automaticaddress incrementing
? Enhancedesd/latch up performances
