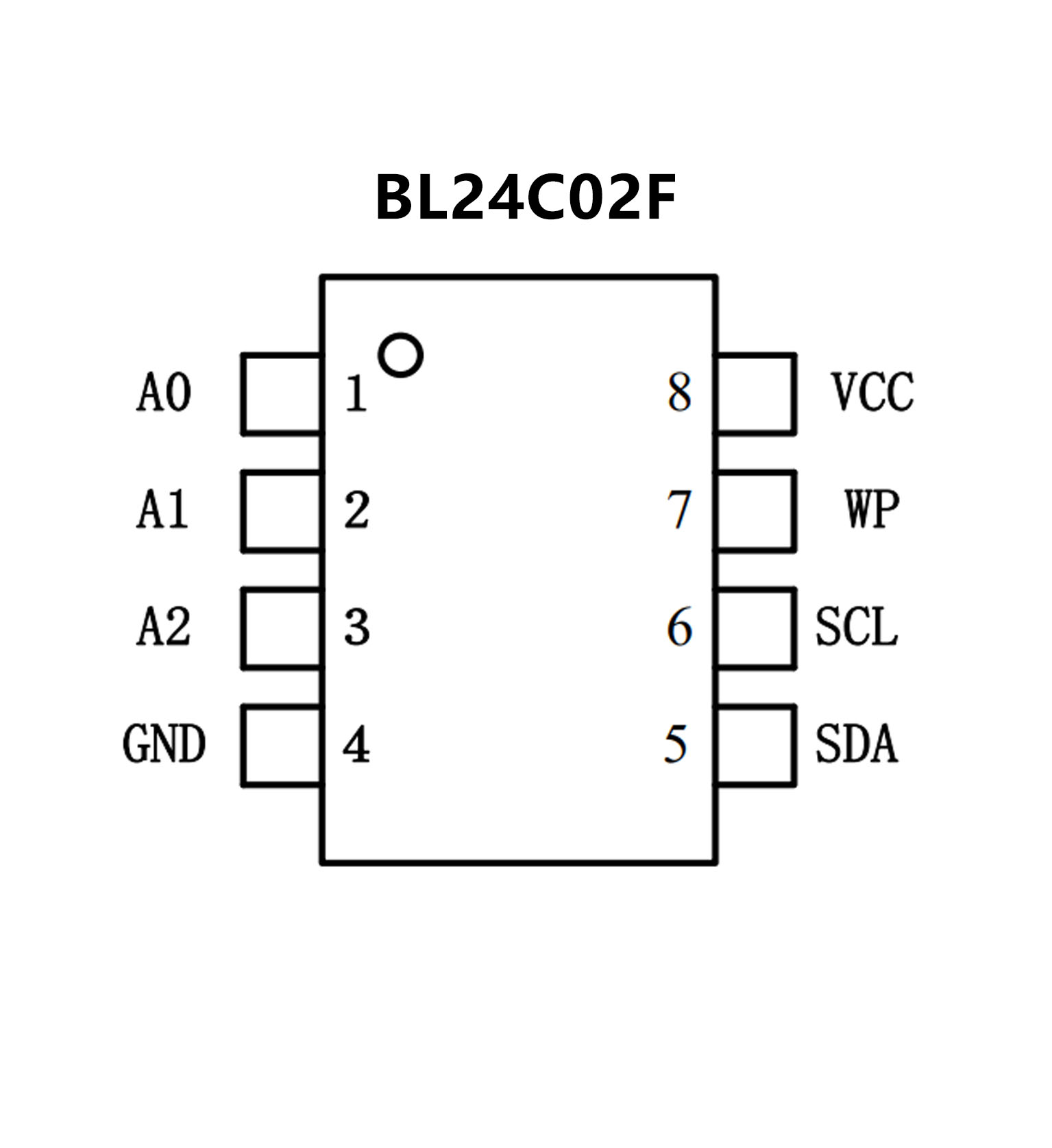

BL24C02F.pdf? Compatible with all I2C bidirectional data
transfer protocol
? Memory array:
2 Kbits (256bytes) of EEPROM
Page size: 16 bytes
? Single supply voltage and high speed:
1MHZ
Random and sequential Read modes
? Write:
Byte Write within 3 ms
Page Write within 3 ms
Partial Page Writes Allowed
? Write Protect Pin for Hardware Data Protection
? Schmitt Trigger, Filtered Inputs for Noise
Suppression
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/Latch-up protection
HBM 6000V
? 8-lead PDIP/SOP/TSSOP/ UDFN and TSOT23-5packages
? Wide Voltage Operation - VCC = 1.8V to 5.5V
? Operating Ambient Temperature: -40℃ to +85℃

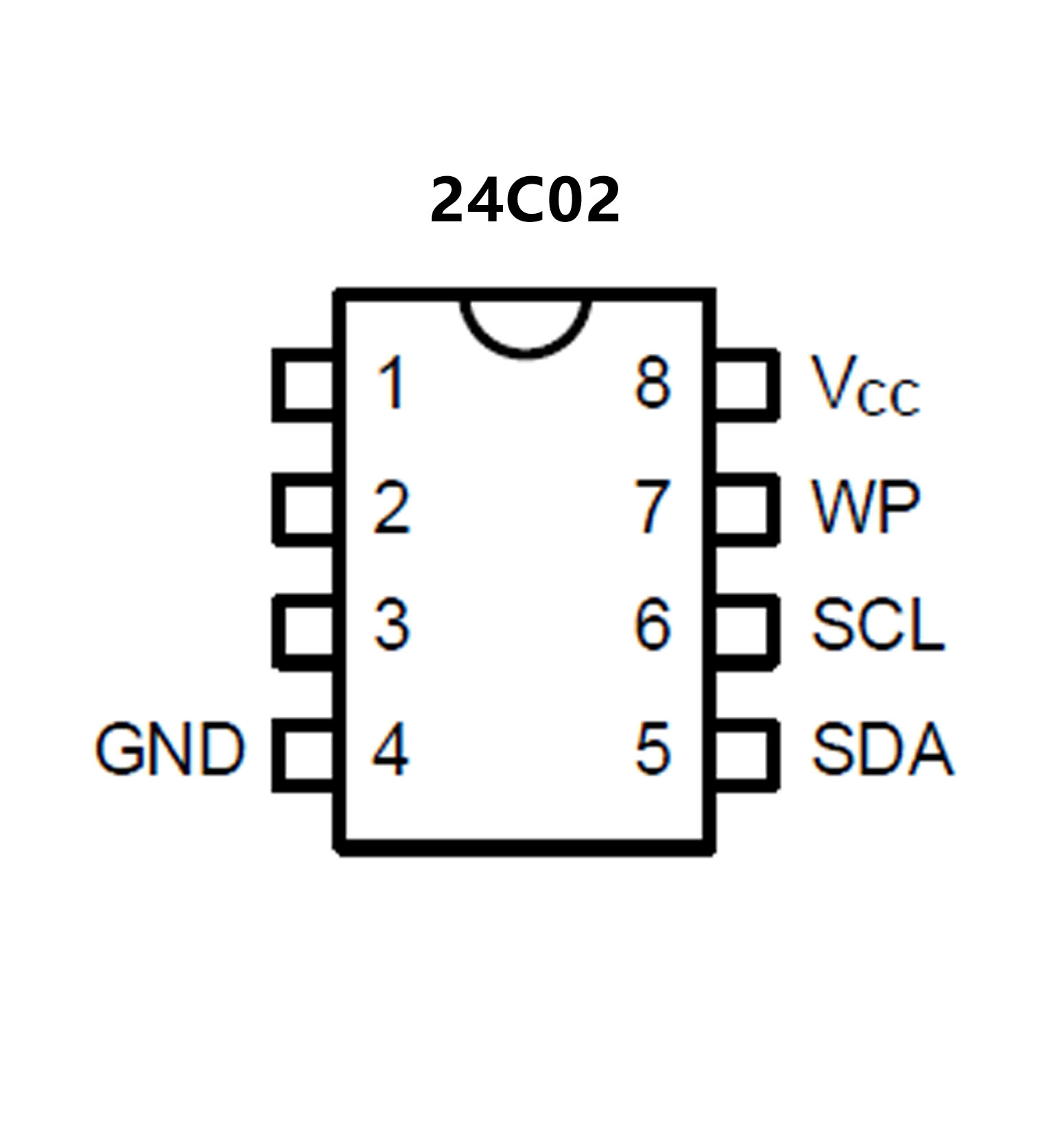

? Internally Organized:
24C02, 256 X 8 (2K bits)
24C04, 512 X 8 (4K bits)
24C08, 1024 X 8 (8K bits)
24C16, 2048 X 8 (16K bits)
? Two-wire Serial Interface
? Schmitt Trigger, Filtered Inputs for Noise Suppression
? Bidirectional Data Transfer Protocol
? 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V) Compatibility
? Write Protect Pin for Hardware Data Protection
? 8-byte Page (2K), 16-byte Page (4K, 8K, 16K) Write Modes
? Partial Page Writes Allowed
? Self-timed Write Cycle (5 ms max)
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? 8-lead PDIP, 8-lead SOP and 8-lead TSSOP Packages
? Die Sales: Wafer Form, Waffle Pack
