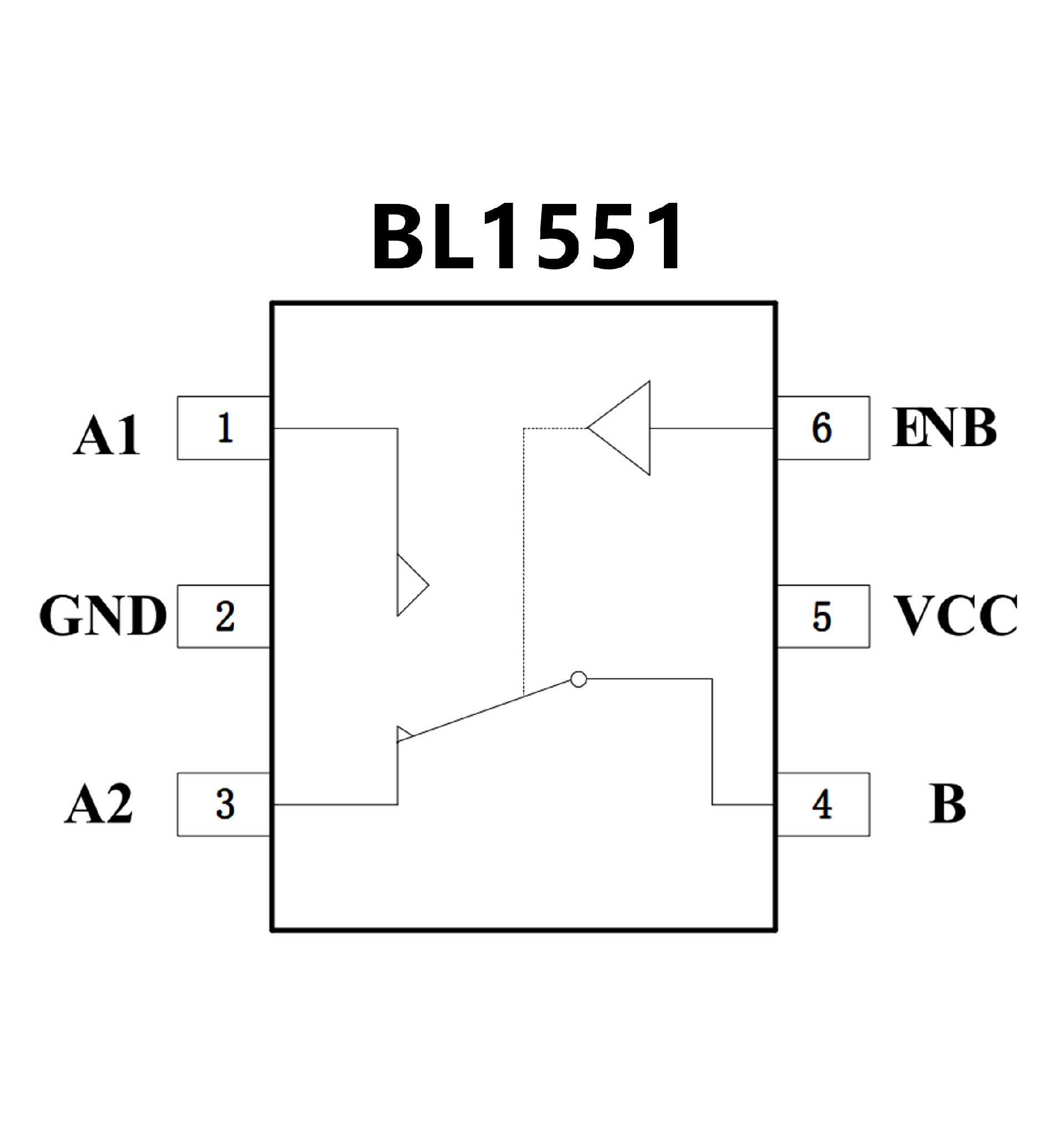

BL1551.pdf? Wide Power Supply Range: 1.8V to 5.5V
? High Bandwidth: 300MHz
? High Off-Isolation: 84dB at 1MHz 51dB at 10MHz
? On-Resistance: 2.7Ω(typ) at 5.0V
? Fast Switching Time ton = 12.0ns; toff = 5.0ns
? TTL/CMOS Compatible
? Break-Before-Make Switching
? Rail-to-Rail Signal Range
? Operation Temperature Range: -40℃ to 85℃
? Lead (Pb) Free SC70-6 Package
? High Speed: tPD = 1.0 ns (Typ) at VCC = 5.0 V
? Low Power Dissipation: ICC = 2.0μA (Max) at TA = 25°C
? Standard CMOS Logic Levels
? High Bandwidth, Improved Linearity
? Switches Standard NTSC/PAL Video, Audio, SPDIF and HDTV
? May be used for Clock Switching, Data Multiplexing, etc.
? RON Typical = 3Ω @ VCC = 4.5 V
? Break Before Make Circuitry, Prevents Inadvertent Shorts
? 2 Devices can Switch Balanced Signal Pairs, e.g. LVDS＞200 Mb/s
? Latchup Performance Exceeds 300 mA

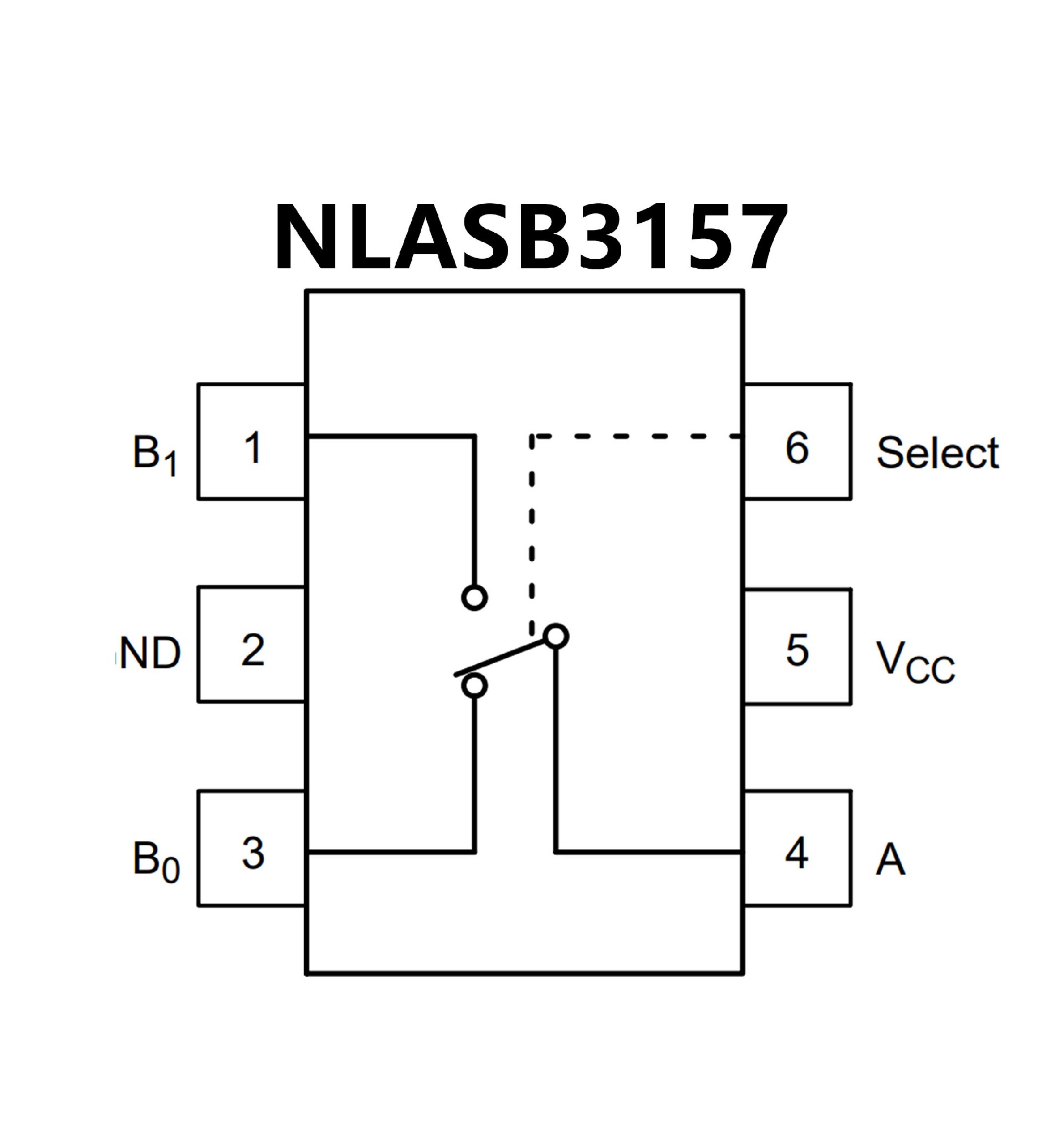

? Pin for Pin Drop in for NC7SB3157
? Tiny SC88 and WDFN6 Packages
? ESD Performance:
Human Body Model;＞ 2000 V;
Machine Model; ＞ 200 V
? NLVASB3157 Features Extended Automotive
Temperature Range; ?55°C to +125°C (See Appendix A)
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHS Compliant
