20V 3A P-channel MOSFET in SOT23, Replace NTR4101
AMP2305
AMP2305.pdf
AMP2305.pdfFEATURES
● RDS(on) = Typ 26mΩ @VGS= -4.5V
● RDS(on) = Typ 35mΩ @VGS= -2.5V
● Surface Mount Package
● Pb-Free, RoHS Compliant
● P-Channel Switch With Low RDS(on)
● Advanced Trench Technology

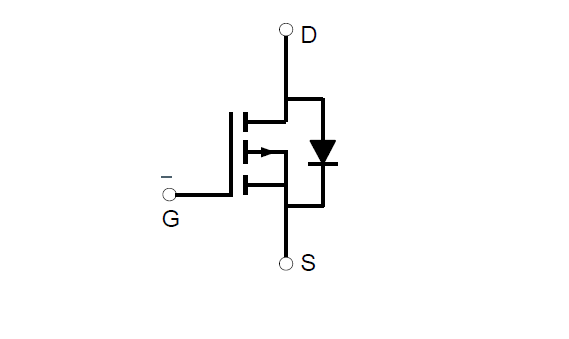

PIN CONFIGUTION
優勢替代
FEATURES
● Leading ?20 V Trench for Low RDS(on)
● ?1.8 V Rated for Low Voltage Gate Drive
● SOT?23 Surface Mount for Small Footprint
● NTRV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements;
AEC?Q101 Qualified and PPAP Capable

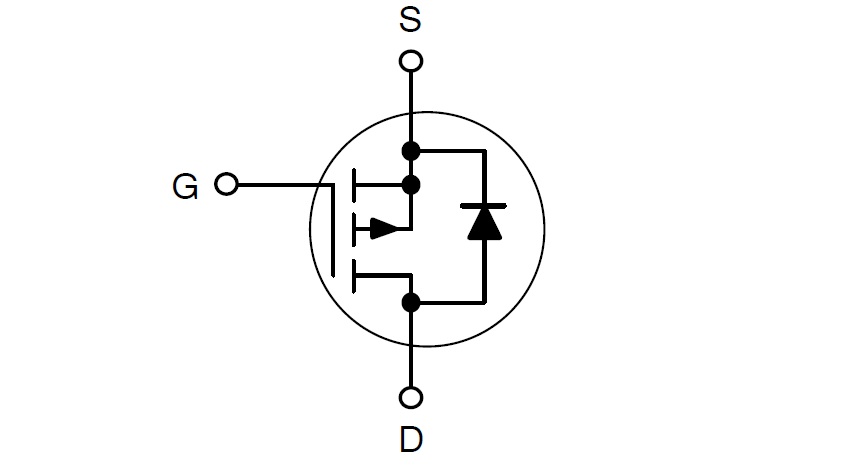

PIN CONFIGUTION
