1MHz, 3A, DFN3X3-10L Buck DC/DC Converter, Replace RT8061
ACP3084??
ACP3084??.pdf
ACP3084??.pdfFEATURES
? Input Voltage Range: 2.7V to 5.5V
? High Efficiency up to 95%
? Low 100mΩ High SideRDSON Switches
? 3A Available Load Current
? 30μA Typical Quiescent Current
? 1MHz Constant Switching Frequency
? Adjustable Output Voltage as Low as 0.6V
? 100% Duty Cycle Low Dropout Operation
? Short Circuit and Thermal Protection
? Excellent Line and Load Transient Response
? Soft Start Function
? Power Good

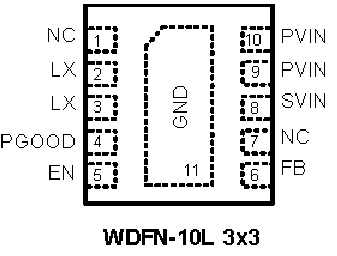

PIN CONFIGUTION
優勢替代
FEATURES
? High Efficiency : Up to 95%
? Low RDS(ON) Internal Switches : 69mΩ/49mΩ at VIN = 5V
? Fixed Frequency : 1MHz
? No Schottky Diode Required
? 0.6V Reference Allows Low Output Voltage
? PWM/PSM Mode Operation
? Low Dropout Operation : 100% Duty Cycle
? OCP, UVP, OVP, OTP
? RoHS Compliant and Halogen Free

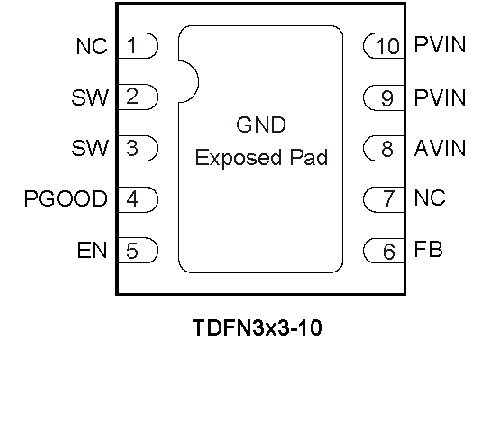

PIN CONFIGUTION
