2A, 23V Synchronous Rectified,Step-Down Converter,ACP2812 Replace MP2305.
ACP2812
ACP2812.pdf
ACP2812.pdfFEATURES
? VOUT Range:4.5V to 18V
? Output Current:2A
? Fixed 340kHz Frequency
? Up to 95% Efficiency
? Current Mode Control
? Over Current Protection
? Thermal Shutdown Function
? Built-In UVLO Function
? Over Voltage Protection
? Programmable Soft-start

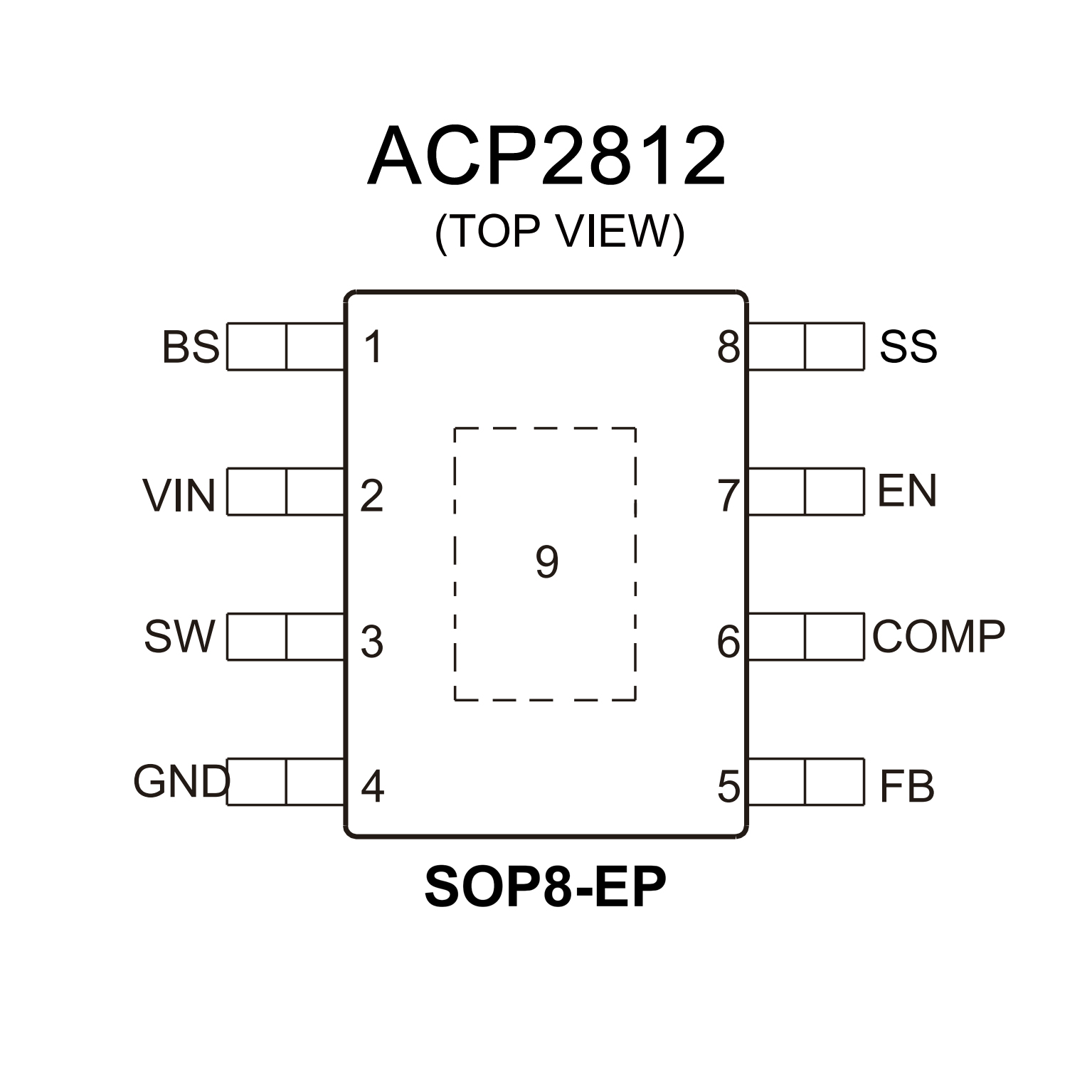

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 2A Output Current
? Wide 4.75V to 23V Operating Input Range
? Integrated 130m? Power MOSFET Switches
? Output Adjustable from 0.923V to 20V
? Up to 93% Efficiency
? Programmable Soft-Start
? Stable with Low ESR Ceramic Output Capacitors
? Fixed 340KHz Frequency
? Cycle-by-Cycle Over Current Protection
? Input Under Voltage Lockout

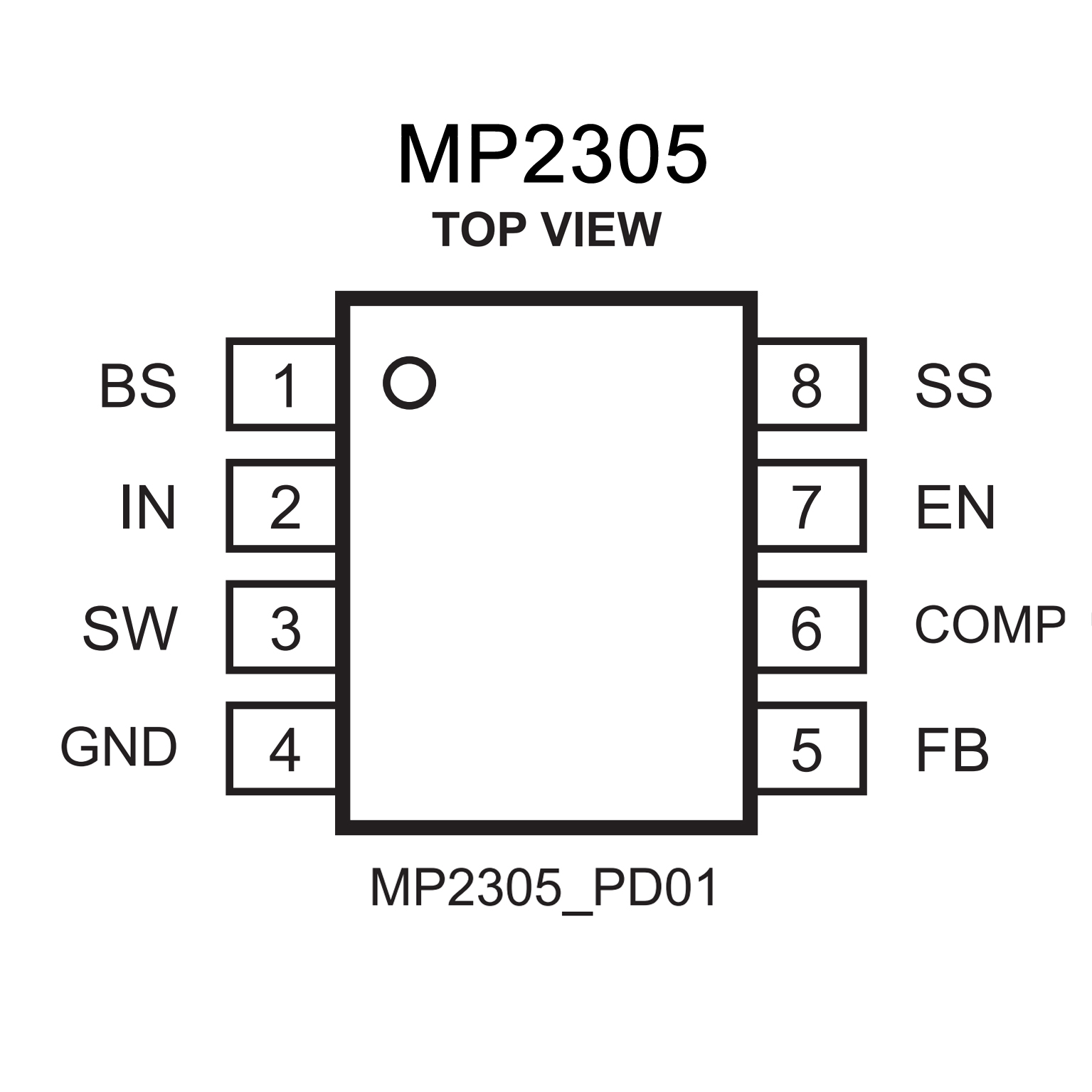

PIN CONFIGUTION
