WLED Driver, 2.5~5.5V, 8 Series WLED Driver 1.2MHz, SOT23-6, Replace RT9284
ACP2766
ACP2766.pdf
ACP2766.pdfFEATURES
● 2.7V to 5.5V Input Voltage Range
● 200mV Reference Feedback Voltage
● 1.2MHz Fixed Frequency
● Internal 38V Open LED Protection
● Integrated 40V,1.5A MOSFET
● 10~100KHz PWM Dimming Control Range
● Internal Soft Start
● Under-Voltage Protection
● Over Thermal Shutdown
● Low EMI and Improved PSRR
● SOT26 Package Available
PIN CONFIGUTION
優勢替代
FEATURES
● VIN Operating Range : 2.7V to 5.5V
● Maximum Output Voltage up to 20V
● Dimming with Zero-inrush and Wide Frequency
Range of 100 to 100kHz
● Over Voltage Protection
● Output Current up to 100mA at VOUT = 12V.
● Zero Shutdown Supply Current
● Minimize the External Component
● Small LC Filter
● Internal Soft Start
● RoHS Compliant and 100% Lead (Pb)-Free

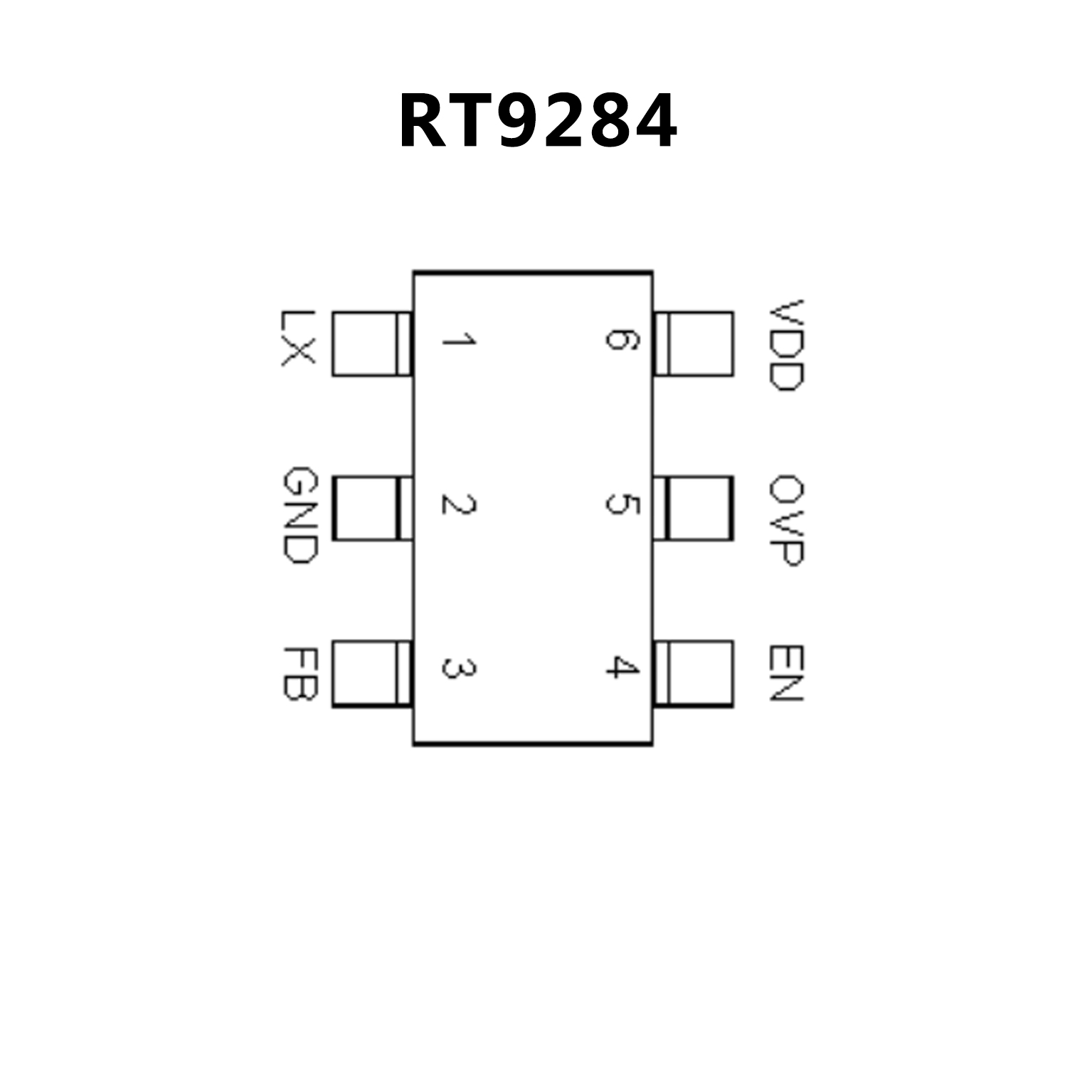

PIN CONFIGUTION
