Programmable 0.4~2.5A Power Distribution Switches, Replace SY6280
ACP1263
ACP1263.pdf
ACP1263.pdfFEATURES
? 2.5V to 5.5V Input Voltage Range
? 0.4A to 2.5A Programmable Current Limit Range
? Maximum 35μA Quiescent Current
? Typical 0.1μA Shutdown Current
? Soft-Start Function
? Temperature Shutdown Protection
? Under Voltage Lockout Protection
? Reverse Blocking Function Internal
? Automatic Output Discharge
? In Common SOT25 Package

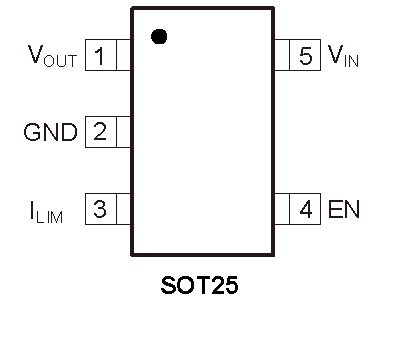

PIN CONFIGUTION
優勢替代
FEATURES
? Input voltage: 2.4V to 5.5V
? 2A load current capability
? Programmable current limit
? Enable polarity: active high
? Over temperature protection
? Reverse blocking (no body diode)
? OUT can be forced higher than IN at shutdown
? Output discharge function
? SY6280: Auto output discharge function
? Compact SOT23-5 package minimizes the board space

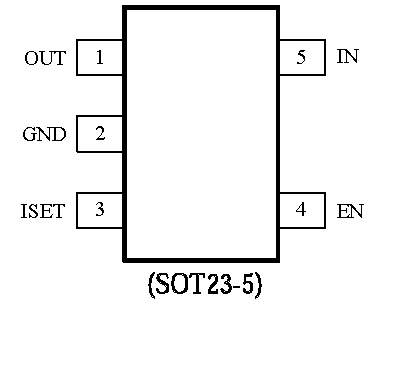

PIN CONFIGUTION
