Current Limited IC, VIN 2.4V~5.5V, ILIM 1.5A, Active High, SOT23-5, ACP1252A P2P TPS2065.
ACP1252A
ACP1252A.pdf
ACP1252A.pdfFEATURES
? 2.7V to 5.5V Input Voltage Range
? 2.1A Accurate Current Limiting Threshold
? Fast Transient Response:
? Max 1uA quiescent current with shutdown
? Low 90mΩ Typical RDS(ON)
? Reverse Current Blocking
? Thermal Shutdown and Over-current Protection
? Fault report with 8ms typical blanking time
? -40 to 85°C Operation Temperature range
? Available in SOT23-5L and DFN2018-6L package
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 70-mΩ High-Side MOSFET
? 1-A Continuous Current ? Short-Circuit Protections
? Thermal and Short-Circuit Protection
? Accurate Current Limit (1.1 A min, 1.9 A max)
? Operating Range: 2.7 V to 5.5 V
? 0.6-ms Typical Rise Time
? Undervoltage Lockout
? Deglitched Fault Report (OC)
? No OC Glitch During Power Up
? 1-μA Maximum Standby Supply Current

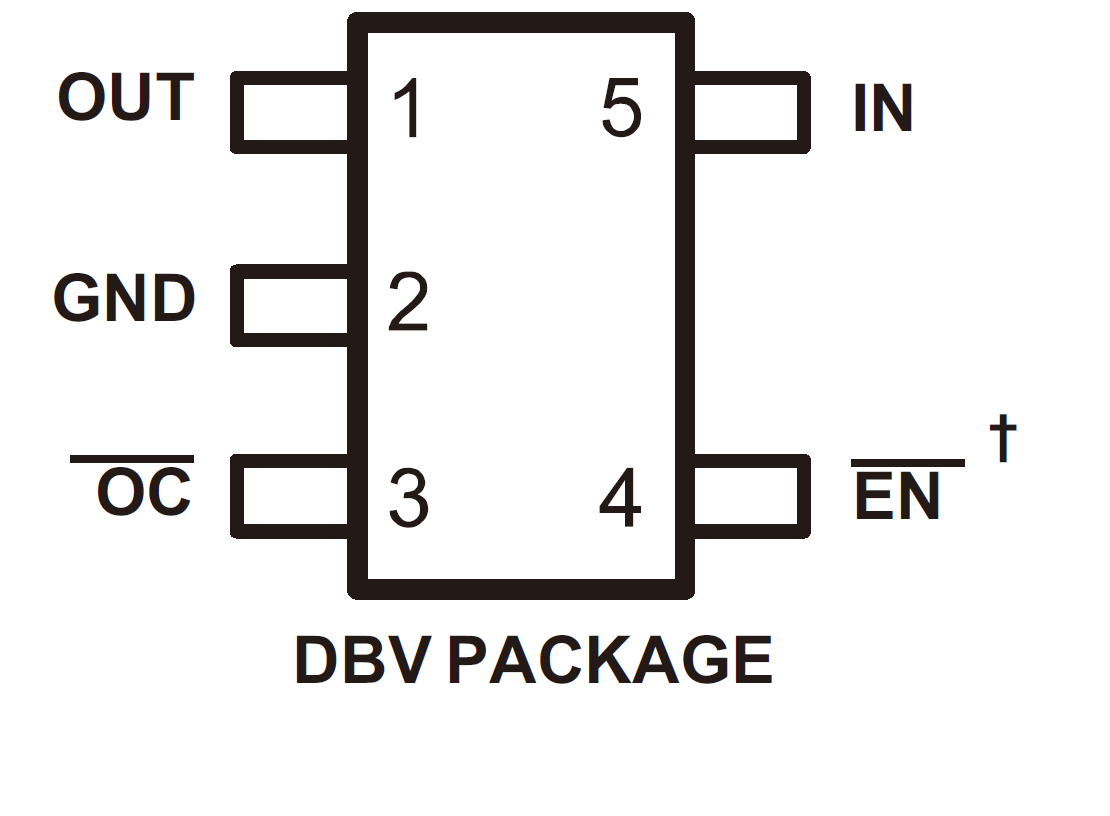

PIN CONFIGUTION
