1.5A USB Power Switch, ACP12522 Replace RT9742.
ACP12522
ACP12522.pdf
ACP12522.pdfFEATURES
? Input Voltage Range: 2.5V to 5.5V
? 2.1A Accurate Current Limiting Threshold
? Fast Transient Response
? Max 35μA Quiescent Current
? Low 90mΩ Typical RDS(ON)
? Reverse Current Blocking
? Thermal Shutdown and Over-Current Protection
? Fault Report with 12ms Typical Blanking Time
? -40 to 85°C Operation Temperature Range

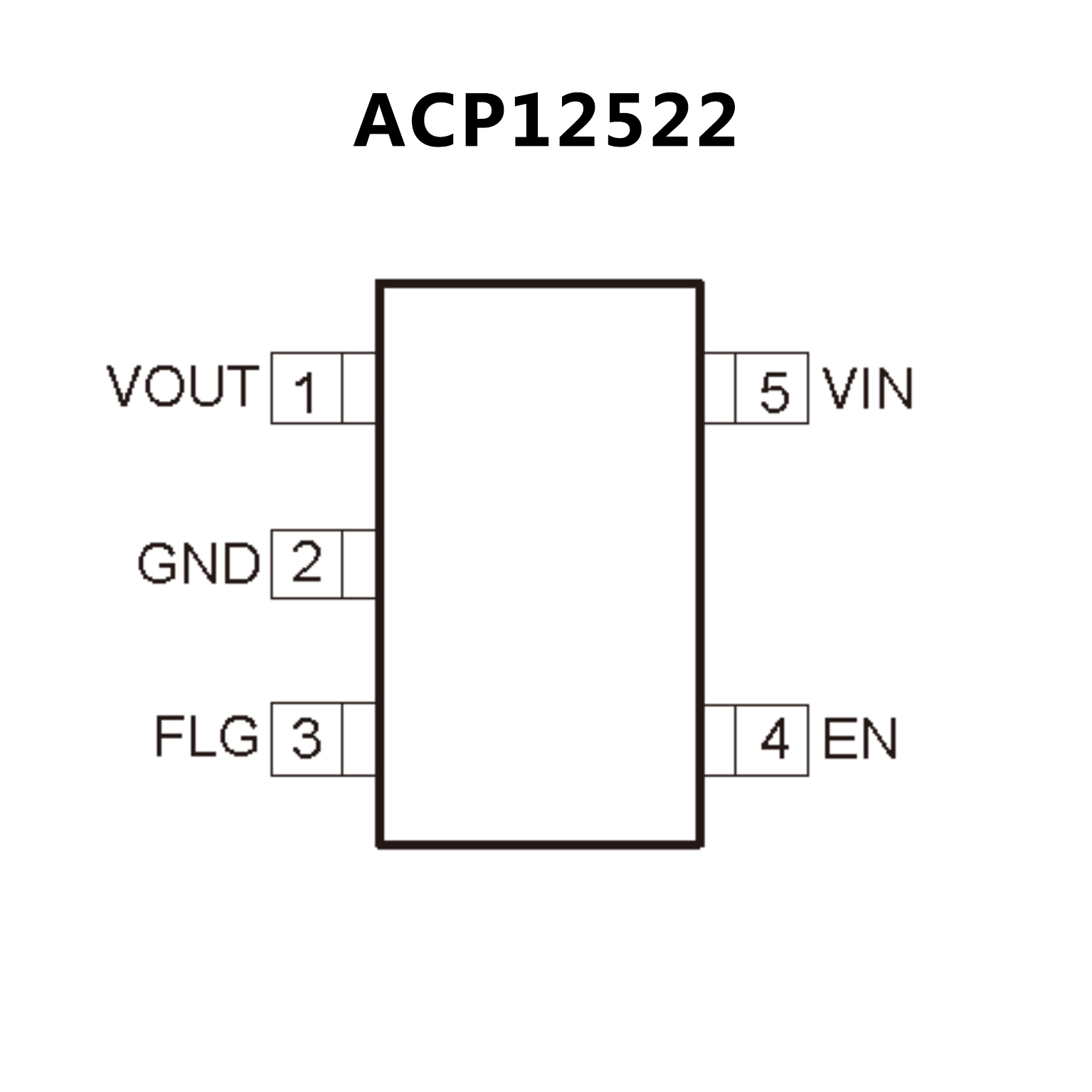

PIN CONFIGUTION
優勢替代
FEATURES
? 70mΩ/55mΩ (typ.) N-MOSFET Switch
? Operating Range : 2.7V to 6V
? Reverse Blocking Current
? Under Voltage Lockout
? Deglitched Fault Report (FLG)
? Thermal Protection with Fold-back
? Over Current Protection
? Short Circuit Protection
? UL Approved?E219878

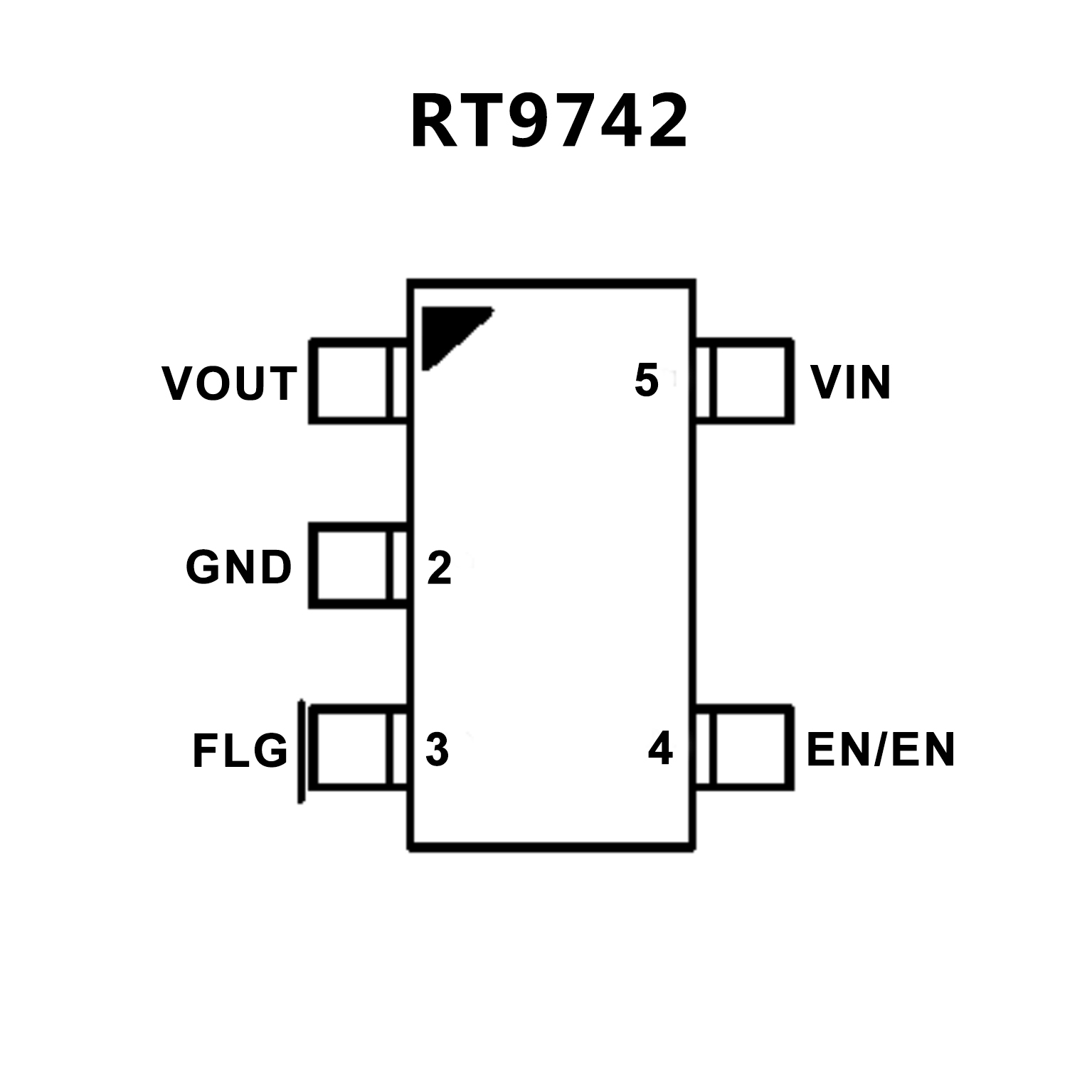

PIN CONFIGUTION
