Fast Ultra High-PSRR,Low-Noise,Low-Dropout,600mA Micropower CMOS Linear Regulator.
ACP1227.pdf優勢替代
FEATURES
? Miniature SOT-23-5 and SOT-23-6 packages
? 600mA guaranteed output current
? 75dB typical PSRR at 1kHz
? 30μV RMS output voltage noise (10Hz to 100kHz)
? 270mV typical dropout at 600mA
? 110μA typical quiescent current
? 1nA typical shutdown mode
? Fast line and load transient response
? 80μs typical fast turn-on time
? 2.5V to 5.5V input range
? Stable with small ceramic output capacitors
? Over temperature and over current protection
? ±2% output voltage tolerance

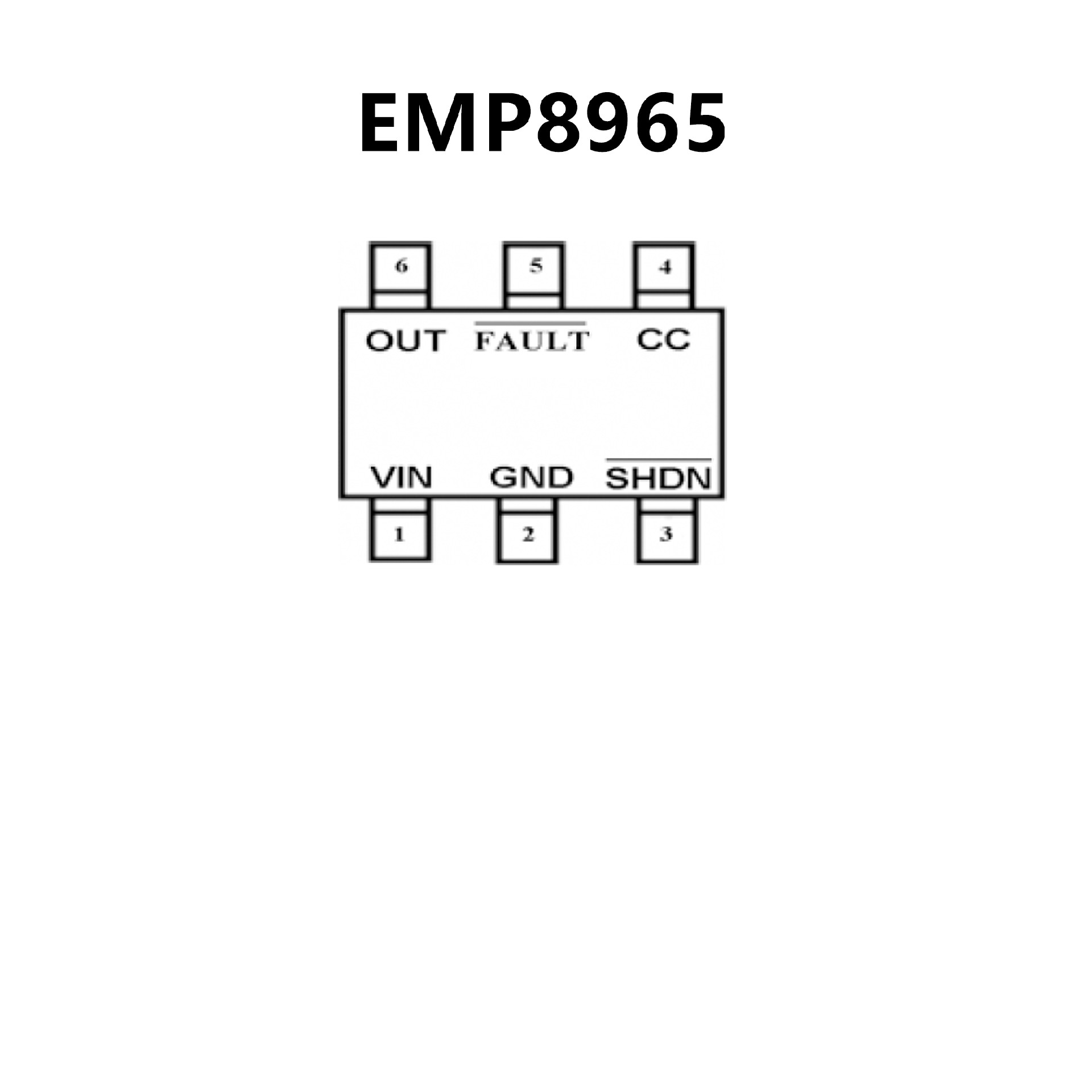

PIN CONFIGUTION
