3.3V, Octal Transceiver with Direction Pin and 3-State Outputs, 74LVTH245 Replace 74LVC245APW-118.
74LVTH245
74LVTH245.pdf
74LVTH245.pdfFEATURES
? Wide Operating Voltage Range: 2.7V to 3.6V
? Input and Output Interface Capability to
5V System Environment
? +64mA/-32mA Output Current
? 3-State Outputs Drive Bus Lines Directly
? Power-up and IOFF 3-State
? Bus Hold-on Data Inputs with No Need
for External Pull-up/Pull-down Resistors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TQFN-4.5×2.5-20L Package

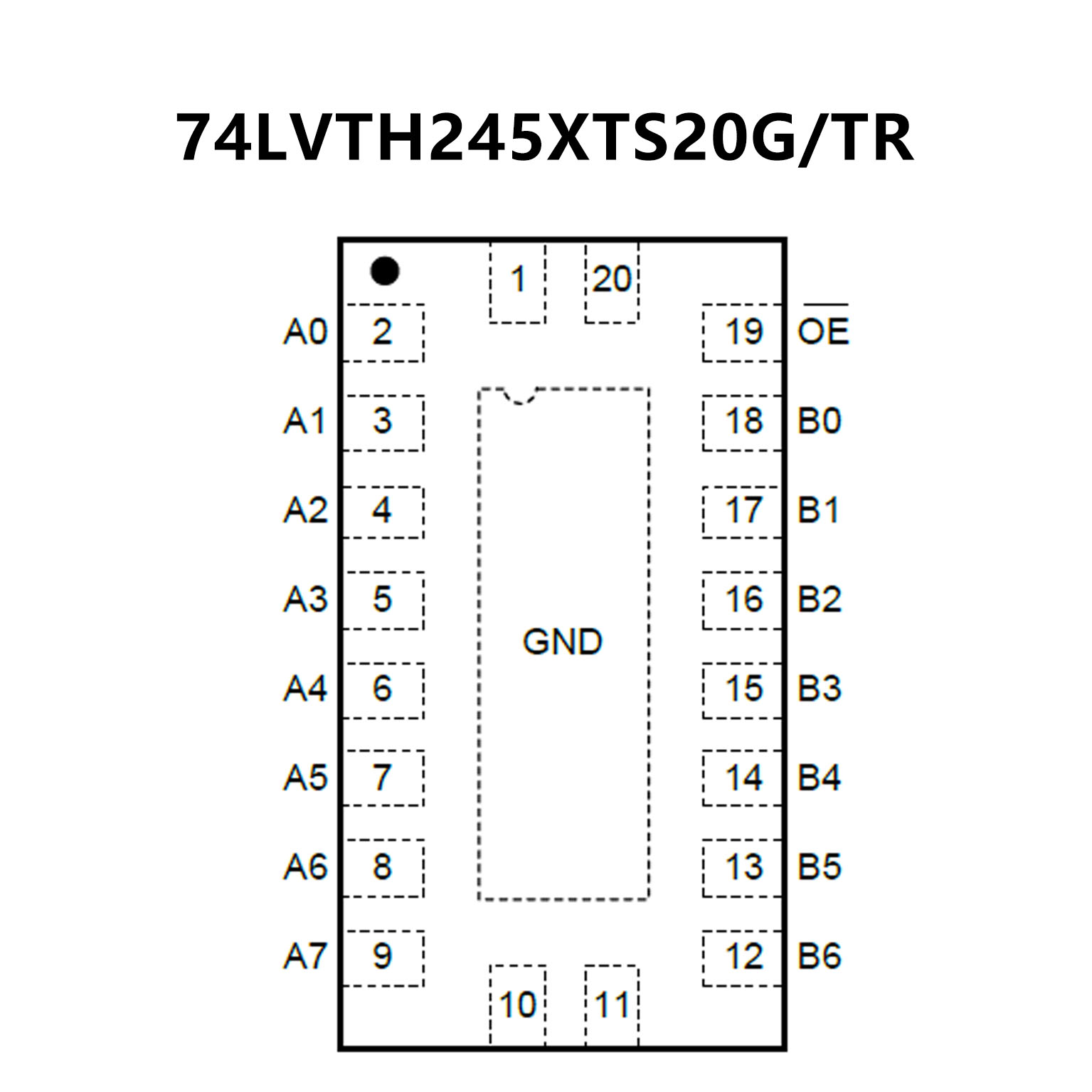

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Wide supply voltage range from 1.2V to 3.6V
? CMOS low-power consumption
? Direct interface with TTL levels
? Overvoltage tolerant inputs to 5.5V
? Bus hold on all data inputs (74LVCH245A only)
? IOFF circuitry provides partial Power-down
mode operation
? Complies with JEDEC standard:
? JESD8-7A (1.65V to 1.95V)
? JESD8-5A (2.3V to 2.7V)
? JESD8-C/JESD36 (2.7V to 3.6V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000V
? MM JESD22-A115B exceeds 200V
? CDM JESD22-C101E exceeds 1000V
? Specified from -40°C to +85°C and -40°C to +125°C

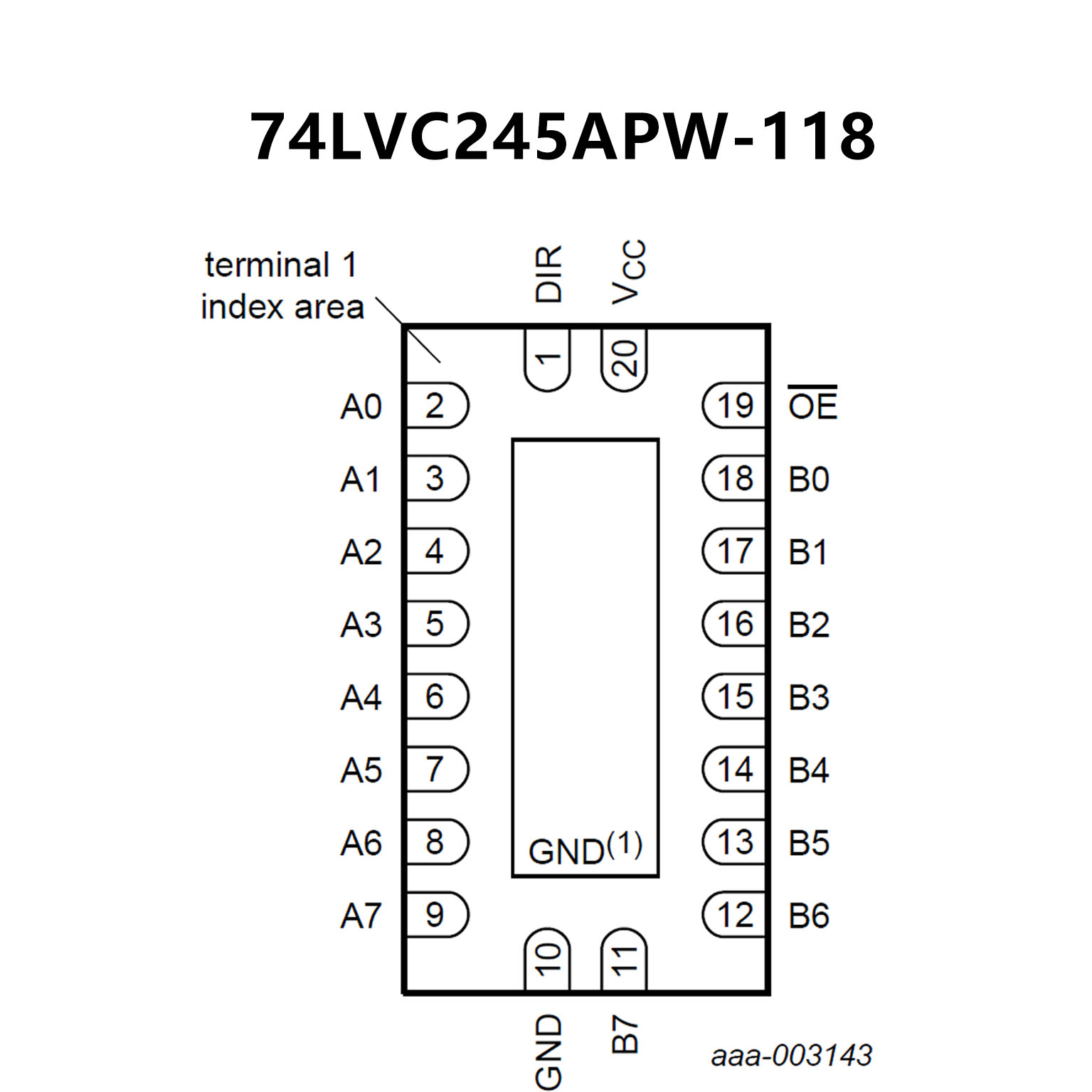

PIN CONFIGUTION
