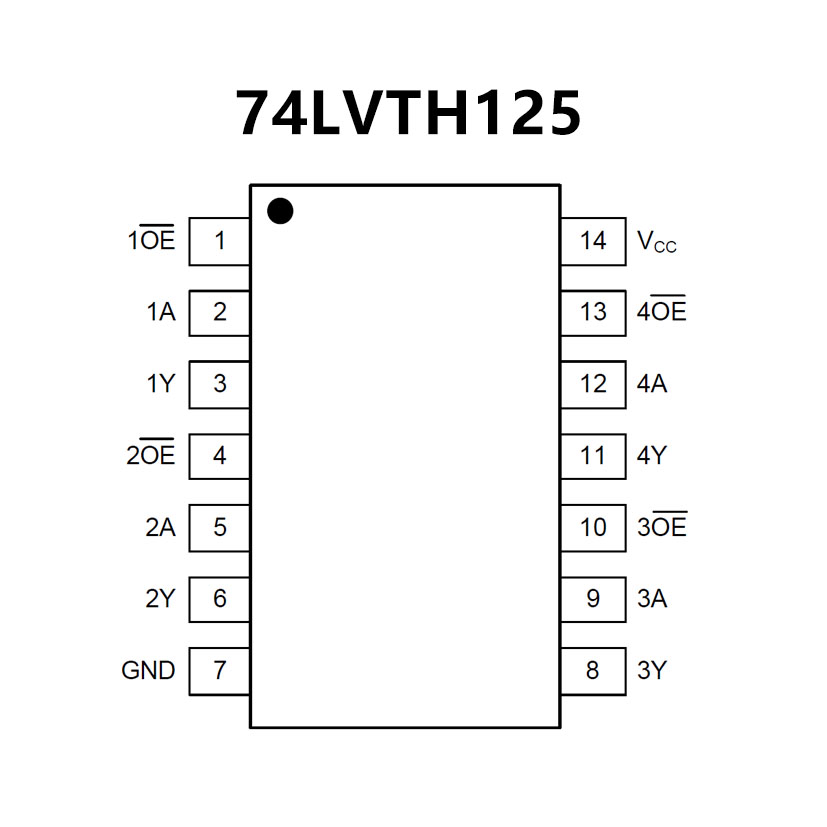

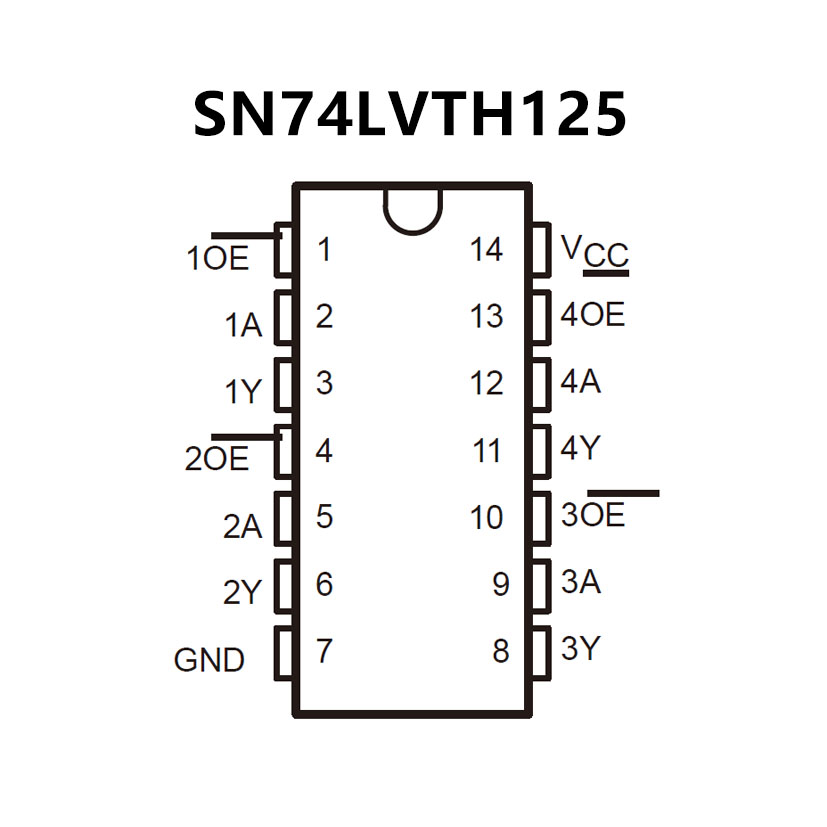

74LVTH125XS14G.pdf? Quad Bus Interface
? 3-State Buffers
? Output Capability: +64mA/-32mA
? TTL Input and Output Switching Levels
? Input and Output Interface Capability to
Systemsat 5V Supply
? Bus Hold on Data Inputs Eliminates
the Need forExternal Pull-Up/Pull-Down Resistors
? Live Insertion and Extraction Permitted
? Power-Up 3-State
? No Bus Current Loading When Output is Tied to5V Bus
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package
? Support Mixed-Mode Signal Operation (5-V
Input and Output Voltages With 3.3-V VCC)
? Support Unregulated Battery Operation
Down to 2.7 V
? Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
? Ioff and Power-Up 3-State Support Hot
Insertion
? Bus Hold on Data Inputs Eliminates the
Need for External Pullup/Pulldown
Resistors
? Latch-Up Performance Exceeds 500 mA Per
JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
