Octal buffer/line driver; 3 state，Replace 74LVC244ADB
74LVCN244XSS20G.pdf優(yōu)勢(shì)替代
FEATURES
? 5 V tolerant inputs/outputs for interfacing with 5 V logic
? Wide supply voltage range from 1.2 V to 3.6 V
? CMOS low-power consumption
? Direct interface with TTL levels
? Inputs accept voltages up to 5.5 V
? High-impedance when VCC = 0 V
? Bus hold on all data inputs (74LVCH244A only)
? Complies with JEDEC standard:
? JESD8-7A (1.65 V to 1.95 V)
? JESD8-5A (2.3 V to 2.7 V)
? JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115B exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Specified from ?40 ?C to +85 ?C and ?40 ?C to +125 ?C

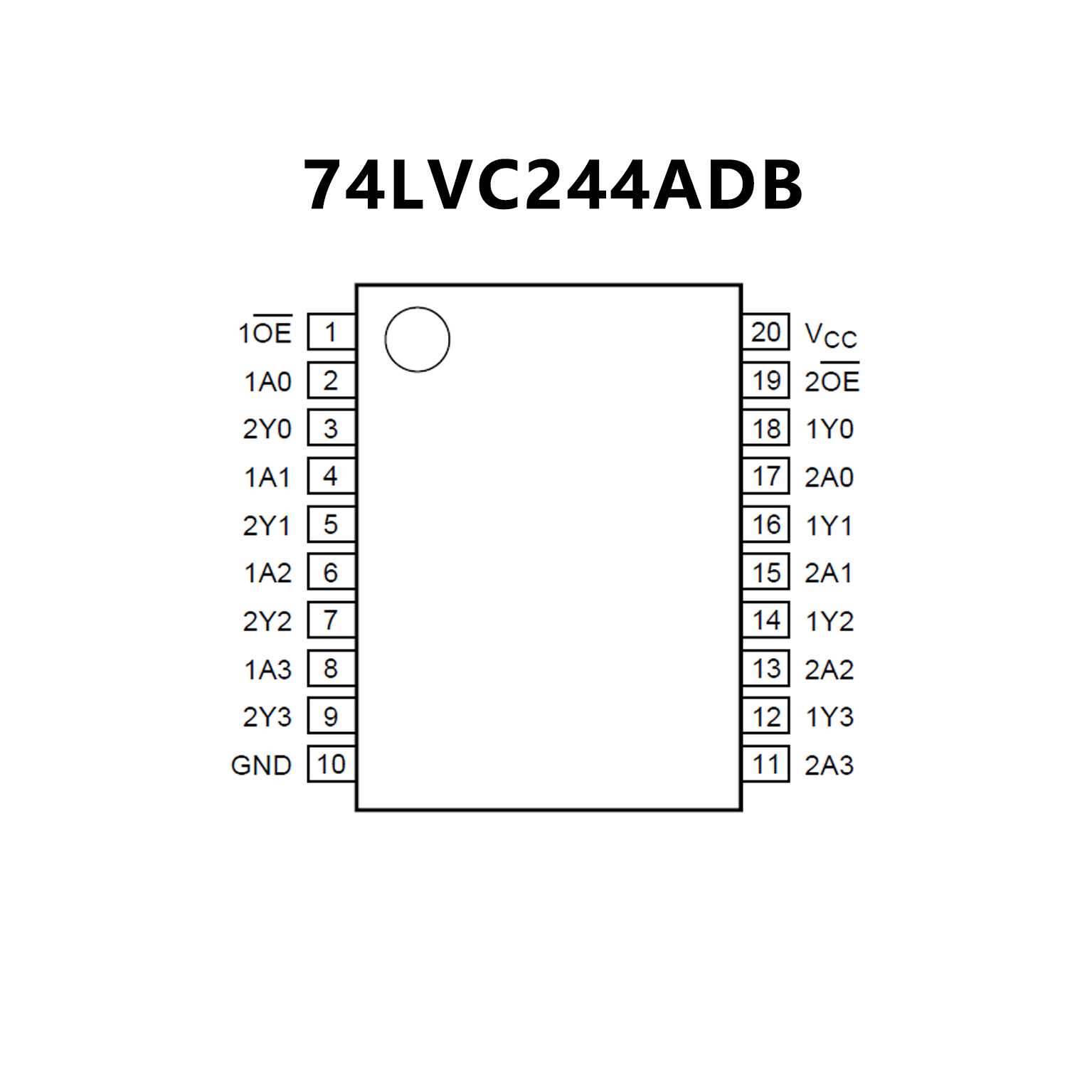

PIN CONFIGUTION
