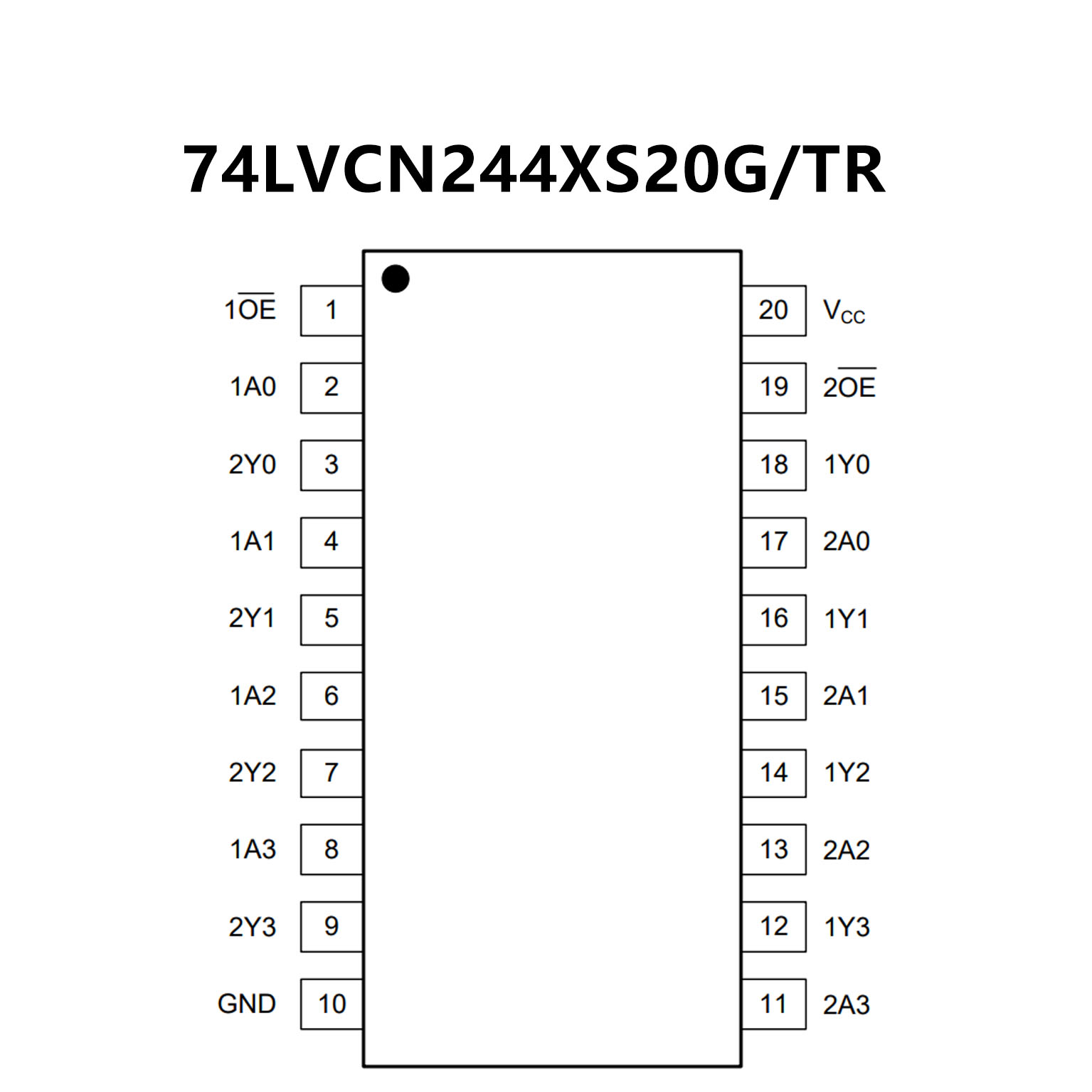

74LVCN244.pdf? 5V Tolerant Inputs/Outputs for Interfacing with
5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low-Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? High-Impedance When VCC = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-20 Package

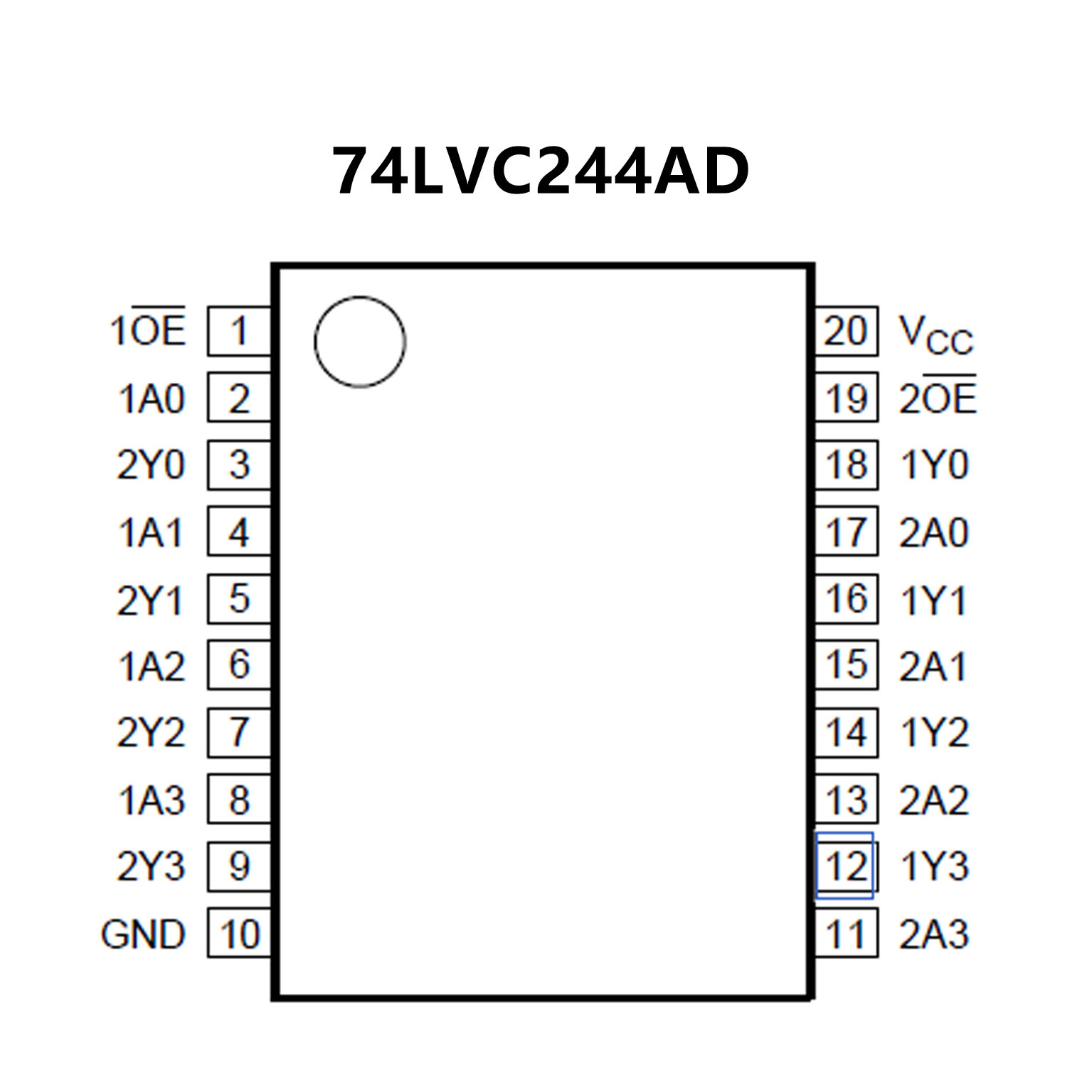

? Wide supply voltage range from 1.2 V to 3.6 V
? CMOS low-power consumption
? Direct interface with TTL levels
? Overvoltage tolerant inputs to 5.5 V
? IOFF circuitry provdes partial Power-down mode operation
? Bus hold on all data inputs (74LVCH244A only)
? Complies with JEDEC standard:
JESD8-7A (1.65 V to 1.95 V)
JESD8-5A (2.3 V to 2.7 V)
JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115B exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
